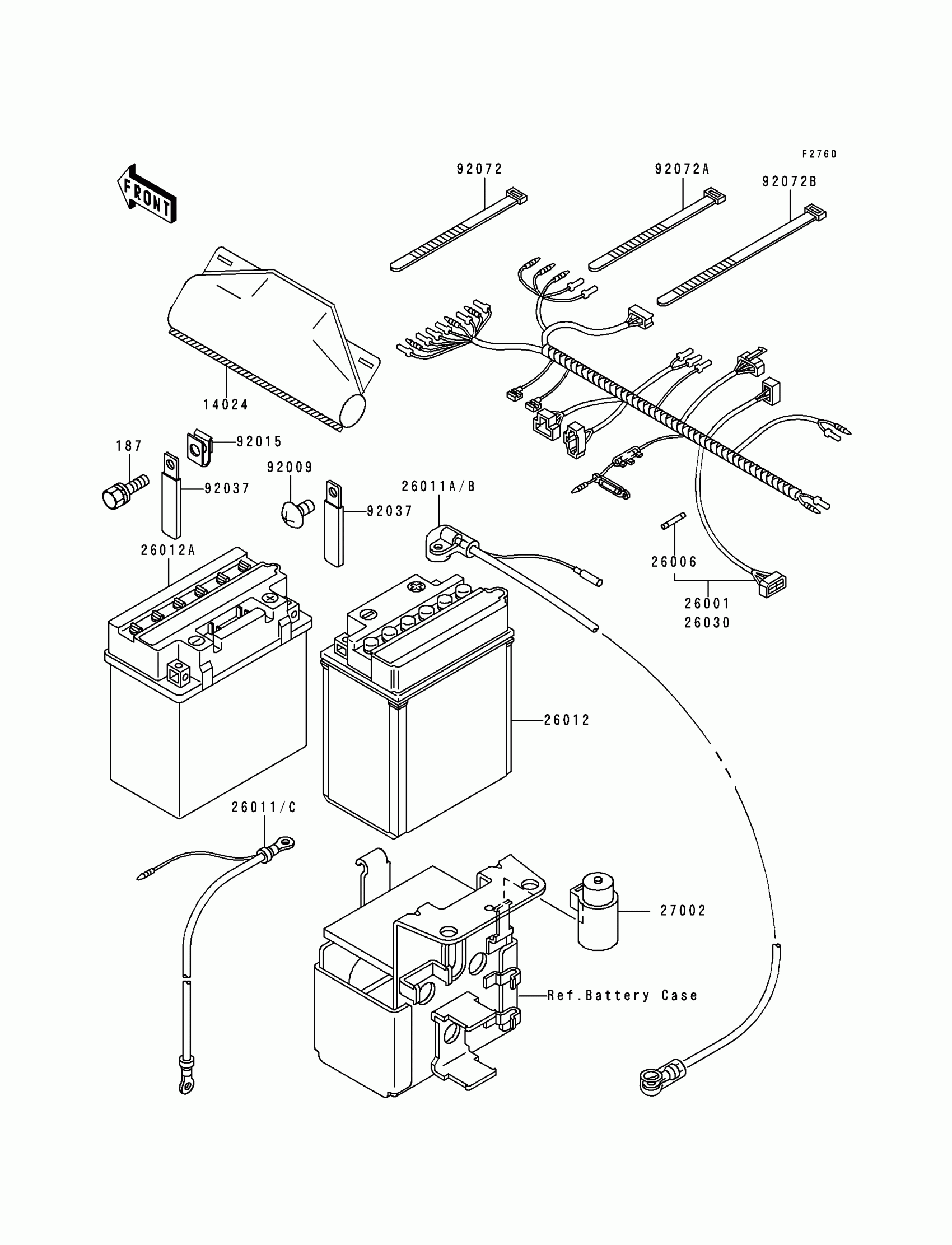

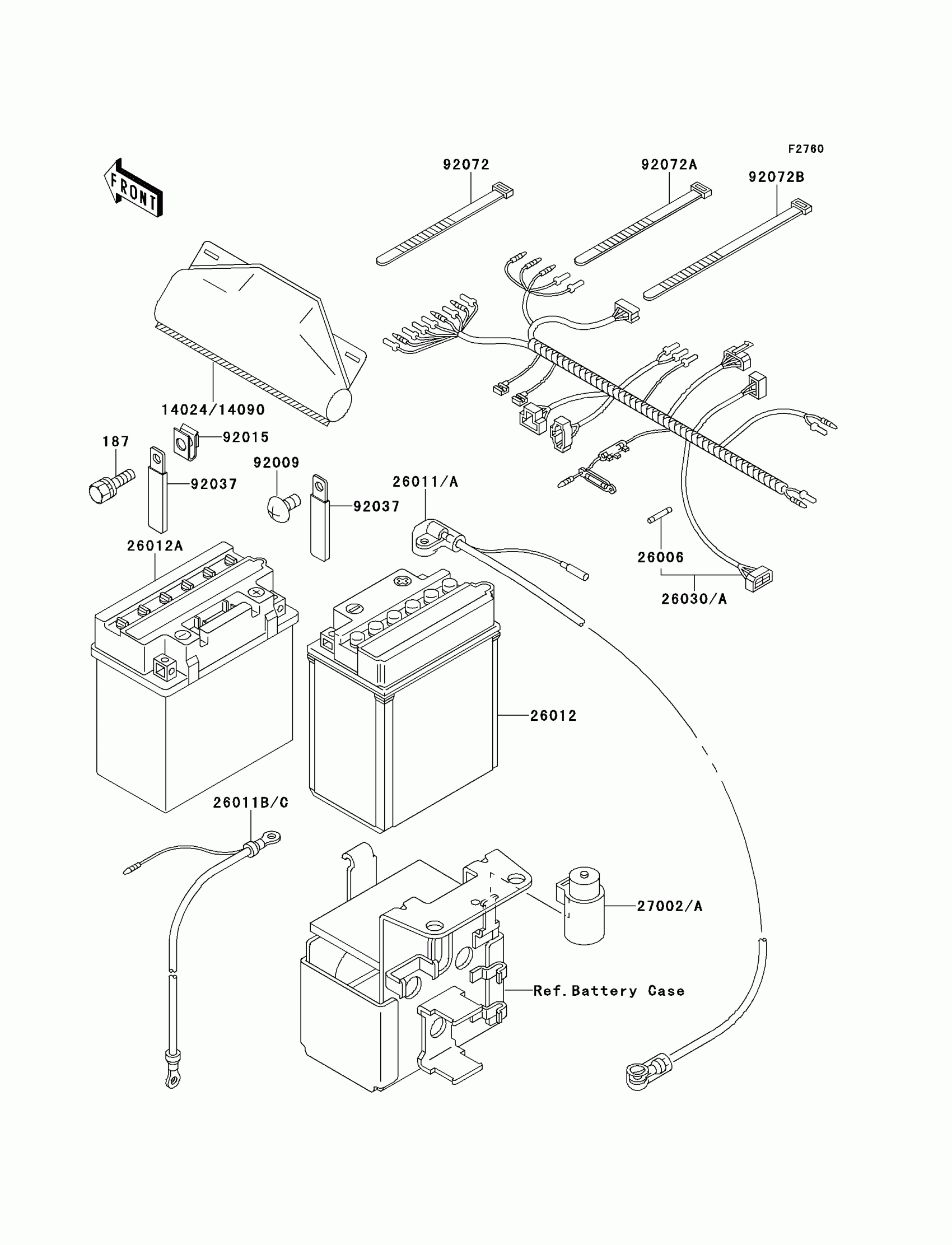

Kawasaki Bayou 300 4X4 Chassis Electrical Equipment Diagram

Description

Price

187

BOLT-UPSET-WSP

187C0614

Unavailable

14024

COVER,COUPLER

14024-1624

Unavailable

26006

FUSE,30A,L=30

26006-1059

Unavailable

26030

HARNESS,MAIN

26030-1060

Unavailable

92009

SCREW,TAPPING,4X8

92009-1155

$2.42

92015

NUT,6MM

92015-1671

$7.49

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=188

92072-1239

$1.30

26011

WIRE-LEAD,BATTERY(-)

26011-1303

$43.89

26011A

WIRE-LEAD,BATTERY(+)

26011-1418

$42.33

26011B

WIRE-LEAD,BATTERY(+)

26011-1517

Unavailable

26011C

WIRE-LEAD,BATTERY(-)

26011-1518

Unavailable

26012

BATTERY,12V 14AH,YB14A-A2

26012-1146

$81.06

26012A

BATTERY,YB16CL-B,12V 19AH

26012-1273

$126.40

27002

RELAY-ASSY

27002-1051

$48.39
