1992 Kawasaki Bayou 300 4X4 Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

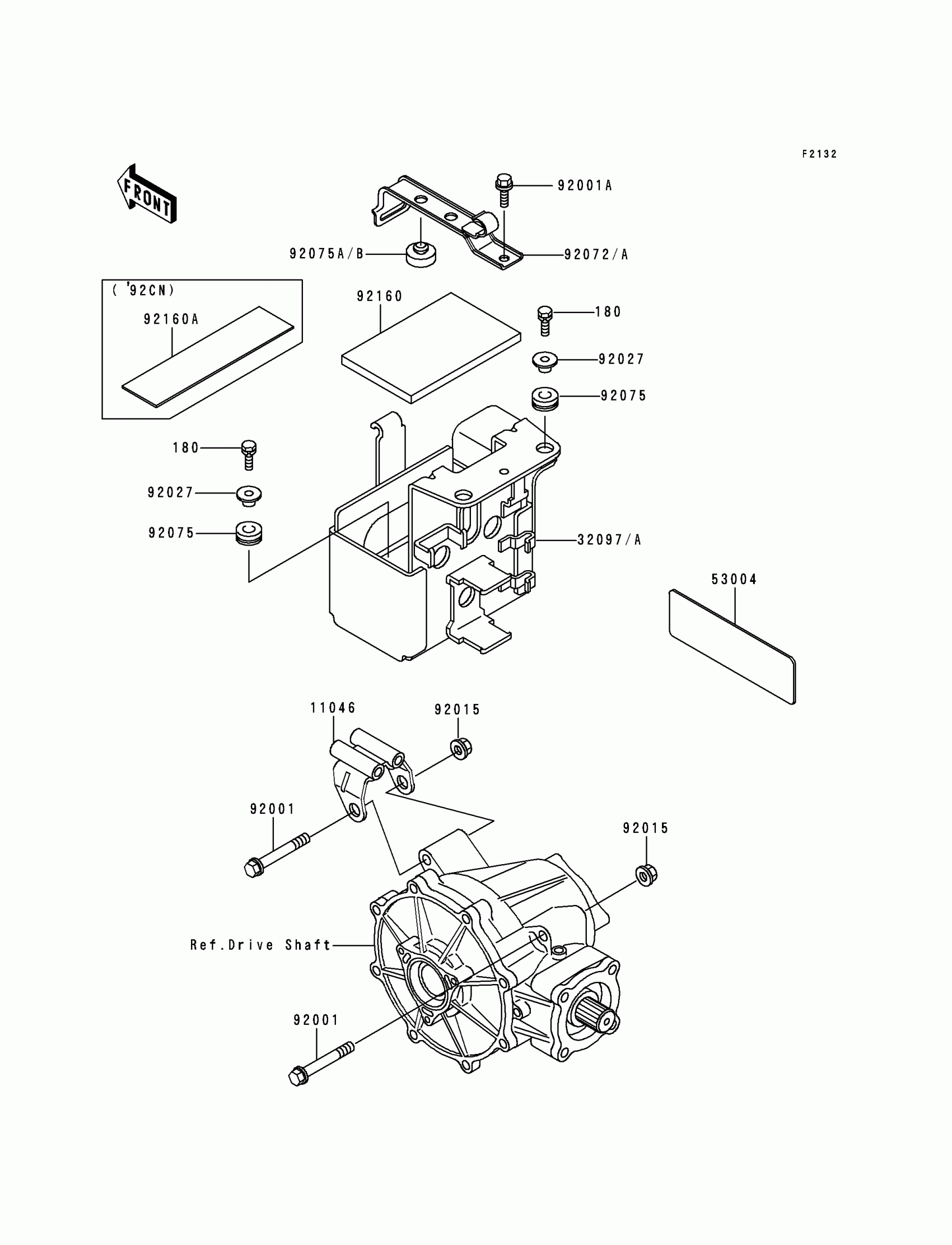

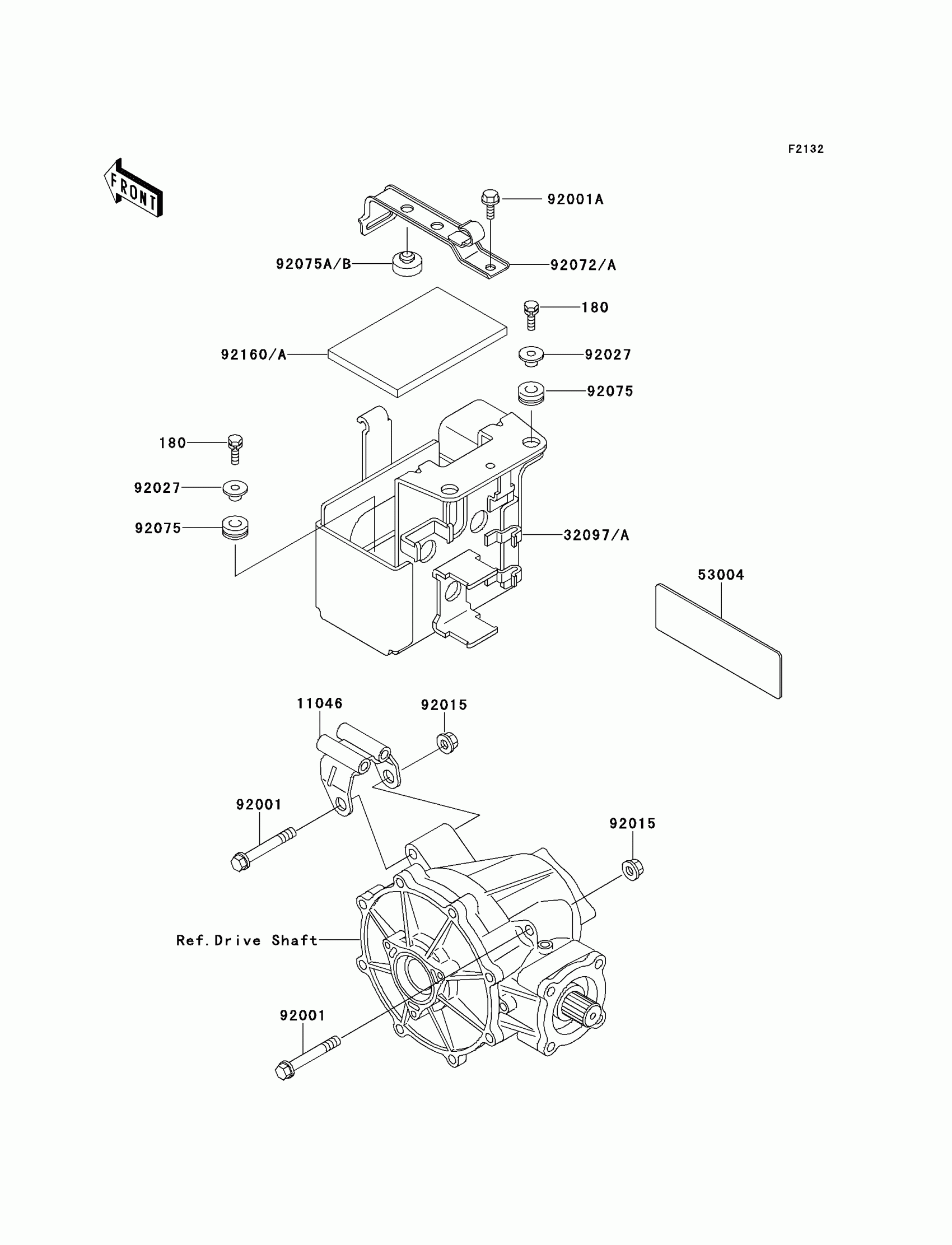

1992 Kawasaki Bayou 300 4X4 Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS

180D0620

1
Out of stock

11046

BRACKET,DIFF FITTING

11046-1221

1
Out of stock

53004

MAT

53004-1070

1

$10.93

In stock

92001

BOLT,FLANGED,10X70

92001-1618

1
Out of stock

92001A

BOLT,W/P,6X16

92001-1860

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92027

COLLAR

92027-1045

1
Out of stock

92075

DAMPER,FAN

92075-1167

1
Out of stock

32097

CASE-BATTERY

32097-1133

1
Out of stock

32097A

CASE-BATTERY

32097-1144

1
Out of stock

92072

BAND,BATTERY

92072-1230

1
Out of stock

92072A

BAND,BATTERY

92072-1290

1
Out of stock

92075A

DAMPER

92075-1876

1
Out of stock

92075B

DAMPER,9X24X14

92075-281

1
Out of stock

92160

DAMPER,BATTERY

92160-1100

1
Out of stock

92160A

DAMPER

92160-1266

1
Out of stock
