2010 Kawasaki Bayou® 250 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2010 Kawasaki Bayou® 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

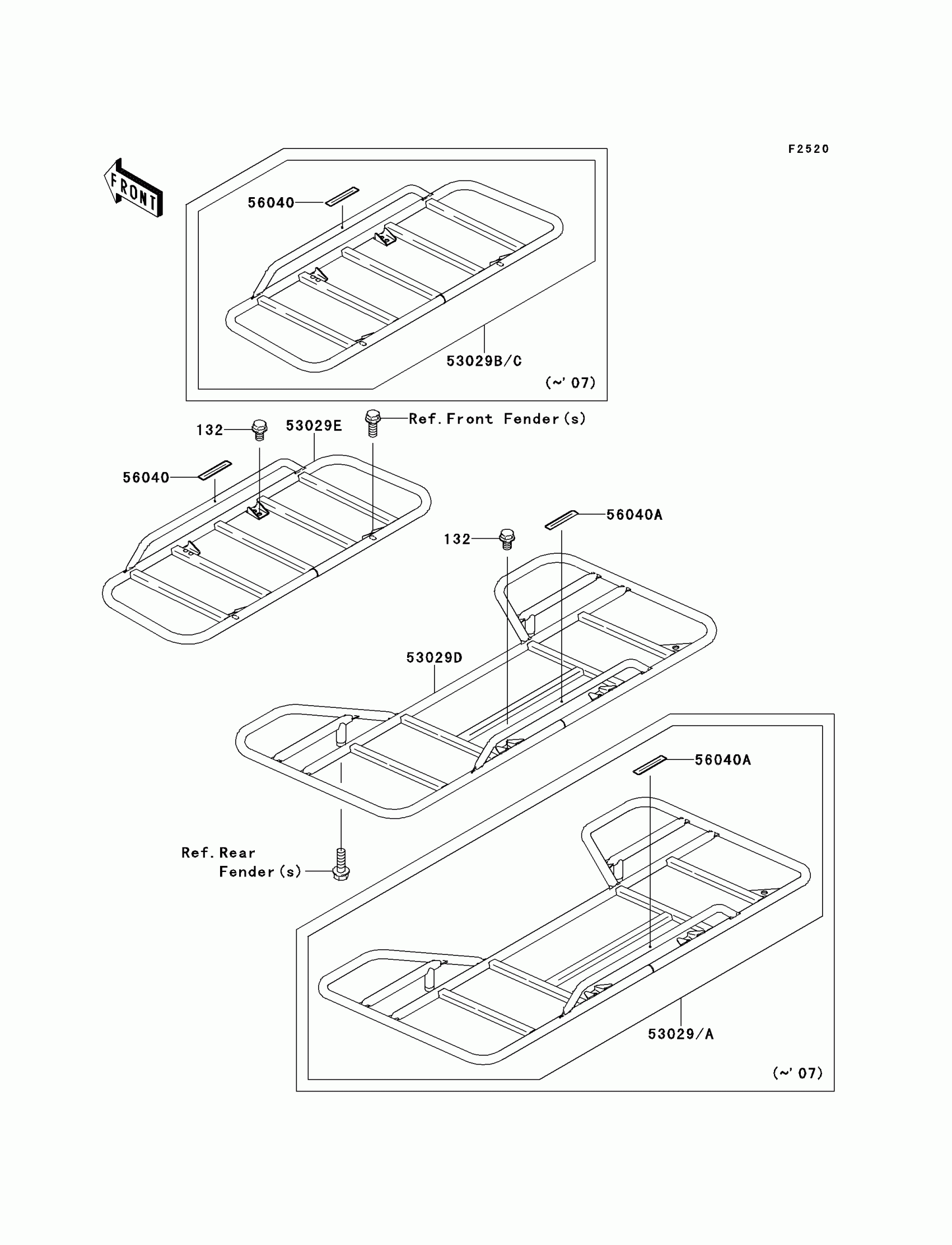

2010 Kawasaki Bayou® 250 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.03

In stock

53029D

CARRIER,RR,T.BLACK

53029-1260-388

1

$209.49

In stock

53029E

CARRIER,FR,T.BLACK

53029-1261-388

1

$120.02

In stock

56040

1

$2.03

In stock

56040A

1

$2.03

In stock
