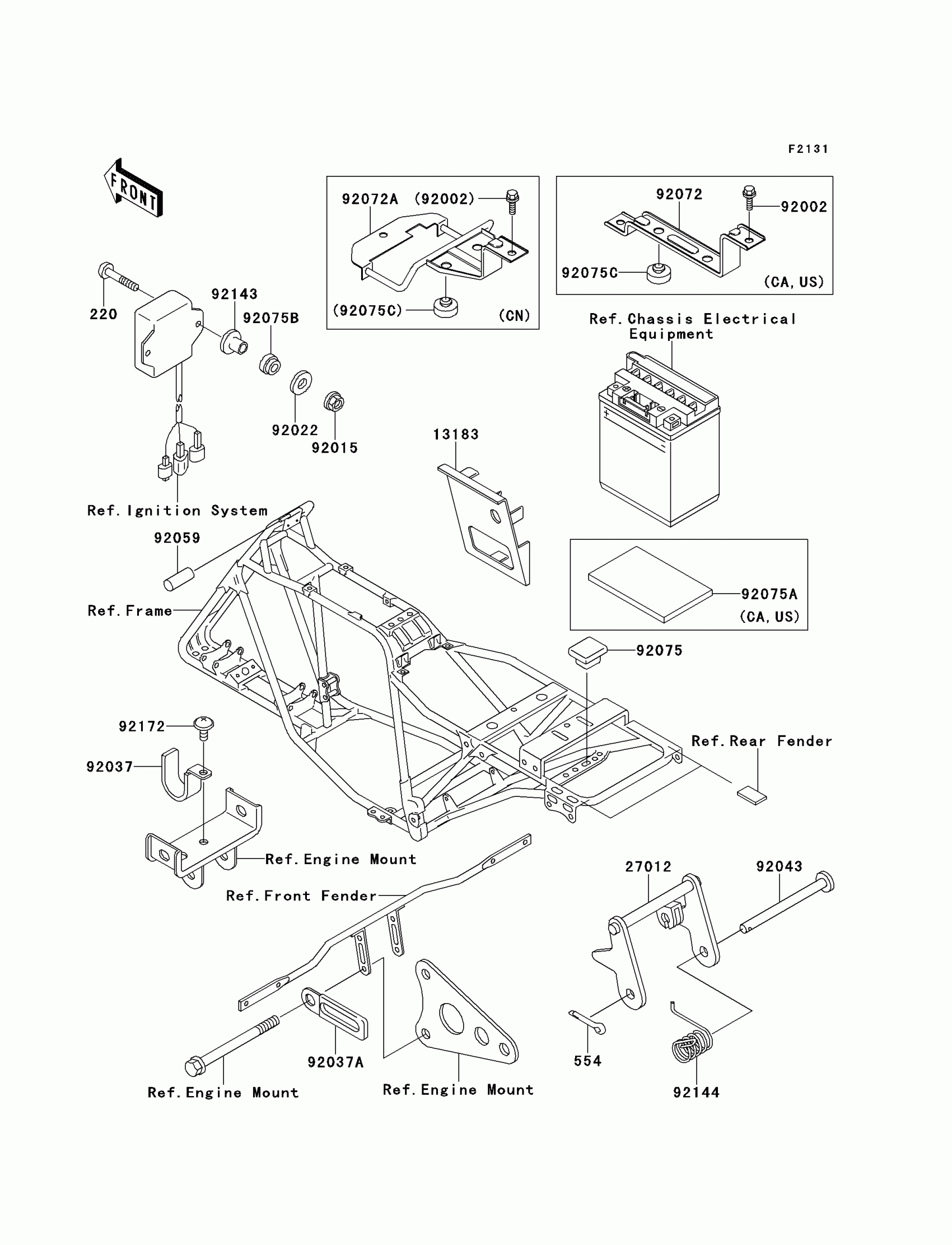

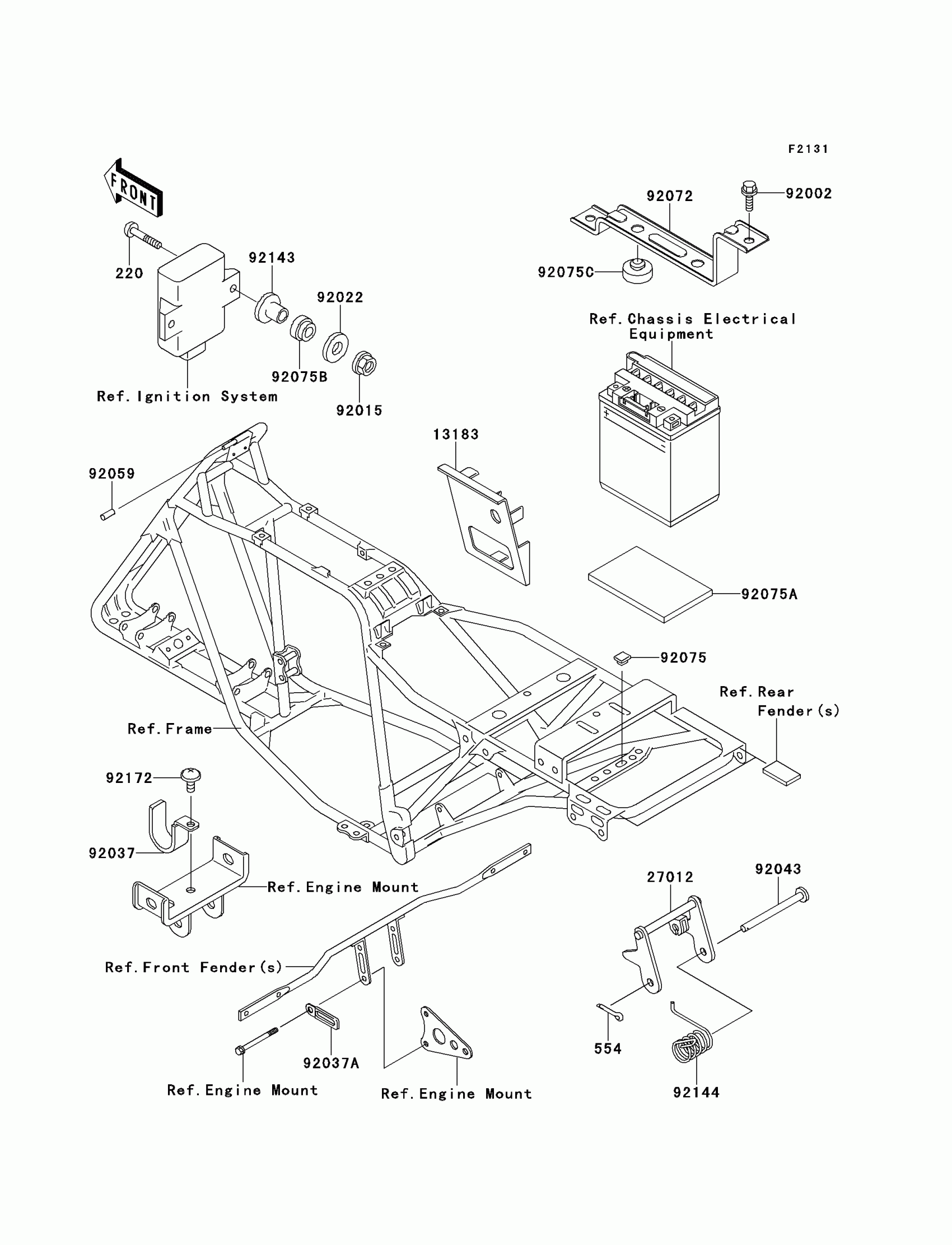

Kawasaki Bayou 250 Frame Fittings Diagram

Description

Price

220

SCREW PAN HEAD 6X25

220B0625

Unavailable

554

PIN,SNAP

554A0600

Unavailable

13183

PLATE,ELECTRIC BASE

13183-1134

Unavailable

27012

HOOK,SEAT

27012-1381

$36.50

92002

BOLT,6X14

92002-1351

$3.29

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92037

CLAMP

92037-1700

$4.93

92037A

CLAMP

92037-1780

$5.71

92043

PIN,6X77

92043-1367

$7.64

92059

TUBE,3X8X40

92059-1901

$3.88

92075

DAMPER

92075-099

$4.18

92075B

DAMPER RUBBER

92075-208

$4.42

92075C

DAMPER,9X24X14

92075-281

$4.67

92143

COLLAR,L=9.6

92143-1016

$4.67

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92172

SCREW,6X14

92172-0004

$1.98

92072

BAND,BATTERY

92072-1222

$13.54

92072A

BAND,BATTERY

92072-1292

Unavailable

92075A

DAMPER,BATTERY

92075-1997

$8.75
