2010 Kawasaki Bayou® 250 Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2010 Kawasaki Bayou® 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

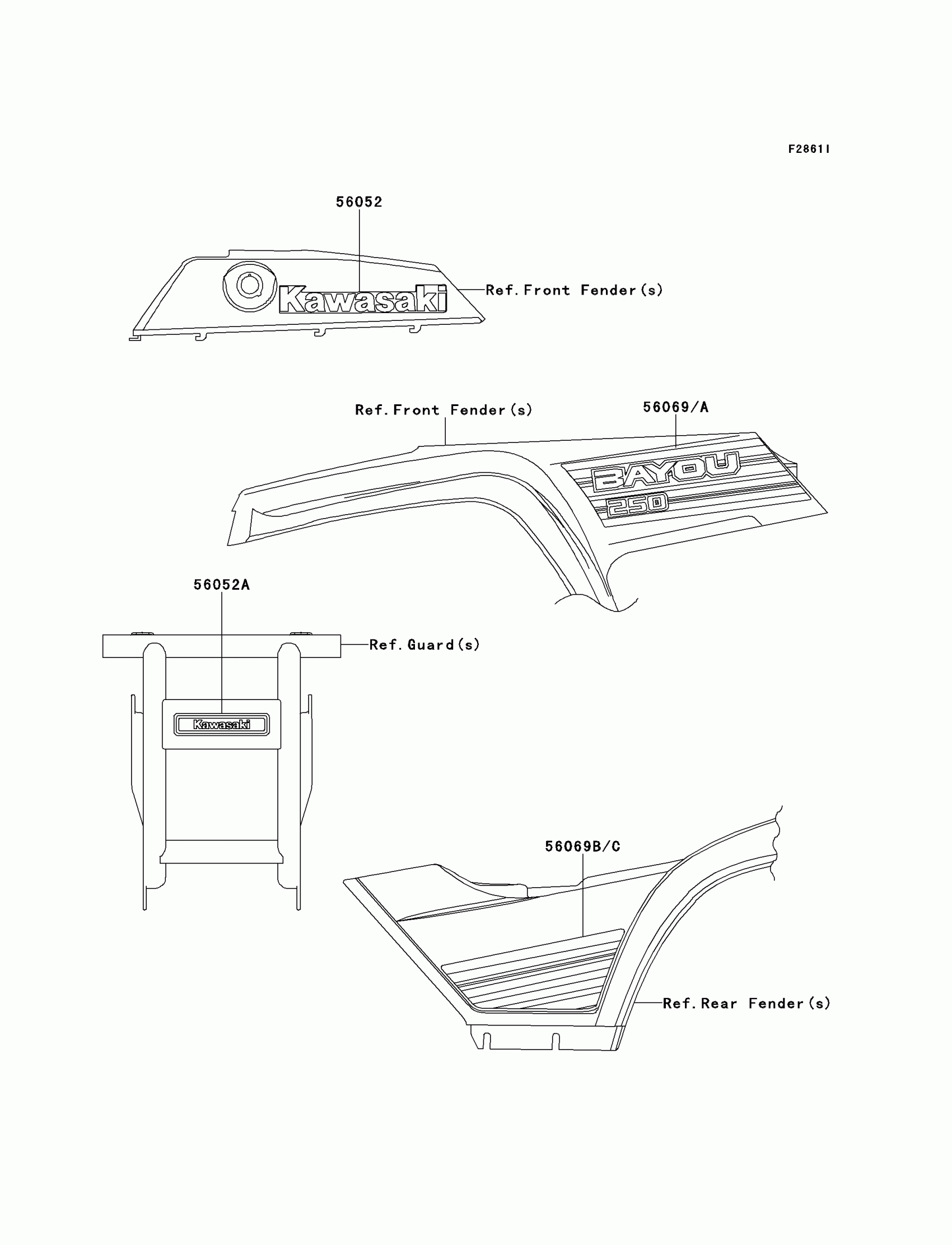

2010 Kawasaki Bayou® 250 Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56052

MARK,KAWASAKI

56052-0881

1
Out of stock

56052A

MARK,FRONT GUARD,KAWASAKI

56052-1682

1
Out of stock

56069

PATTERN,FR FENDER,LH

56069-0127

1
Out of stock

56069A

PATTERN,FR FENDER,RH

56069-0128

1
Out of stock

56069B

PATTERN,RR FENDER,LH

56069-0129

1
Out of stock

56069C

PATTERN,RR FENDER,RH

56069-0130

1
Out of stock

130

BOLT-FLANGED,8X12

130BB0812

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0500

1
Out of stock

410A

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

21150

CORD-ASSY,SPEEDOMETER

21150-1062

1
Out of stock

25008

BRACKET-METER

25008-1168

1
Out of stock

25008A

BRACKET-METER

25008-1169

1
Out of stock

25031

METER-ASSY,SPEED,MPH

25031-1234

1
Out of stock

41060

GEAR-METER SCREW

41060-1117

1
Out of stock

54001

CABLE-SPEEDOMETER

54001-1165

1
Out of stock

92015

NUT,LOCK,5MM

92015-1221

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92055

RING-O,ID=13.8

92055-1141

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92075

DAMPER

92075-1409

1
Out of stock

92087

BUSHING-METER GEAR

92087-1054

1
Out of stock

92143

COLLAR,5.5X10X8.5

92143-1235

1
Out of stock

99999

KIT.,SPEEDOMETER,MPH

99999-1065

1
Out of stock
