2005 Kawasaki Bayou 250 Front Fender Diagram

← All diagrams

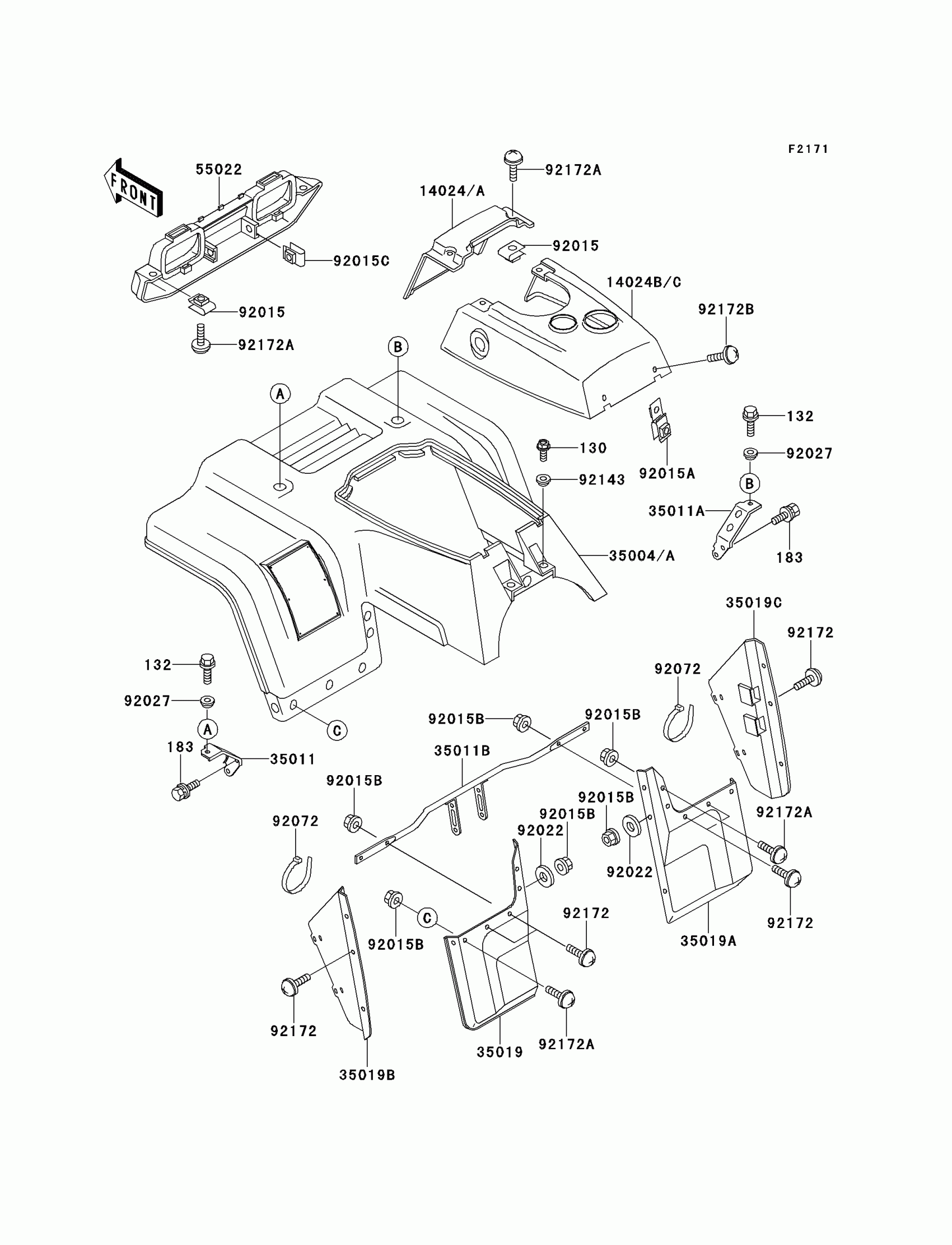

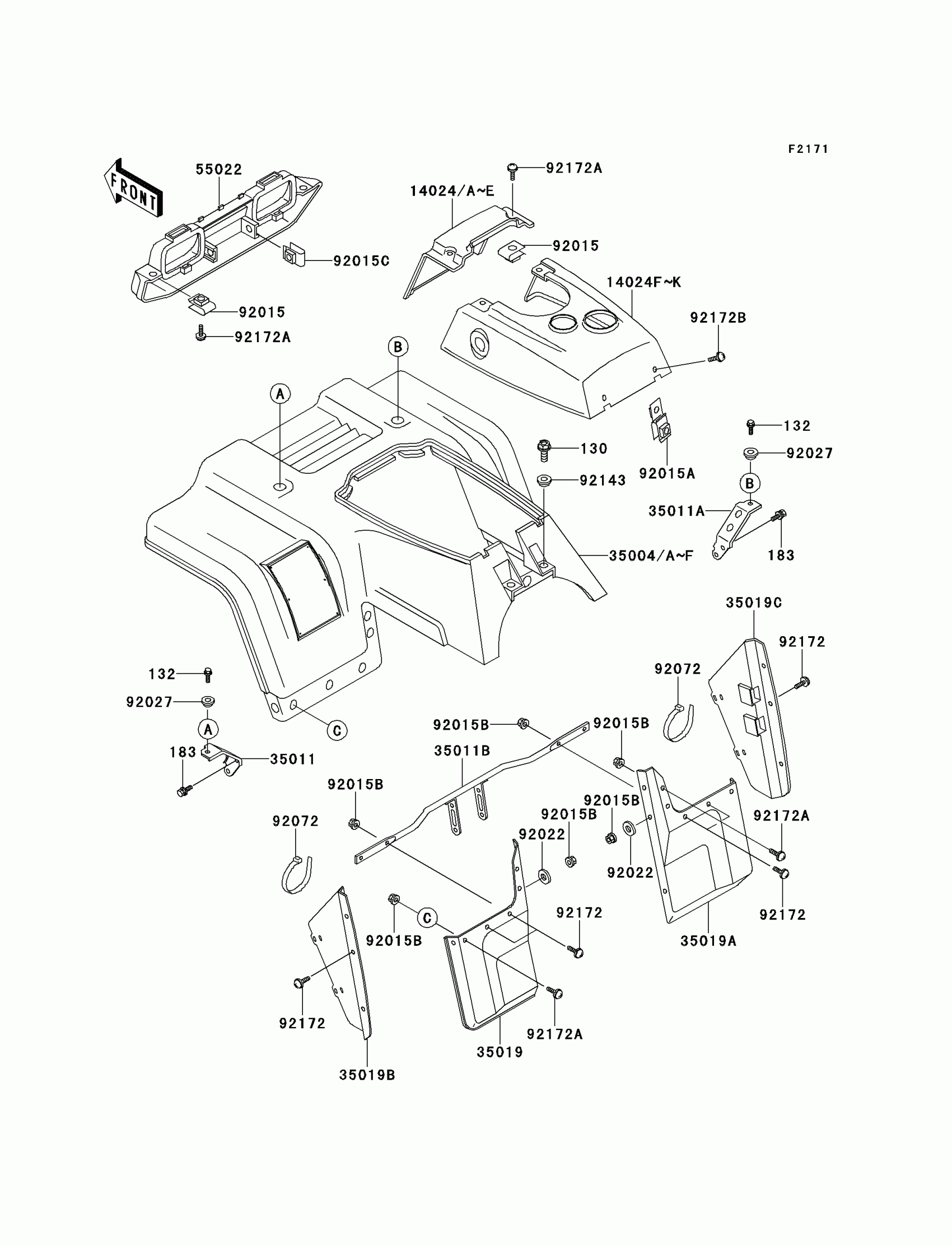

Find the part on the Front Fender diagram for your 2005 Kawasaki Bayou 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Bayou 250 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130C0616

1
Out of stock

132

BOLT-FLANGED-SMALL,8X20

132J0820

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183J0814

1
Out of stock

14024

COVER,FRONT FENDER,FR,A.RED

14024-1475-260

1
Out of stock

14024A

COVER,FRONT FENDER,FR,H.GREEN

14024-1475-6A

1
Out of stock

14024B

COVER,FRONT FENDER,RR,A.RED

14024-1476-260

1
Out of stock

14024C

COVER,FRONT FENDER,RR,H.GREEN

14024-1476-6A

1
Out of stock

35004

FENDER-FRONT,A.RED

35004-1380-260

1
Out of stock

35004A

FENDER-FRONT,H.GREEN

35004-1380-6A

1
Out of stock

35011

STAY,FRONT FENDER,LH

35011-1361

1
Out of stock

35011A

STAY,FRONT FENDER,RH

35011-1362

1
Out of stock

35011B

STAY,FRONT FLAP

35011-1368

1
Out of stock

35019

FLAP,FR,LH

35019-1195

1
Out of stock

35019A

FLAP,FR,RH

35019-1196

1
Out of stock

35019B

FLAP,FR,INSIDE,LH

35019-1197

1
Out of stock

35019C

FLAP,FR,INSIDE,RH

35019-1198

1
Out of stock

55022

COVER-HEAD LAMP,BLACK

55022-1060-6D

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT,PLATE

92015-1667

1
Out of stock

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92015C

NUT,CLIP,8MM

92015-1691

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1804

1
Out of stock

92027

COLLAR

92027-1908

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92143

COLLAR,L=6.5

92143-1025

1
Out of stock

92172

SCREW,6X18

92172-0002

1
Out of stock

92172A

SCREW,6X14

92172-0004

1
Out of stock

92172B

SCREW,6X10

92172-0005

1
Out of stock
