2005 Suzuki AN650 Water Pump Diagram

← All diagrams

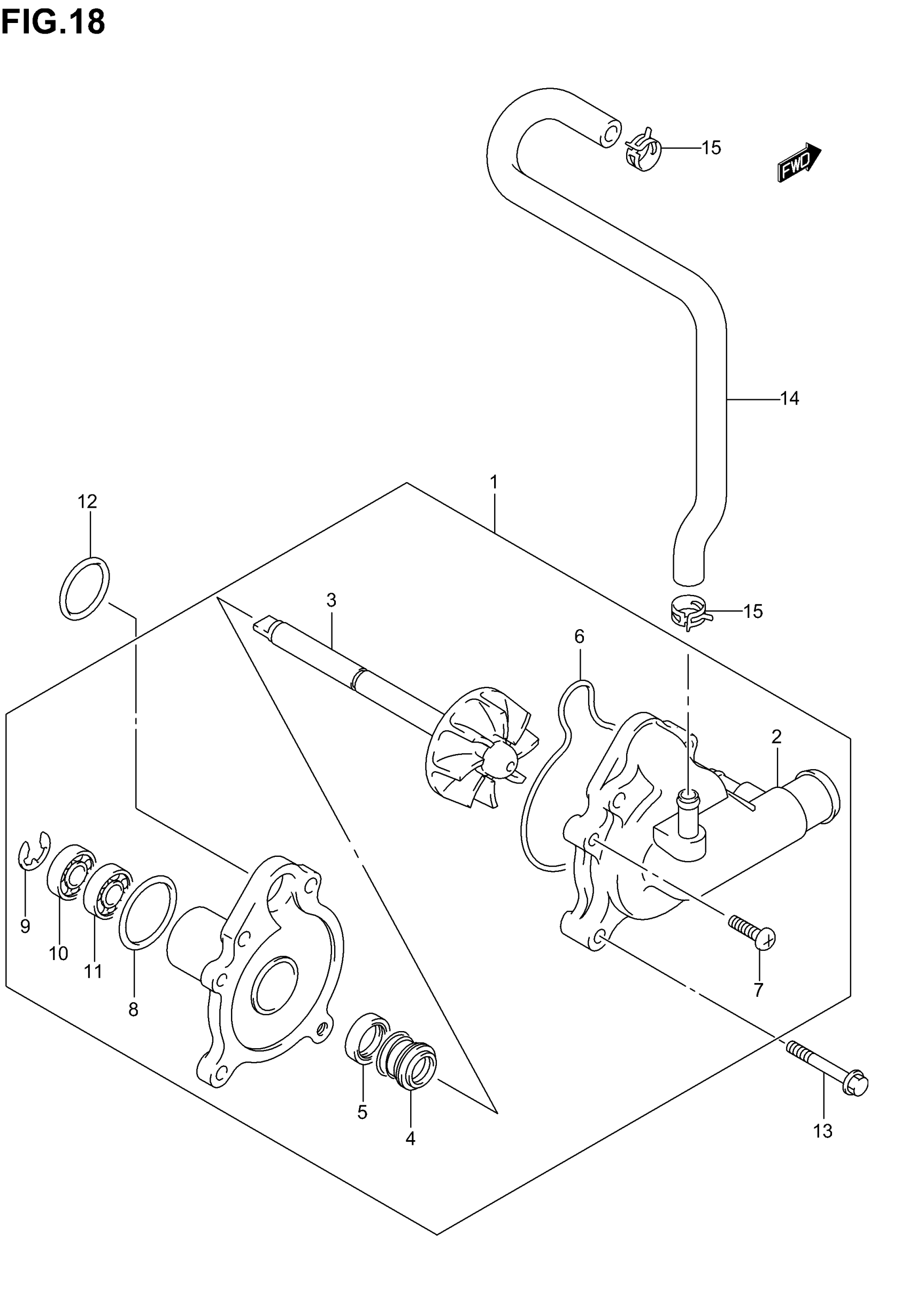

Find the part on the Water Pump diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki AN650 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

COVER

17411-10G00

1
Out of stock

3

IMPELLER

17491-10G00

1

$82.38

In stock

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

5

SEAL, OIL

17419-29F00

1

$10.16

In stock

6

O RING

17418-10G00

1

$14.47

In stock

7

SCREW This part replaces 02112-06163.

02112-0616A

2
Out of stock

8

O RING

17435-40F00

1

$6.16

In stock

9

1

$1.96

In stock

10

BEARING

08110-69000

1

$18.99

In stock

11

BEARING

08110-68000

1

$26.50

In stock

12

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

13

3

$2.92

In stock

14

HOSE, WATER BYPASS

17856-10G00

1

$28.58

In stock

15

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock
