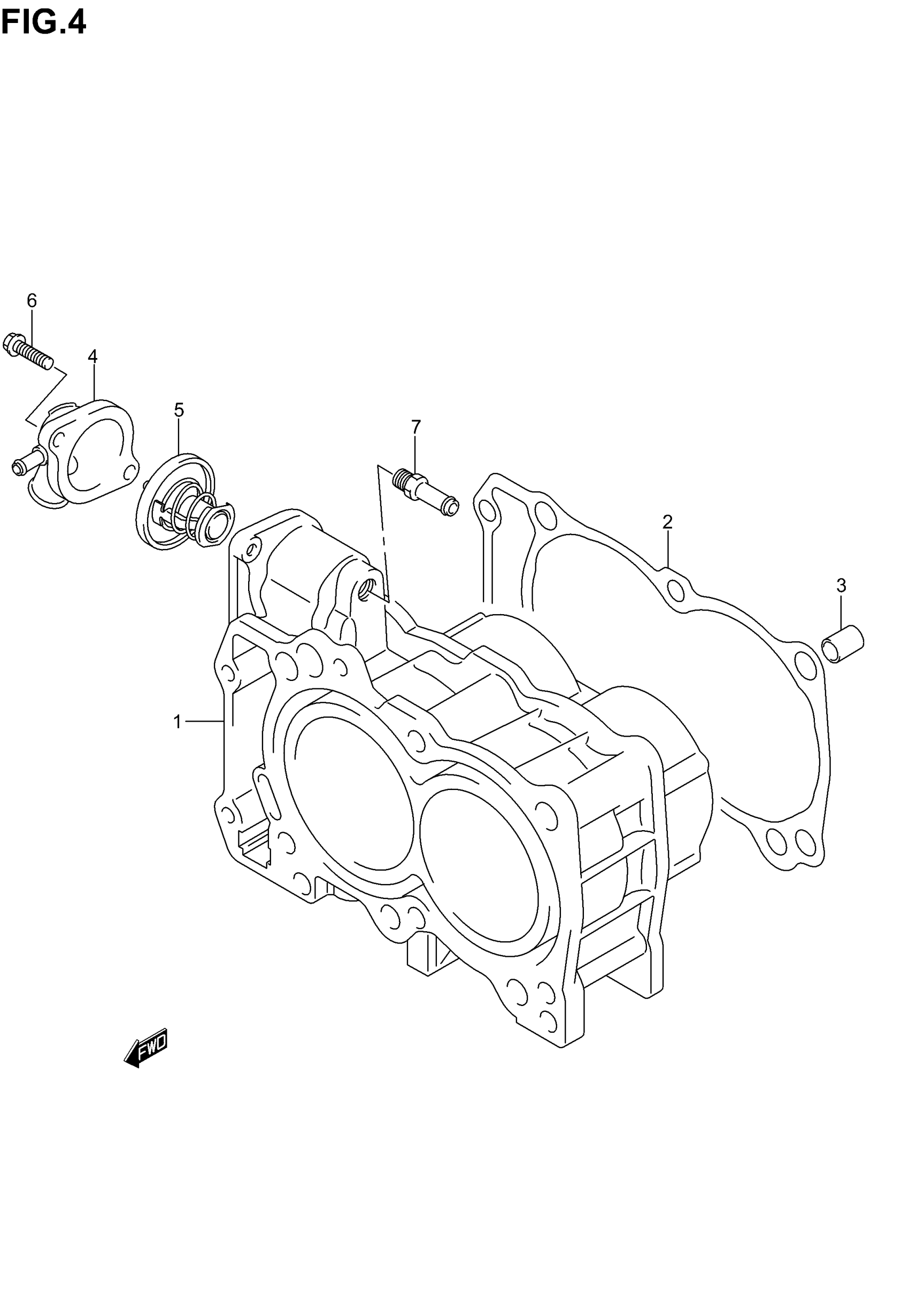

Suzuki AN650 (2005) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL K3/K4

11210-10G00-0F0

Unavailable

1

CYLINDER | MODEL K5

11211-10GA0-0F0

Unavailable

2

GASKET, CYLINDER

11241-10G00

$23.28

3

PIN, CYLINDER KNOCK

04211-13189

$2.25

4

COVER, THERMOSTAT

17661-10G00

$41.70

5

THERMOSTAT, WATER | MODEL K3

17670-06G30

Unavailable

5

THERMOSTAT,WATER | MODEL K4/K5 This part replaces 17670-06G50.

17670-06G51

$24.64

6

..BOLT This part replaces 01547-06203.

01547-0620B

$2.50

7

UNION, BYPASS

09362-09011

$7.84
