2005 Suzuki AN650 Cam Shaft/valve Diagram

← All diagrams

Find the part on the Cam Shaft/valve diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

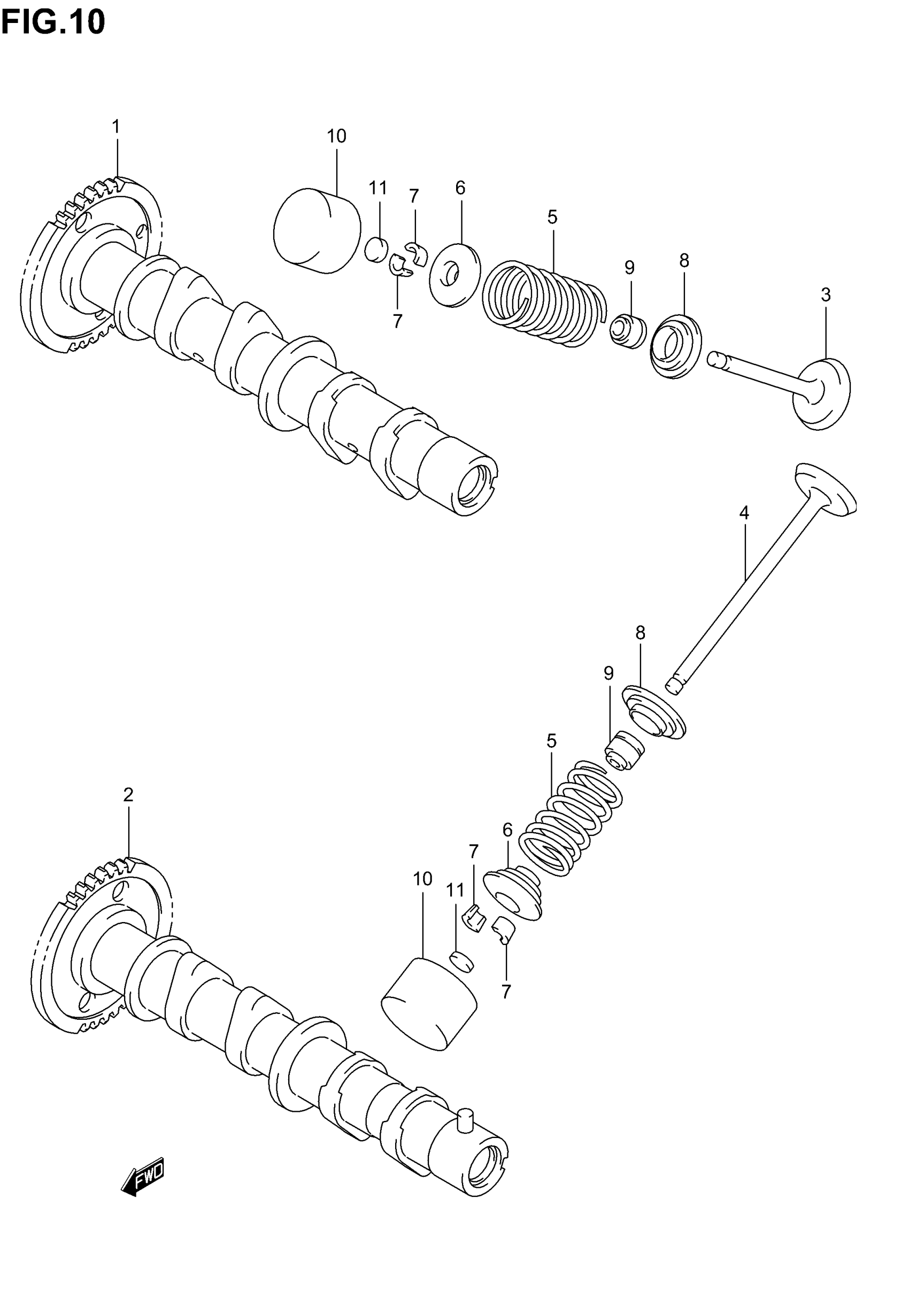

2005 Suzuki AN650 Cam Shaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT, INTAKE

12710-10G00

1
Out of stock

2

CAMSHAFT, EXHAUST

12720-10G00

1
Out of stock

3

VALVE, INTAKE

12911-10G00

4
Out of stock

4

VALVE, EXHAUST

12912-10G00

4
Out of stock

5

SPRING, VALVE

12922-13E00

8
Out of stock

6

RETAINER,VALVE SPRING

12931-10G00

8
Out of stock

7

COTTER, VALVE

12932-32C00

16
Out of stock

8

SEAT,VALVE SPRING

12933-39E00

8
Out of stock

9

SEAL, VALVE STEM OIL

09289-04002

8
Out of stock

10

TAPPET This part replaces 12891-17E00.

12891-47H00

8
Out of stock

11

SHIM, TAPPET

12892-05C00-120

8
Out of stock

11

SHIM, TAPPET

12892-05C00-125

8
Out of stock

11

SHIM, TAPPET

12892-05C00-130

8
Out of stock

11

SHIM, TAPPET

12892-05C00-135

8
Out of stock

11

SHIM, TAPPET

12892-05C00-140

8
Out of stock

11

SHIM, TAPPET

12892-05C00-145

8
Out of stock

11

SHIM, TAPPET

12892-05C00-150

8
Out of stock

11

SHIM, TAPPET

12892-05C00-155

8
Out of stock

11

SHIM, TAPPET

12892-05C00-160

8
Out of stock

11

SHIM, TAPPET

12892-05C00-165

8
Out of stock

11

SHIM, TAPPET

12892-05C00-170

8
Out of stock

11

SHIM, TAPPET

12892-05C00-175

8
Out of stock

11

SHIM, TAPPET

12892-05C00-180

8
Out of stock

11

SHIM, TAPPET

12892-05C00-185

8
Out of stock

11

SHIM, TAPPET

12892-05C00-190

8
Out of stock

11

SHIM, TAPPET

12892-05C00-195

8
Out of stock

11

SHIM, TAPPET

12892-05C00-200

8
Out of stock

11

SHIM, TAPPET

12892-05C00-205

8
Out of stock

11

SHIM, TAPPET

12892-05C00-210

8
Out of stock

11

SHIM, TAPPET

12892-05C00-215

8
Out of stock

11

SHIM, TAPPET

12892-05C00-220

8
Out of stock

12

SHIM SET, TAPPET INC.REF.NO.11-1%11-21 (5PCS.EACH) & NO.13 | OPT NOT SHOWN; Includes Item(s) 13

12800-05830

1
Out of stock

13

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69491

1
Out of stock
