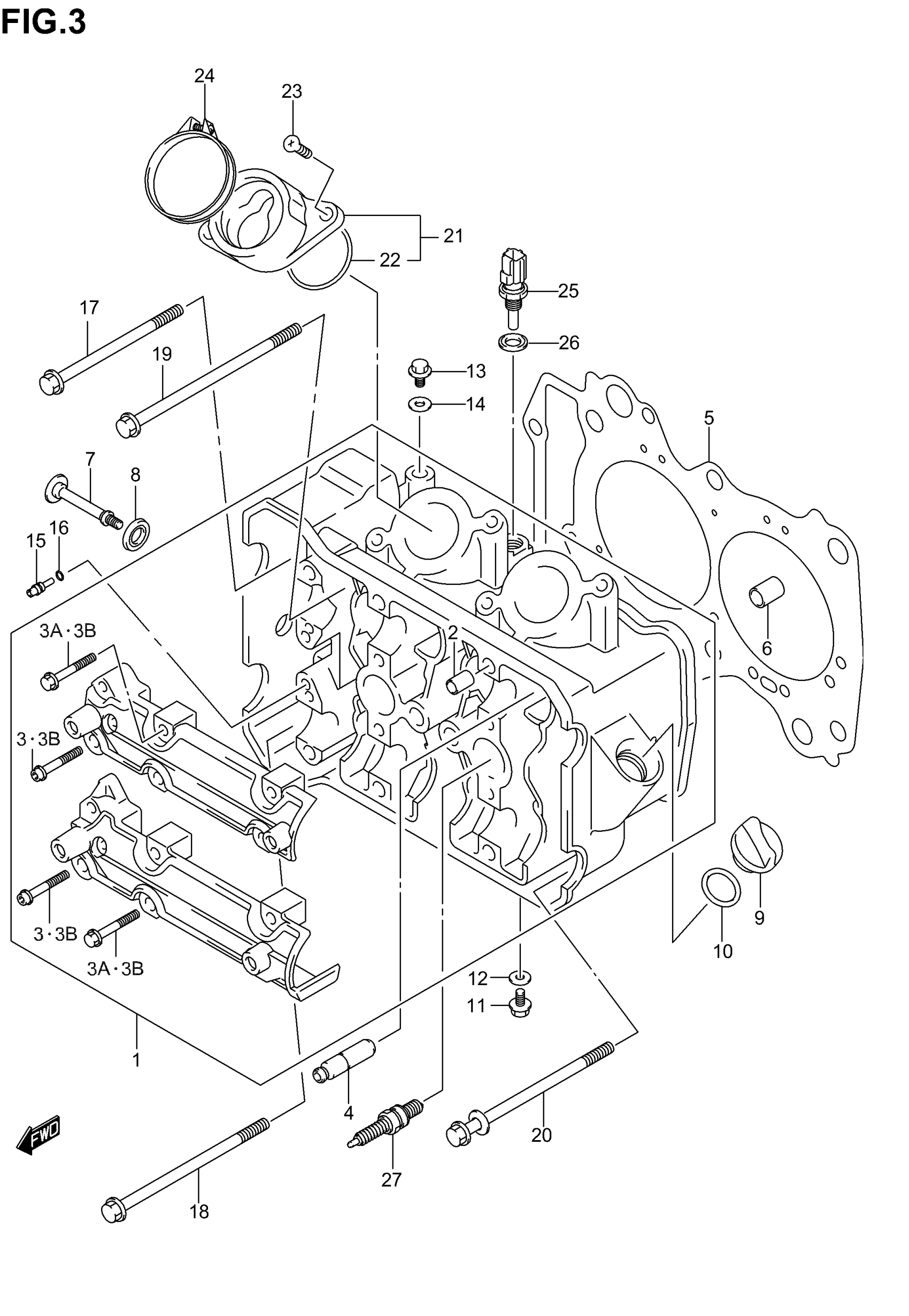

Suzuki AN650 (2005) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL K3/K4

11100-10G00

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K5; Includes Item(s) 2 - 3B

11100-10G10

Unavailable

2

PIN, CAMSHAFT HOUSING KNOCK

09206-08001

$1.82

3

BOLT | MODEL K3/K4 This part replaces 07120-06403.

07120-0640B

$3.13

3A

BOLT (6X39) | MODEL K3/K4

09103-06026

$1.84

3B

BOLT, CAMSHAFT HOUSING | MODEL K5

09103-06266

$2.19

4

GUIDE, VALVE (OS:0.3) | OPT

11115-33D71

$45.97

5

GASKET, CYLINDER HEAD

11141-10G00

$47.90

6

PIN, CYLINDER HEAD KNOCK

04211-13189

$2.25

7

BOLT, CYL HEAD SIDE FACE | MODEL K3/K4

11161-10G00

Unavailable

8

WASHER, SIDE FACE BOLT | MODEL K3/K4

11191-13E00

$4.34

9

PLUG,ENGINE OIL FILLER

11971-25D00

$4.89

10

O RING, ENGINE OIL FILLER PLUG

09280-17003

$1.70

11

BOLT, OIL GALLERY EXHAUST

09103-06222

$2.35

12

WASHER, OIL GALLERY EXHAUST

09168-06023

$2.09

13

BOLT (8X9.5) This part replaces 09103-08335.

09103-08421

$4.48

14

GASKET (8.2X14X1)

09168-08016

$1.70

15

JET, OIL GALL CYL HEAD

09493-28010

$18.00

16

O RING, OIL GALL JET

09280-04004

$1.76

17

BOLT, CYLINDER HEAD (L:110)

11161-10G50

Unavailable

18

BOLT, CYLINDER HEAD (L:135)

09103-08212

$8.12

19

BOLT, CYLINDER HEAD (L:150)

09116-10130

Unavailable

20

BOLT, CYLINDER HEAD (L:155)

09116-10133

Unavailable

21

PIPE ASSY,INTAK | Includes Item(s) 22 This part replaces 13101-10G00.

13101-10G01

$57.85

22

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

23

SCREW This part replaces 02122-06163.

02122-0616A

$1.46

24

CLAMP, INTAKE PIPE

09402-58208

$4.99

25

SENSOR, WATER TEMP

13650-10G00

$83.45

26

GASKET, TEMP SENSOR

09168-12017

$2.01

27

SPARK PLUG (NGK,CR8E)

09482-00456

$6.17

27

SPARK PLUG (ND,U24ESR-N)

09482-00457

$5.79

27

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$5.92

27

SPARK PLUG (ND,U22ESR-N) | OPT

09482-00515

$5.67

27

PLUG SPARK (CR9E) | OPT

09482-00458

$5.92

27

SPARK PLUG (ND,U27ESR-N) | OPT

09482-00459

$5.79
