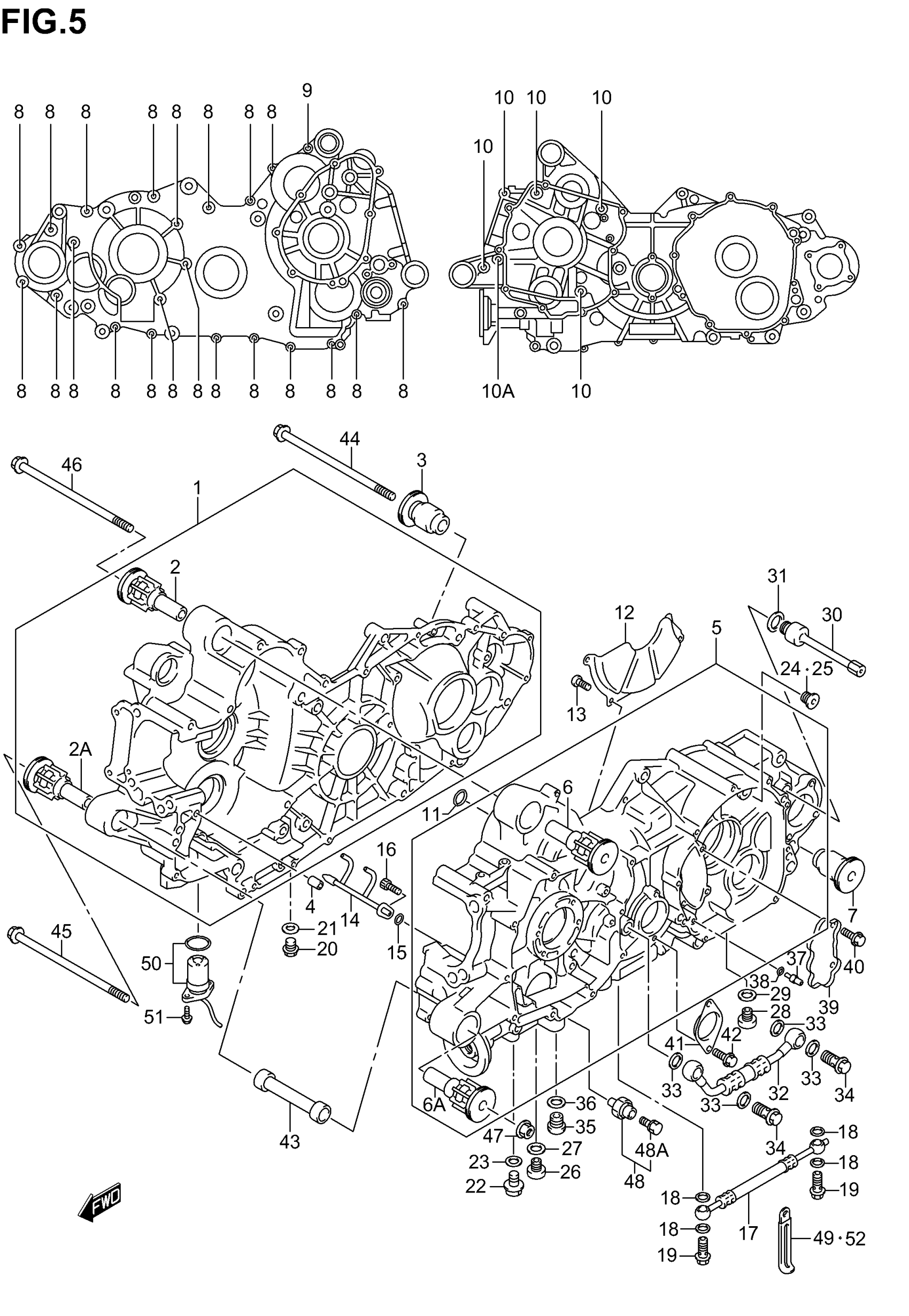

Suzuki AN650 (2005) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET, RH | MODEL K3 ?11310-10821

11310-10840

Unavailable

1

CRANKCASE SET, RH | MODEL K4/K5; Includes Item(s) 2 - 2A This part replaces 11310-10830.

11310-10831

Unavailable

2

BUSH, ENGINE MTG | MODEL K3 ?11652-10G00

11652-10G20

Unavailable

2

BUSH, ENGINE MTG | MODEL K4/K5

11652-10G00

$31.38

2A

BUSH, ENGINE MTG | MODEL K4/K5

11652-10G10

Unavailable

3

BUSH, ENGINE MTG

11651-10G00

$31.43

4

PIN,CRANKCASE

11319-33E50

$5.23

5

CRANKCASE SET, LH | MODEL K3 ?11320-10820

11320-10840

Unavailable

5

CRANKCASE SET, LH | MODEL K4/K5; Includes Item(s) 6 - 6A This part replaces 11320-10830.

11320-10831

Unavailable

6

BUSH, ENGINE MTG | MODEL K3 ?11652-10G00

11652-10G20

Unavailable

6

BUSH, ENGINE MTG | MODEL K4/K5

11652-10G00

$31.38

6A

BUSH, ENGINE MTG | MODEL K4/K5

11652-10G10

Unavailable

7

BUSH, ENGINE MTG

11651-10G00

$31.43

8

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.80

9

BOLT, CRANKCASE (6X85) This part replaces 01547-06853.

01547-0685B

$4.35

10

BOLT This part replaces 01550-08953.

01550-0895A

$5.00

10A

BOLT, CRANKCASE (8X105)

09103-08097

$3.27

11

O RING, CRANKCASE

09280-12009

$2.95

12

SEPARATOR, CRANKCASE OIL

11323-10G00

Unavailable

13

SCREW This part replaces 02112-06123.

02112-0612A

$1.46

14

JET, PISTON COOLING

11390-10G00

Unavailable

15

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

16

BOLT This part replaces 07130-06123.

07130-0612A

$2.58

17

PIPE, CRANKCASE OIL

11282-10G10

$114.75

18

GASKET, OIL PIPE UNION BOLT

09168-10007

$1.76

19

UNION BOLT This part replaces 09360-10032.

09360-10055

$5.25

20

PLUG, OIL GALLERY

09247-10008

$2.01

21

GASKET, OIL GALLERY PLUG

09168-10002

$1.96

22

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.38

23

GASKET, OIL GALLERY PLUG | MODEL K3

09168-08015

$2.80

23

GASKET (8.2X14X1) | MODEL K4/K5

09168-08016

$1.70

24

PLUG, T/M BREATHER | MODEL K3

09248-16013

$4.56

24

PLUG, T/M BREATHER | MODEL K4/K5

09248-16012

$4.32

25

GASKET, T/M BREATHER PLUG

09168-16002

$1.97

26

PLUG, OIL DRAIN

09247-14036

$5.74

27

GASKET, OIL DRAIN PLUG

09168-14002

$2.83

28

PLUG, T/M OIL DRAIN

09248-12008

$11.17

29

GASKET, T/M OIL DRAIN PLUG

09168-12002

$1.63

30

PLUG, T/M OIL FILLER

11326-10G00

$11.83

31

GASKET, T/M OIL FILLER PLUG

09168-14002

$2.83

32

PIPE, OIL PUMP NO.2 | MODEL K3/K4 This part replaces 11328-10G10.

11328-10G20

Unavailable

32

PIPE, OIL PUMP NO.2 | MODEL K5

11328-10G20

Unavailable

33

.GASKET (14X20X1.5)

09168-14015

$2.09

34

BOLT, OIL PIPE UNION

09360-14012

$10.10

35

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.81

36

GASKET, OIL GALLERY PLUG

09168-14002

$2.83

37

JET, OIL GALLERY

09493-80005

$17.57

38

O RING, OIL GALLERY JET

09280-04004

$1.76

39

COVER, CRANKCASE LH

11324-10G00

Unavailable

40

BOLT, CRANKCASE COVER LH

09103-06172

$1.66

41

CAP, PRIMARY SHAFT LH | MODEL K3/K4

11325-10G00

Unavailable

41

CAP, PRIMARY SHAFT LH | MODEL K5

11325-10G10

$5.75

42

BOLT, PRIMARY SHAFT CAP LH

09103-06172

$1.66

43

SPACER, ENG MTG FRONT

11611-10G00

Unavailable

44

BOLT, ENG MTG LOWER

09103-10239

$22.70

45

BOLT, ENG MTG FRONT

09103-10153

$26.02

46

BOLT, ENG MTG UPPER

09103-10347

$23.72

47

NUT This part replaces 08319-31103.

08319-3110A

$2.80

48

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 48A This part replaces 37820-33D10.

37820-33D11

$27.58

48A

BOLT

37822-33D00

$4.92

49

CLAMP

09404-06429

$1.88

50

SWITCH ASSY, OIL LEVEL

37990-10G00

$202.35

51

BOLT This part replaces 01547-06163.

01547-0616B

$2.50

52

CLAMP

09404-06429

$1.88
