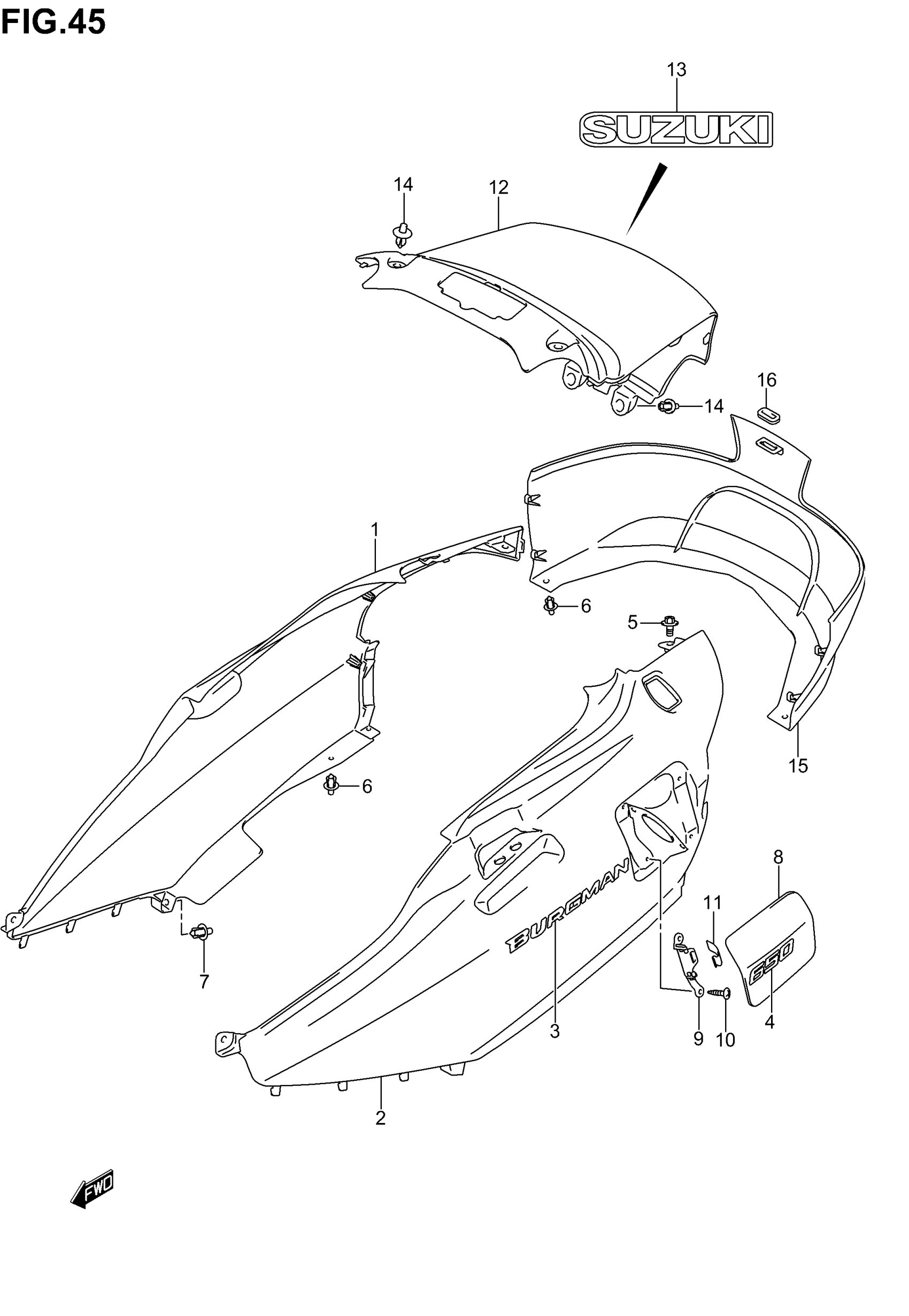

Find the part on the Side Cover diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki AN650 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,SIDE,R(SI This part replaces 47111-10G10-YD8.

47111-10G20-YD8

1
Out of stock

1

COVER,SIDE,R(BL This part replaces 47111-10G10-Y7H.

47111-10G20-Y7H

1
Out of stock

1

COVER, SIDE RH (GREEN) | MODEL K3

47111-10G10-YV4

—
Out of stock

1

COVER, SIDE RH (BLACK) | MODEL K3

47111-10G10-33J

—
Out of stock

1

COVER, SIDE RH (BLACK) | MODEL K4 This part replaces 47111-10G10-YAY.

47111-10G20-YAY

1
Out of stock

2

COVER,SIDE,L(SI This part replaces 47211-10G30-YD8.

47211-10G31-YD8

1
Out of stock

2

COVER,SIDE,L This part replaces 47211-10G30-Y7H.

47211-10G31

1
Out of stock

2

COVER, SIDE LH (GREEN) | MODEL K3

47211-10G30-YV4

—
Out of stock

2

COVER, SIDE LH (BLACK) | MODEL K3

47211-10G30-33J

—
Out of stock

2

COVER, SIDE LH (BLACK) | MODEL K4 This part replaces 47211-10G30-YAY.

47211-10G31-YAY

1
Out of stock

3

EMBLEM, SIDE COVER

68131-10G10

2
Out of stock

4

EMBLEM, "650"

68131-10GA0

2
Out of stock

5

BOLT

09113-06001

2
Out of stock

6

CLIP (BLACK)

09409-06314-5PK

4
Out of stock

7

CLIP (BLACK)

09409-08308-5ES

2
Out of stock

8

LID, FUEL (SILVER) This part replaces 47381-10G10-YD8.

47381-10G11-YD8

1
Out of stock

8

LID,FUEL This part replaces 47381-10G10-Y7H.

47381-10G11-Y7H

1
Out of stock

8

LID, FUEL (GREEN) | MODEL K3

47381-10G10-YV4

—
Out of stock

8

LID, FUEL (BLACK) | MODEL K3

47381-10G10-33J

—
Out of stock

8

LID, FUEL (BLACK) | MODEL K4 This part replaces 47381-10G10-YAY.

47381-10G11-YAY

1
Out of stock

9

HINGE

47382-10G10

1
Out of stock

10

SCREW This part replaces 03541-05123.

03541-0512A

2
Out of stock

11

SPRING, LID This part replaces 47388-10G00.

47388-10G01

1
Out of stock

12

COVER, FRAME CENTER (SILVER) This part replaces 47311-10G00-YD8.

47311-10G01-YD8

1
Out of stock

12

CVR,FRAME CTR(N This part replaces 47311-10G00-Y7H.

47311-10G01

1
Out of stock

12

COVER, FRAME CENTER (GREEN) | MODEL K3

47311-10G00-YV4

—
Out of stock

12

COVER, FRAME CENTER (BLACK) | MODEL K3

47311-10G00-33J

—
Out of stock

12

COVER, FRAME CENTER (BLACK) | MODEL K4

47311-10G01-YAY

1
Out of stock

13

EMBLEM | FOR YD8

68165-14F00-CD5

1
Out of stock

13

EMBLEM | FOR Y7H

68165-14F00-BG3

1
Out of stock

13

EMBLEM | FOR YV4

68165-14F00-KF5

—
Out of stock

13

EMBLEM | FOR CY9

68165-14F00-F3H

—
Out of stock

13

EMBLEM | FOR YAY

68165-14F00-NW9

1
Out of stock

14

CLIP (BLACK)

09409-08308-5ES

4
Out of stock

15

COVER, FRAME LOWER (SILVER)

47321-10G00-YD8

1
Out of stock

15

COVER, FRAME LOWER (BLUE)

47321-10G00-Y7H

1
Out of stock

15

COVER, FRAME LOWER (GREEN) | MODEL K3

47321-10G00-YV4

—
Out of stock

15

COVER, FRAME LOWER (BLACK) | MODEL K3

47321-10G00-33J

—
Out of stock

15

COVER, FRAME LOWER (BLACK) | MODEL K4

47321-10G00-YAY

1
Out of stock

16

CUSHION This part replaces 09320-04008.

09320-04012

2
Out of stock
