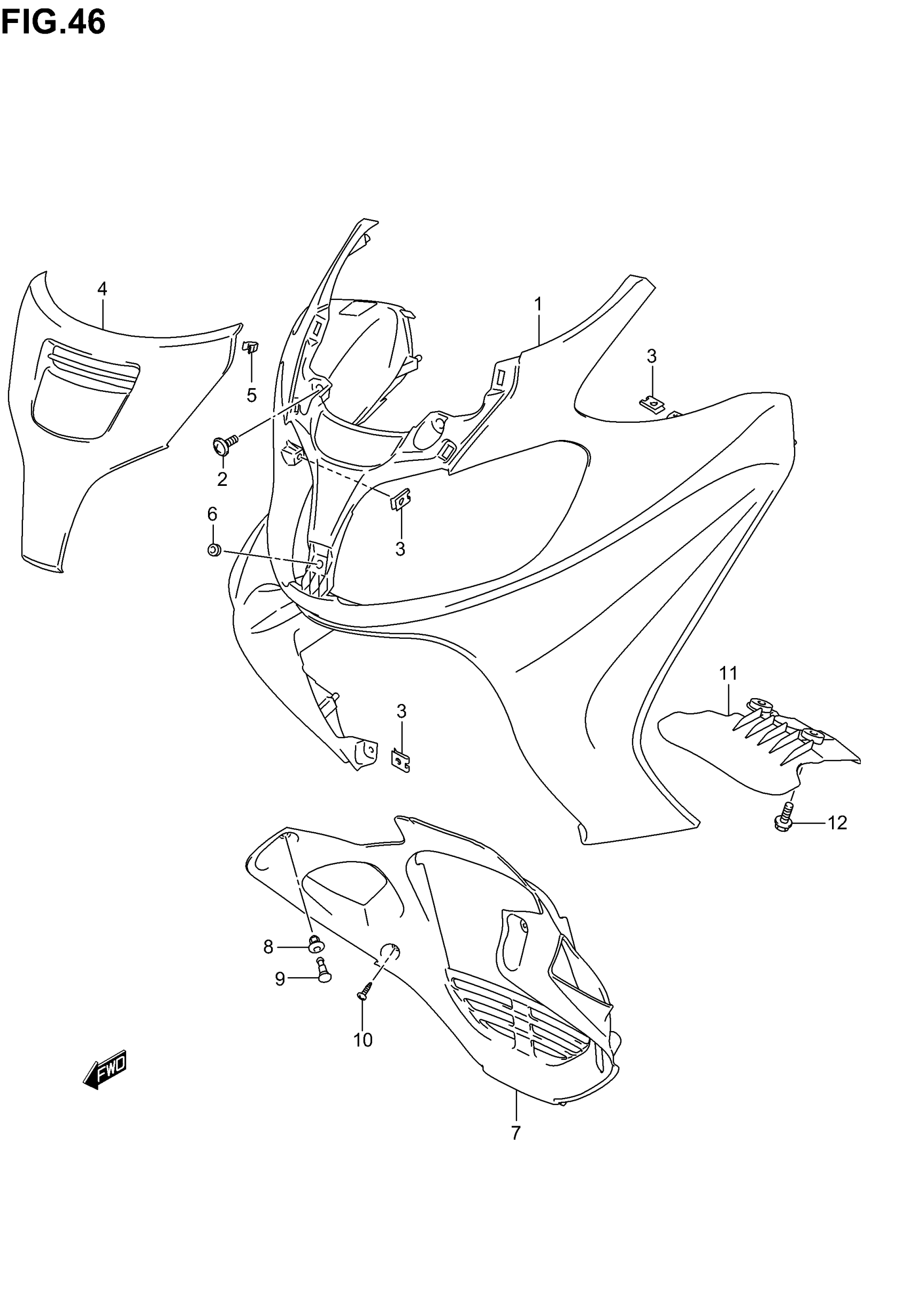

Suzuki AN650 (2005) FRONT LEG SHIELD Diagram

#

Description
Price

1

SHIELD, LEG FRONT (SILVER)

48111-10G00-YD8

Unavailable

1

SHIELD, LEG FRONT (BLUE) | MODEL K3/K4

48111-10G00-Y7H

Unavailable

1

SHIELD, LEG FRONT (GREEN) | MODEL K3

48111-10G00-YV4

Unavailable

1

SHIELD, LEG FRONT (BLACK) | MODEL K3

48111-10G00-33J

Unavailable

1

SHIELD, LEG FRONT (BLACK) | MODEL K4/K5

48111-10G00-YAY

$826.78

1

SHIELD, LEG FRONT (BLUE) | MODEL K5

48111-10G00-YBA

Unavailable

2

SCREW

09136-06061

$3.08

3

NUT

09148-05038

$2.01

4

COVER, FRONT LEG (BLACK) | MODEL K3 FOR YD8,Y7H,YV4

48130-10G00-Y7L

$147.15

4

COVER, FRONT LEG (BLACK) | MODEL K3 FOR CY9

48130-10G00-019

Unavailable

4

COVER, FRONT LEG (GRAY) | MODEL K4

48130-10G00-YAU

Unavailable

4

COVER, FRONT LEG (SILVER) | MODEL K5

48130-10G00-YD8

Unavailable

4

COVER, FRONT LEG (WHITE) | MODEL K5

48130-10G00-YC3

Unavailable

4

COVER, FRONT LEG (BLUE) | MODEL K5; Includes Item(s) 5

48130-10G00-YBA

Unavailable

5

CLIP

09409-08326

$2.53

6

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.19

7

SHIELD, LEG LOWER (GRAY)

48137-10G01-Y0J

$138.98

8

GROMMET

09409-08329

$2.54

9

PLUNGER

09409-08330

$2.56

10

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

11

COVER, LOWER BRACKET

94458-10G00

$24.92

12

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66
