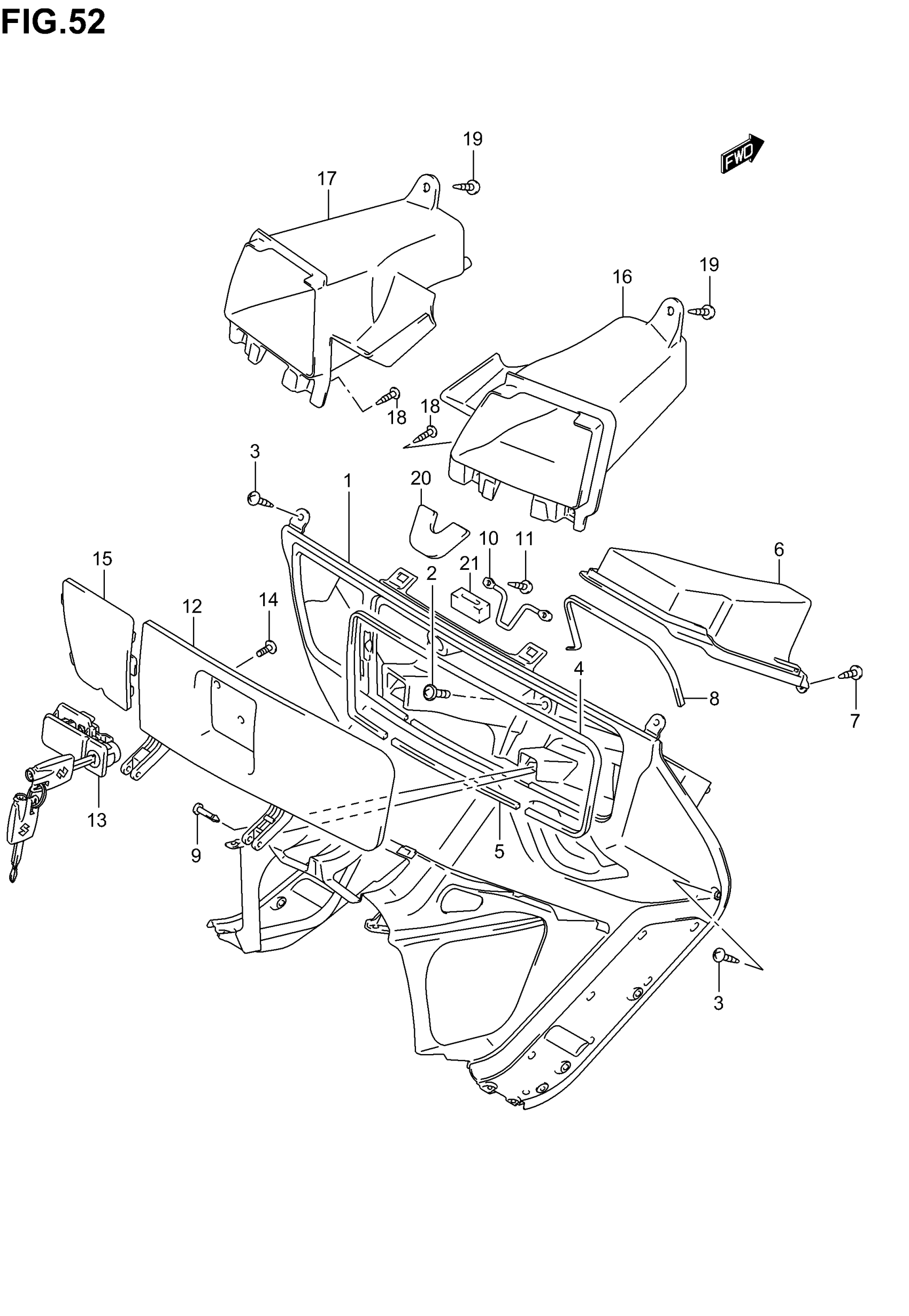

Suzuki AN650 (2005) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT (GRAY) | E28

92111-10G00-Y0J

$312.25

1

BOX, FRONT (GRAY) | E3,E33

92111-10G10-Y0J

$312.25

2

SCREW

09136-06061

$3.08

3

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

4

CUSHION, NO.1 This part replaces 92114-10G00.

92114-14F01

Unavailable

5

CUSHION, NO.1 This part replaces 92115-10G00.

92114-14F01

Unavailable

6

COVER, BOX INNER

92112-10G00

Unavailable

7

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

8

CUSHION, INNER This part replaces 92113-10G00.

92116-05H00

$4.38

9

PIN, FRONT BOX

73423-50G00

$5.75

10

STRIKER, FRONT BOX This part replaces 92171-10G00.

92171-10G01

$12.35

11

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

12

LID, FRONT BOX (GRAY)

92120-10G00-Y0J

$98.98

13

LOCK SET, FRONT BOX This part replaces 92100-10841-Y0J.

92100-10841

$185.10

14

.SCREW This part replaces 02142-05123.

02142-0512A

$1.41

15

LID, MAINTENANCE (GRAY)

92161-10G00-Y0J

$21.32

16

BOX, FRONT PANEL RH

92141-10G00

$49.73

17

BOX, FRONT PANEL LH

92151-10G00

$49.73

18

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

19

SCREW This part replaces 03542-06163.

03541-0616A

$2.07

20

CUSHION, NO.4

92116-10G00

$9.08

21

CUSHION, NO.3

92117-10G00

Unavailable
