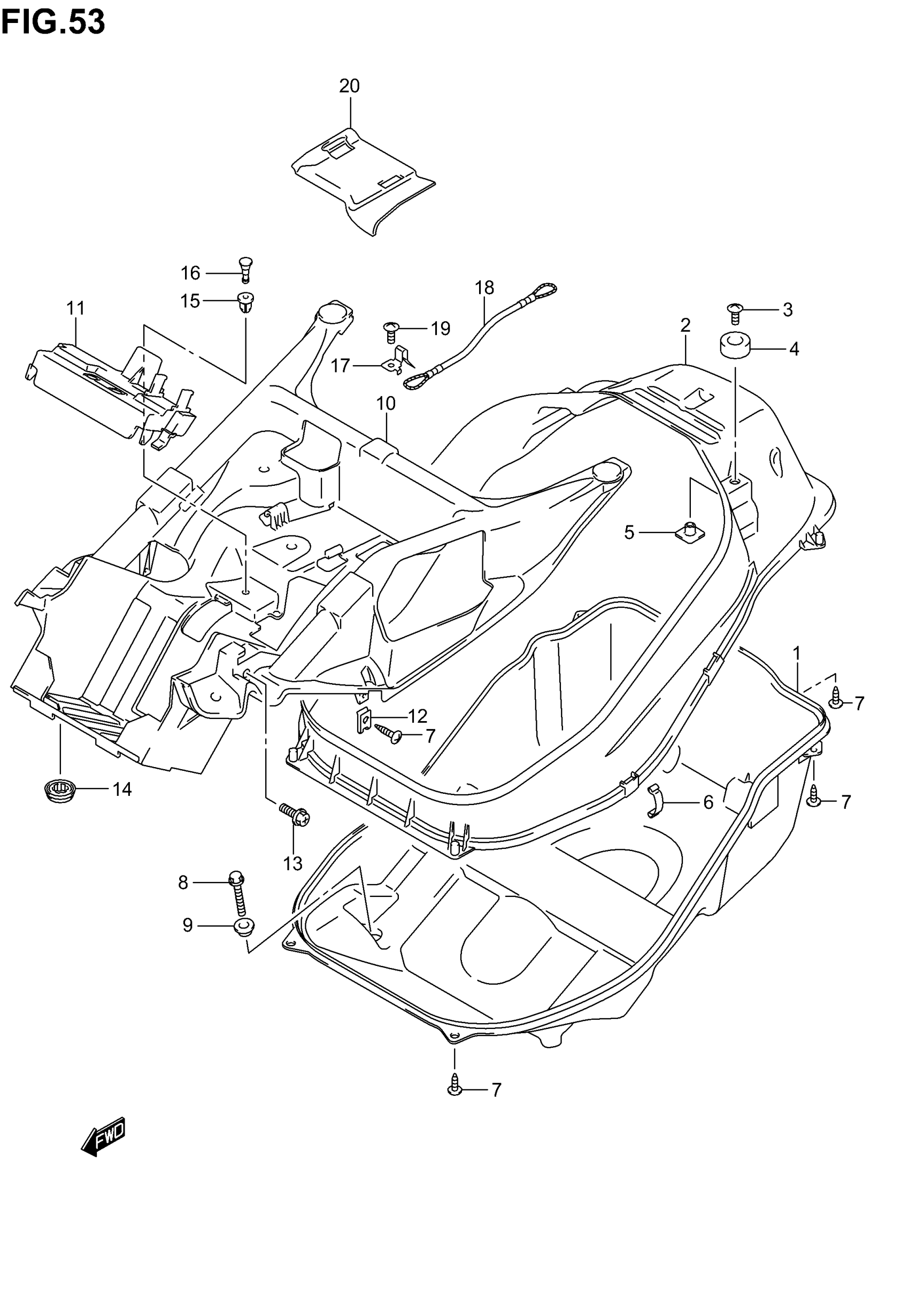

Suzuki AN650 (2005) HELMET BOX Diagram

#

Description
Price

1

BOX, HELMET LOWER | MODEL K3/K4 This part replaces 92211-10G01.

92211-10G10

$397.75

1

BOX, HELMET LOWER | MODEL K5

92211-10G10

$397.75

2

BOX, HELMET UPPER | MODEL K3/K4 This part replaces 92221-10G00.

92221-10G10

Unavailable

2

BOX, HELMET UPPER | MODEL K5

92221-10G10

Unavailable

3

SCREW, UPPER

09125-06069

$2.38

4

CUSHION, UPPER

45149-04A00

$3.53

5

NUT, UPPER This part replaces 92222-10G00.

92222-10G01

$7.30

6

CLAMP,HELMET BOX

92214-14G00

$4.37

7

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

8

BOLT This part replaces 01547-06403.

01547-0640B

$2.80

9

WASHER

09169-06073

$3.18

10

COVER, BOX FRONT NO.1 (GRAY)

92212-10G00-Y0J

Unavailable

11

COVER, BOX FRONT NO.2 | MODEL K3

92213-10G00

Unavailable

11

COVER, BOX FRONT NO.2 | MODEL K4/K5

92213-10G01

$31.90

12

NUT

09148-05038

$2.01

13

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

14

CUSHION

09320-09046

$8.50

15

GROMMET

09409-08329

$2.54

16

PLUNGER

09409-08330

$2.56

17

STOPPER, HELMET HOLDER

95723-10G00

Unavailable

18

CABLE,HELMET LO This part replaces 95740-10G00.

95740-10G01

$29.47

19

SCREW This part replaces 02142-06123.

02142-0612A

$1.41
