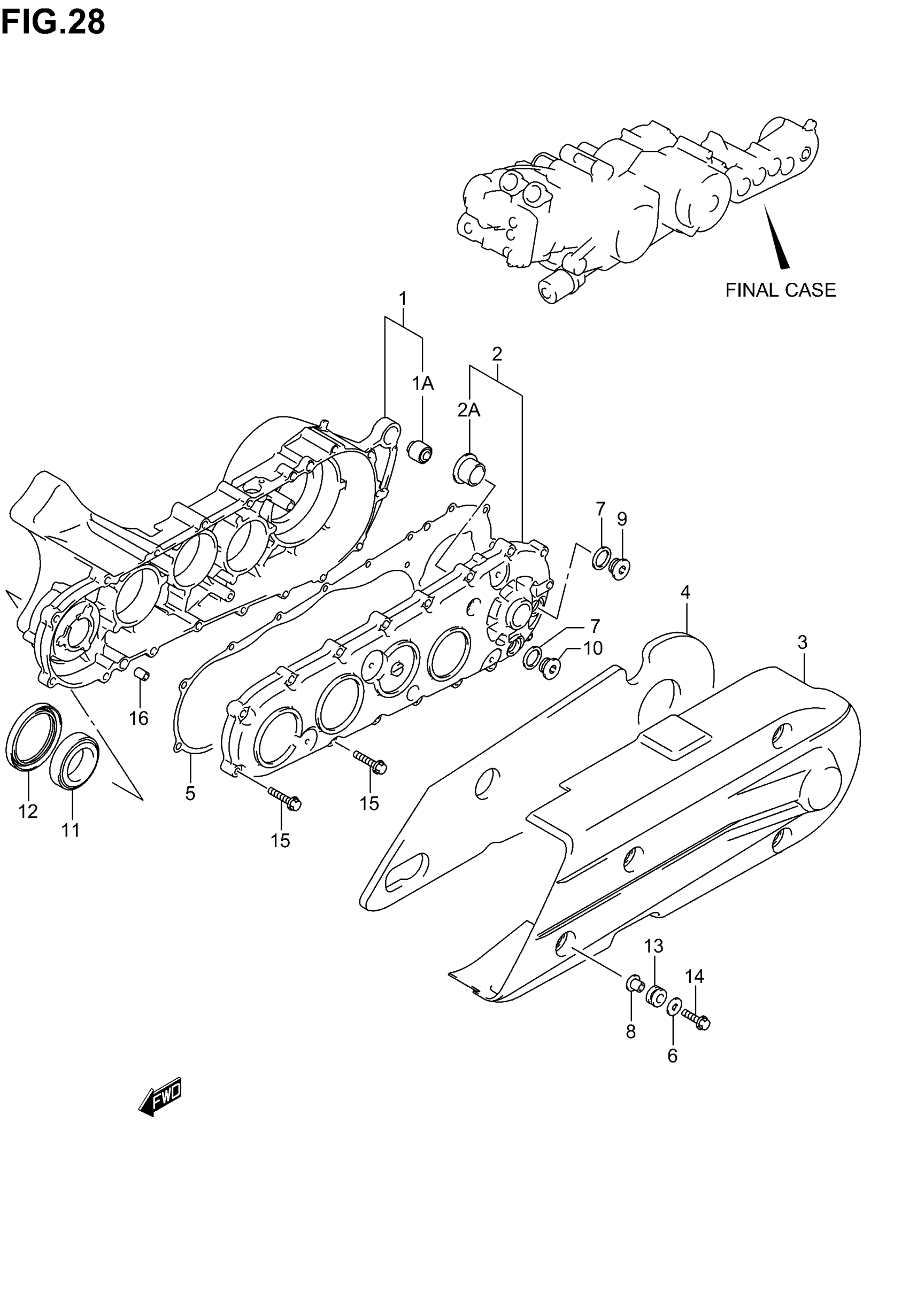

Suzuki AN650 (2005) CASE FINAL (AN650K3/K4/K5) Diagram

#

Description
Price

1

CASE, FINAL GEAR RH | Includes Item(s) 1A

27450-10G00

Unavailable

1A

BUSH, REAR SHOCK ABS

09319-10032

$10.08

2

CASE, FINAL GEAR LH | Includes Item(s) 2A

27460-10G00

Unavailable

2A

BUSH, FINAL GEAR CASE

27433-24A00

Unavailable

3

COVER, FINAL GEAR CASE

27471-10G00

$90.45

4

CUSHION, FINAL GEAR CASE | MODEL K3 This part replaces 27472-10G00.

27472-10G01

Unavailable

4

CUSHION, FINAL GEAR CASE | MODEL K4/K5

27472-10G01

Unavailable

5

GASKET, FINAL GEAR CASE

27551-10G00

$27.13

6

WASHER, COVER BOLT | 6.5X18X1.6

09160-06109

$1.19

7

GASKET, OIL FILLER PLUG | 18X24.2X2

09168-18003

$1.41

8

SPACER, COVER BOLT

09169-06062

$2.57

9

PLUG, OIL FILLER

09248-18004

$16.75

10

PLUG, OIL DRAIN

09248-18008

$28.58

11

BEARING, FINAL GEAR CASE RH | 35X55X14

09265-35012

Unavailable

12

SEAL, FINAL GEAR CASE RH | 53X68.2X7

09283-53001

$17.38

13

CUSHION, FINAL COVER BOLT

09320-09016

$2.01

14

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.50

15

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.80

16

PIN, FINAL GEAR CASE

04211-09149

$1.70
