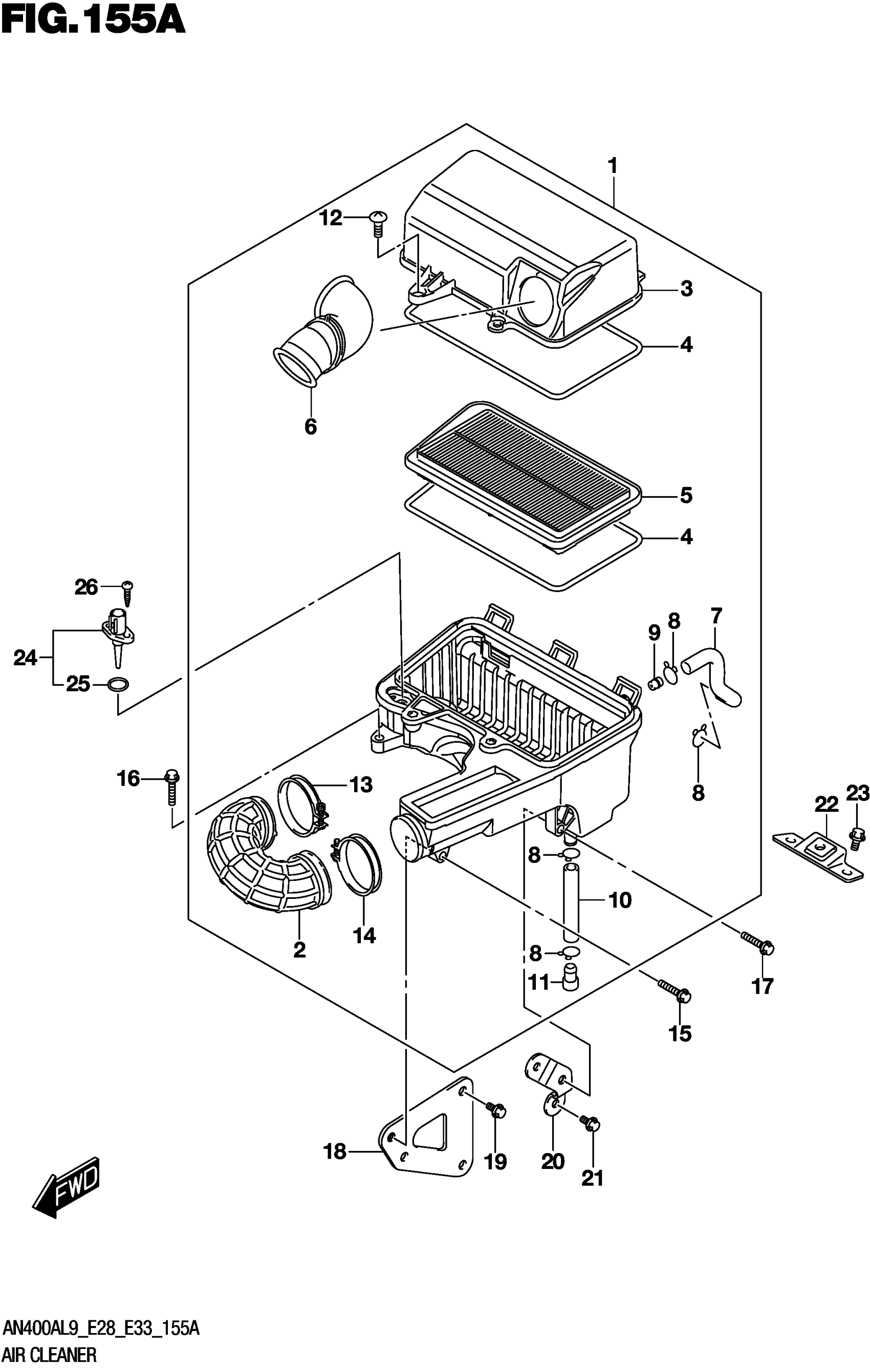

Suzuki AN400AL9 (2019) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-19K00

$349.90

2

.TUBE, OUTLET

13881-19K00

$41.70

3

.CAP

13740-19K00

$43.08

4

.GASKET

13746-19K00

$6.42

5

.FILTER, AIR CLEANER

13780-19K00

$24.68

6

.TUBE, INLET

13891-19K00

Unavailable

7

.TUBE, BREATHER

13853-19K00

$12.18

8

.CLIP

13821-12K00

$4.33

9

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.97

10

.TUBE, DRAIN

13871-19K00

$15.15

11

.STOPPER, DRAIN

13877-19K00

$5.32

12

.SCREW

13837-19K00

$3.48

13

.CLAMP

13170-25D01

$7.45

14

.CLAMP

09402-58208

$4.84

15

BOLT (6X25)

01550-0625A

$1.97

16

BOLT (6X30)

09116-06103

$3.42

17

BOLT (6X25)

01550-0625A

$1.97

18

BRACKET, FRONT

13760-05H00

Unavailable

19

BOLT

01547-0612A

$2.01

20

BRACKET, LH

13760-19K00

$9.33

21

BOLT

01547-0612A

$2.01

22

BRACKET, AIR CLEANER REAR

13760-19K10

$32.05

23

BOLT

01547-0612A

$2.01

24

SENSOR,AIR TEMP

13650-14G10

$47.66

25

.O-RING

13655-14G10

$11.18

26

SCREW

03511-0516A

$1.88
