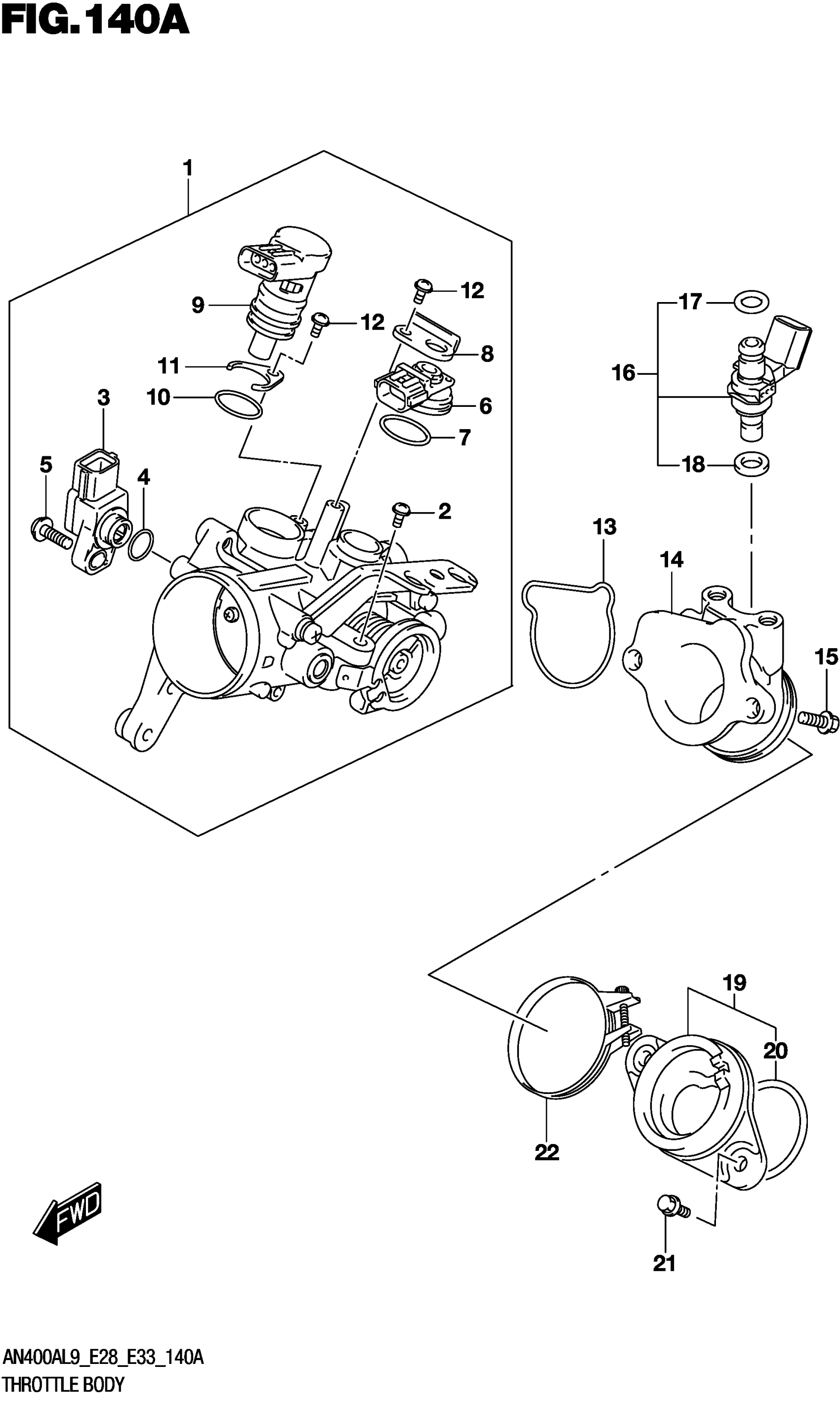

Find the part on the Throttle Body diagram for your 2019 Suzuki AN400AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki AN400AL9 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

BODY ASSY, THROTTLE | E28

13400-19K00

—
Out of stock

1-2

BODY ASSY, THROTTLE | E33

13400-19K10

1
Out of stock

2

.SCREW

13601-14G00

1
Out of stock

3

.SENSOR ASSY, THROTTLE MAIN

13580-18G00

1
Out of stock

4

.O-RING

13575-40F00

1
Out of stock

5

.SCREW

13605-40F00

1
Out of stock

6

.SENSOR,MAP

15620-05H00

1
Out of stock

7

.O RING This part replaces 15621-05H00.

15621-05H01

1
Out of stock

8

.PLATE

15622-05H00

1
Out of stock

9

.VALVE, ISC

18117-05H22

1
Out of stock

10

.O-RING

18119-05H00

1
Out of stock

11

.PLATE

13428-06F30

1
Out of stock

12

.SCREW

02112-14087

2
Out of stock

13

.O RING

13278-05H00

1
Out of stock

14

PIPE, INTAKE

13111-19K00

—
Out of stock

15

BOLT

01547-0616A

2
Out of stock

16

INJECTOR ASSY

15710-19K00

1
Out of stock

17

.O RING

15721-26J00

1
Out of stock

18

.RING,SEAL

15722-21H00

1
Out of stock

19

PIPE ASSY,INTAKE This part replaces 13101-05H00.

13101-05H01

1
Out of stock

20

O RING (D:2.40,ID:41.7)

09280-42003

1
Out of stock

21

BOLT (6X16)

09119-06092

2
Out of stock

22

CLAMP,INTAKE PIPE

13170-39H01

1
Out of stock
