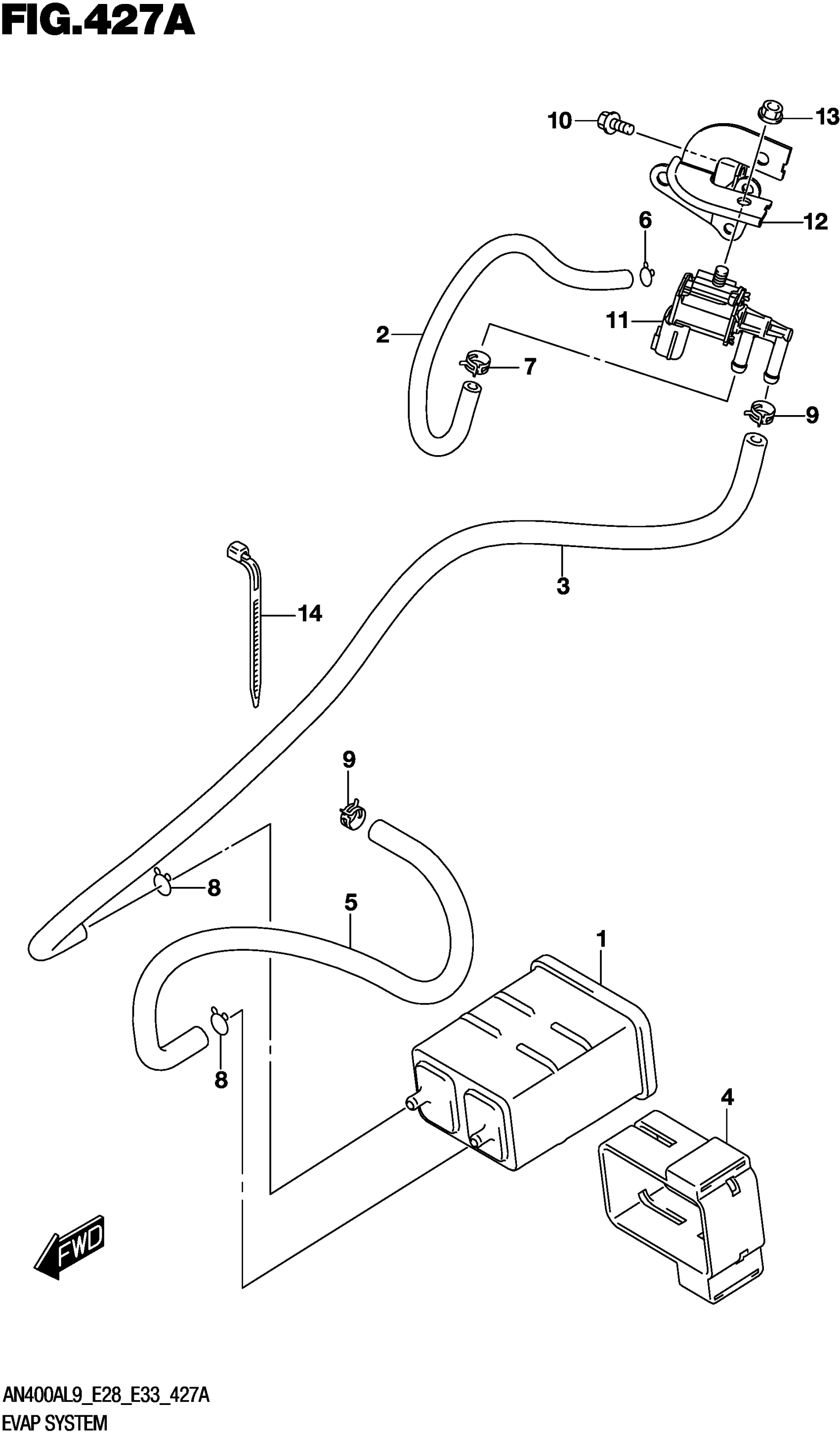

Find the part on the Evap System diagram for your 2019 Suzuki AN400AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki AN400AL9 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CANISTER ASSY, CHARCOAL

18560-19K00

1
Out of stock

2

HOSE, PURGE NO.1

18561-19K00

1
Out of stock

3

HOSE, PURGE NO.2

18562-19K00

1
Out of stock

4

CUSHION, CANISTER

18572-19K00

1
Out of stock

5

HOSE, VALVE & CANISTER

44435-14G10

1
Out of stock

6

CLIP (ID:6.5)

09401-06101

1
Out of stock

7

CLIP (ID:8.6)

09401-08411

1
Out of stock

8

CLIP

09401-10401

2
Out of stock

9

CLIP (ID:10.5,H:8)

09401-10409

2
Out of stock

10

BOLT

01547-0512A

2
Out of stock

11

VALVE,CANISTER PURGE

18117-52G10

1
Out of stock

12

BRACKET, SOLENOID VALVE

18571-19K00

1
Out of stock

13

NUT (6X12)

08316-1006A

1
Out of stock

14

CLAMP (L:165)

09407-18402

1
Out of stock
← Air Cleaner Fuel Pump →

More Air & Fuel diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
