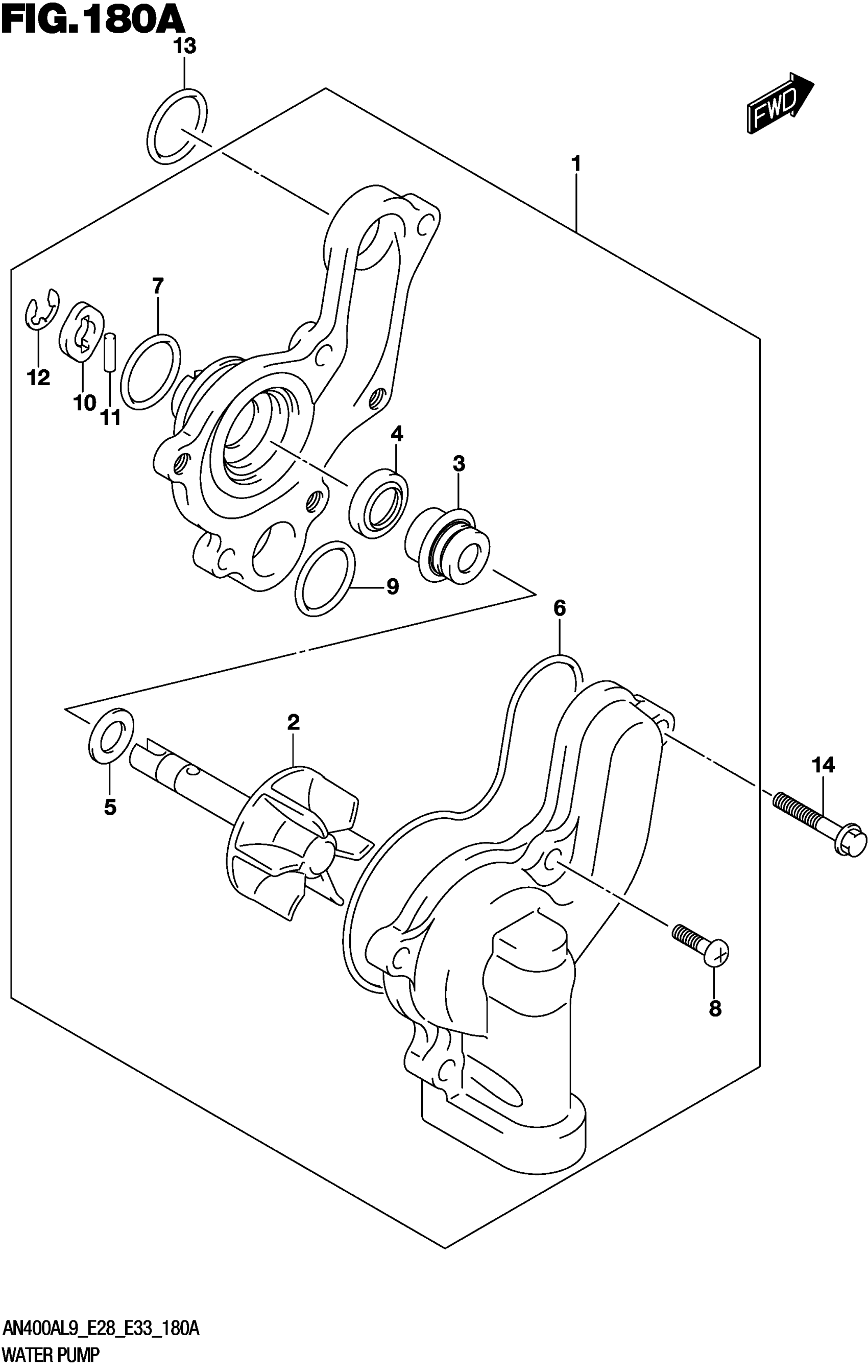

Suzuki AN400AL9 (2019) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-05H00.

17400-05H01

$240.32

2

.IMPELLER

17491-05H00

$60.23

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

4

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

5

.WASHER

17432-07G00

$2.61

6

.O RING

17418-05H00

$22.08

7

.O-RING

17435-33400

$13.99

8

.SCREW

02112-0616A

$1.43

9

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

10

.CAP

17481-05H00

Unavailable

11

.PIN

17482-03G00

$2.97

12

.E RING

17483-05H00

Unavailable

13

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

14

BOLT

01547-0635A

$2.31
