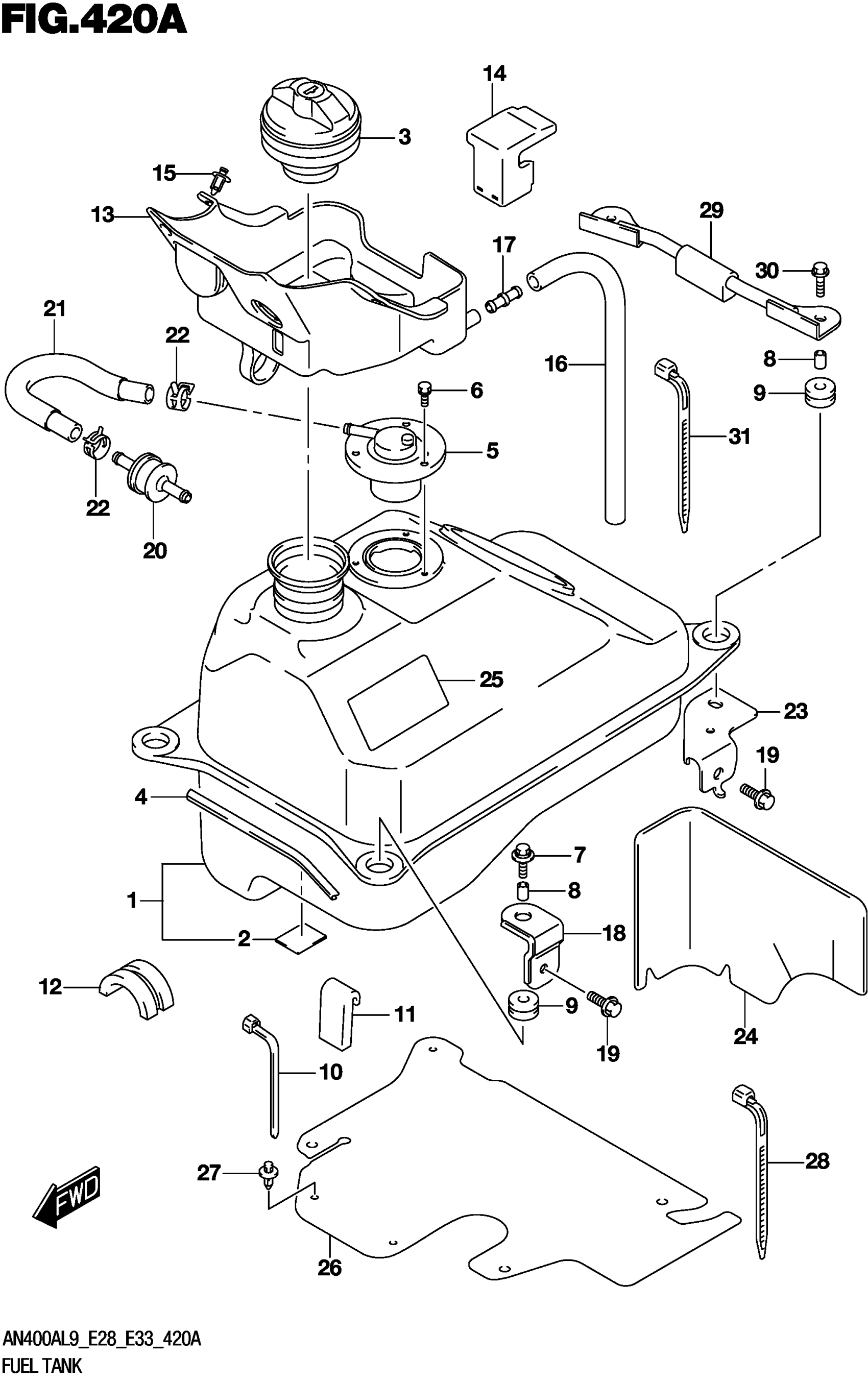

Suzuki AN400AL9 (2019) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44110-19K10

Unavailable

2

.CUSHION,FUEL TANK

44542-19K00

$7.62

3

CAP SET,FUEL TANK

44200-14840

$196.77

4

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

5

VALVE,FUEL CUT

89480-52DA0

$71.77

6

BOLT

01570-0510B

$2.55

7

BOLT (6X25)

09116-06147

$2.93

8

SPACER (6.5X9X12.5)

09180-06267

$4.45

9

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.44

10

CLAMP (L:250)

09407-25402

$4.19

11

CUSHION,FUEL TANK,LWR LH

44541-14F00

Unavailable

12

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

13

TRAY, TANK INLET

44260-05H20

$102.28

14

CUSHION

44262-05H00

$18.02

15

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

16

HOSE (7X10.2X540)

09352-70104-540

$6.42

17

JOINT

09367-08001

$4.53

18

BRACKET,FUEL TANK FRONT

44531-05H00

Unavailable

19

BOLT

01550-0612A

$1.97

20

VALVE,2 WAY CHECK

85451-75100

$44.04

21

HOSE, CHECK VALVE

44434-05H10

$43.30

22

CLIP (ID:10.5,H:8)

09401-10409

$2.28

23

BRACKET,FUEL TANK REAR LH

44560-05H10

$26.65

24

SHIELD,FUEL TANK HEAT

44191-05H00

Unavailable

25

TAPE,FUEL TANK SIDE

44192-05H00

$30.60

26

SHEET, FUEL TRAY

44193-19K00

$63.43

27

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

28

CLAMP (L:190)

09407-19401

$3.32

29

BRACKET, FUEL TANK REAR

44500-05H01

Unavailable

30

BOLT (6X25)

01550-0625A

$1.97

31

CLAMP (L:125)

09407-14403

$2.24
