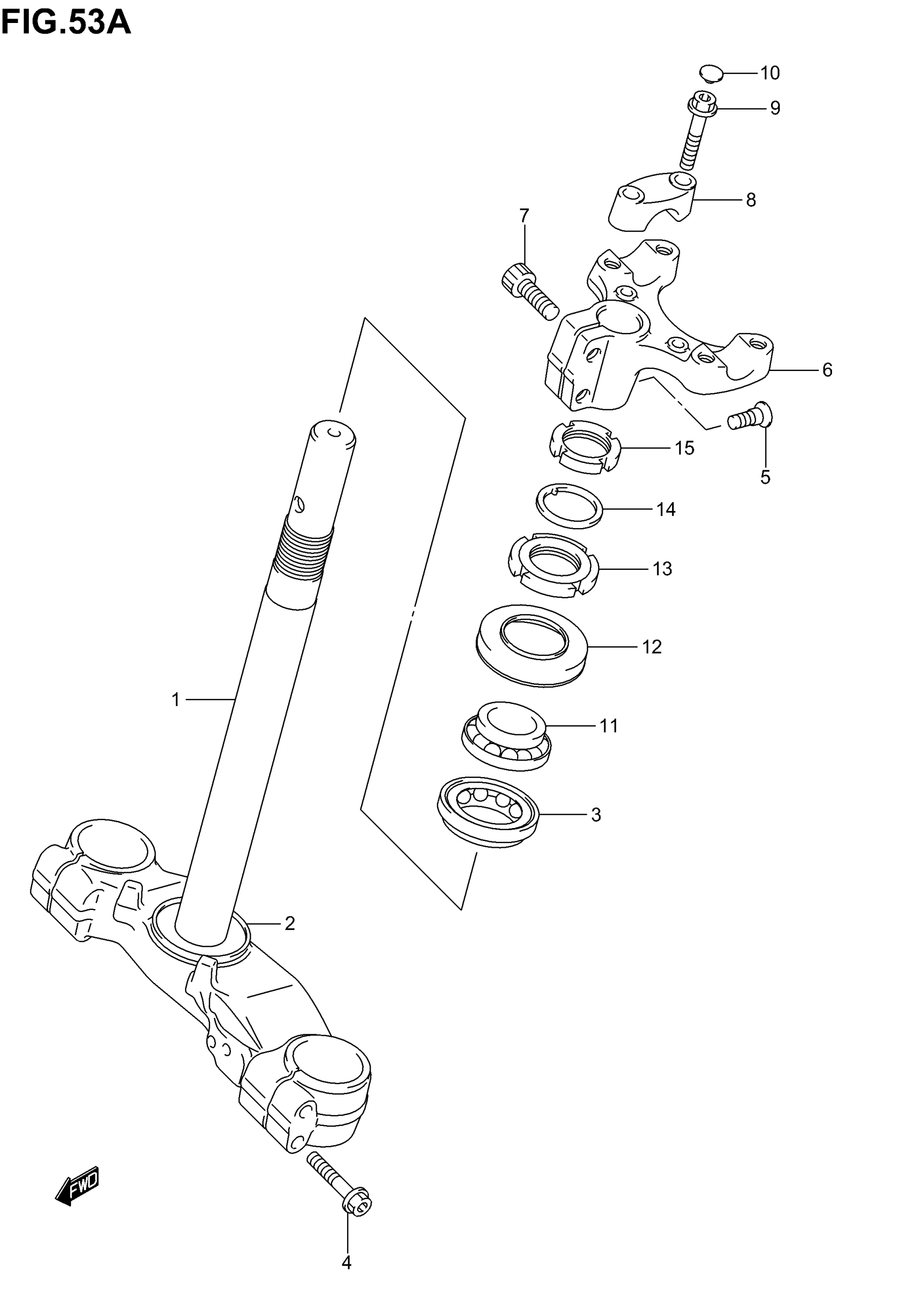

Suzuki AN400 (2006) STEERING STEM (AN400SK5/SK6) Diagram

BRACKET, FRONT FORK UNDER | Includes Item(s) 2 - 3

51410-14FD0

$928.07

SEAL, STEERING LOWER

51644-12C00

$8.65

BEARING, (30X55X17)

09267-30010

$43.41

BOLT

01550-08407

$2.63

SCREW

56123-14F10

$6.82

BRACKET, FRONT FORK, UPPER

51311-14F10

$230.12

BOLT (10X25)

09106-10067

Unavailable

CLAMP, UPPER (SILVER) This part replaces 56211-42F00.

56211-31F00-0FP

Unavailable

BOLT

09106-08105

$4.12

CAP

09250-06009

$3.13

BEARING (25X47X17)

09267-25009

$56.72

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

NUT, STEERING STEM (25X44)

51631-28000

$19.60

WASHER

09166-26001

$2.25

NUT, STEERING STEM LOCK

51632-02400

$19.03
