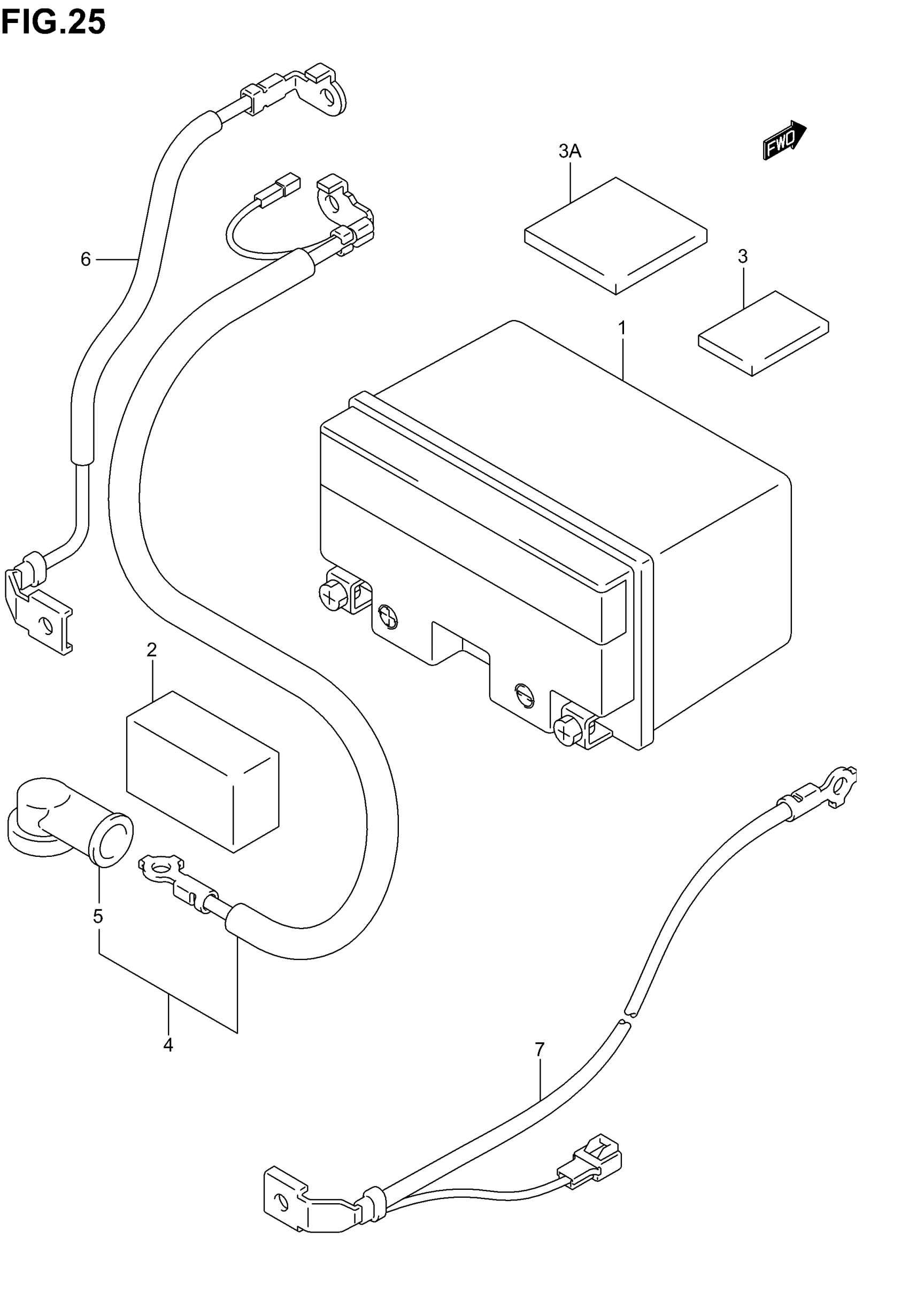

Suzuki AN400 (2006) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33610-14G10.

33610-14G11

$142.85

2

PROTECTOR, BATTERY (30X50X25)

33652-14G00

Unavailable

3

PROTECTOR (170X95X3) | MODEL K3/K4 CUT AS REQUIRED PROFILE (30X40)

33651-37000

$4.09

3A

PROTECTOR (50X50X5) | MODEL K5/K6

33652-20C00

$2.80

4

WIRE, STARTER MOTOR | Includes Item(s) 5

33810-14G00

Unavailable

5

CAP, STARTER LEAD

31861-48B10

$7.40

6

WIRE, BATTERY PLUS LEAD

33820-14G00

Unavailable

7

WIRE, BATTERY MINUS

33860-14G00

Unavailable
