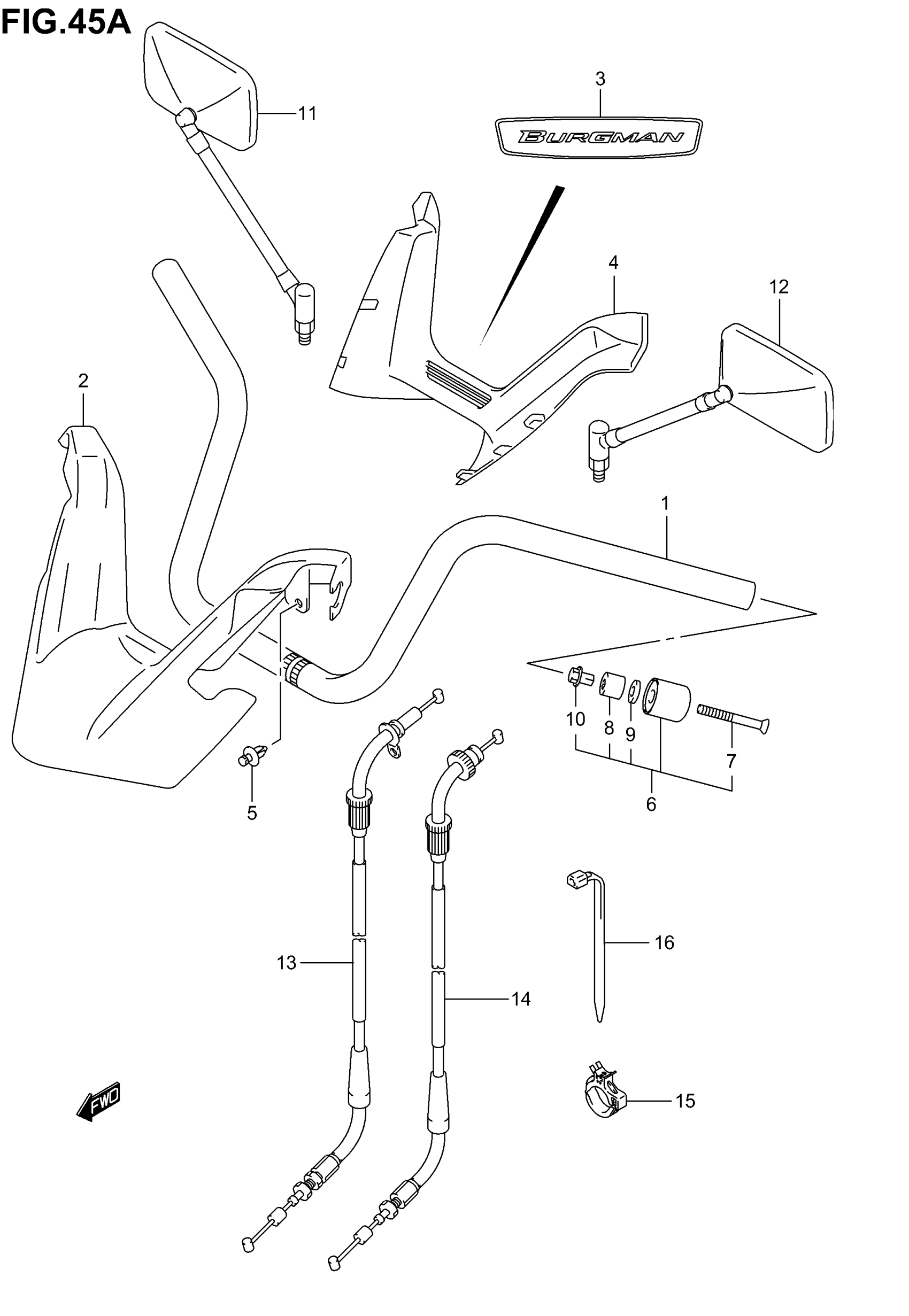

Suzuki AN400 (2006) HANDLEBAR (MODEL K4,AN400K5/K6) Diagram

#

Description
Price

1

HANDLEBAR

56111-14G10

Unavailable

2

COVER, HANDLE FRONT (GRAY)

56311-14G01-Y0J

Unavailable

3

EMBLEM

68281-15F50

$44.60

4

COVER, HANDLE REAR (GRAY)

56321-14G01-Y0J

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

BALANCER SET,HN | Includes Item(s) 7 - 10 This part replaces 56200-14830.

56200-14833

$55.78

7

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

$2.77

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

9

WASHER

09160-06131

$2.53

10

NUT This part replaces 56273-10G00.

56273-10G10

$7.92

11

MIRROR ASSY,RR This part replaces 56500-03F70.

56500-03FD1

$183.53

12

MIRROR ASSY,REA This part replaces 56600-03F70.

56600-03FD1

$203.08

13

CABLE ASSY,THRO This part replaces 58300-14G02.

58300-14G03

Unavailable

14

CABLE ASSY,THRO This part replaces 58300-14G12.

58300-14G13

Unavailable

15

CLAMP

09403-20403

$4.00

15

CLAMP

09403-25401

Unavailable

16

CLAMP

09407-25401

$4.21
