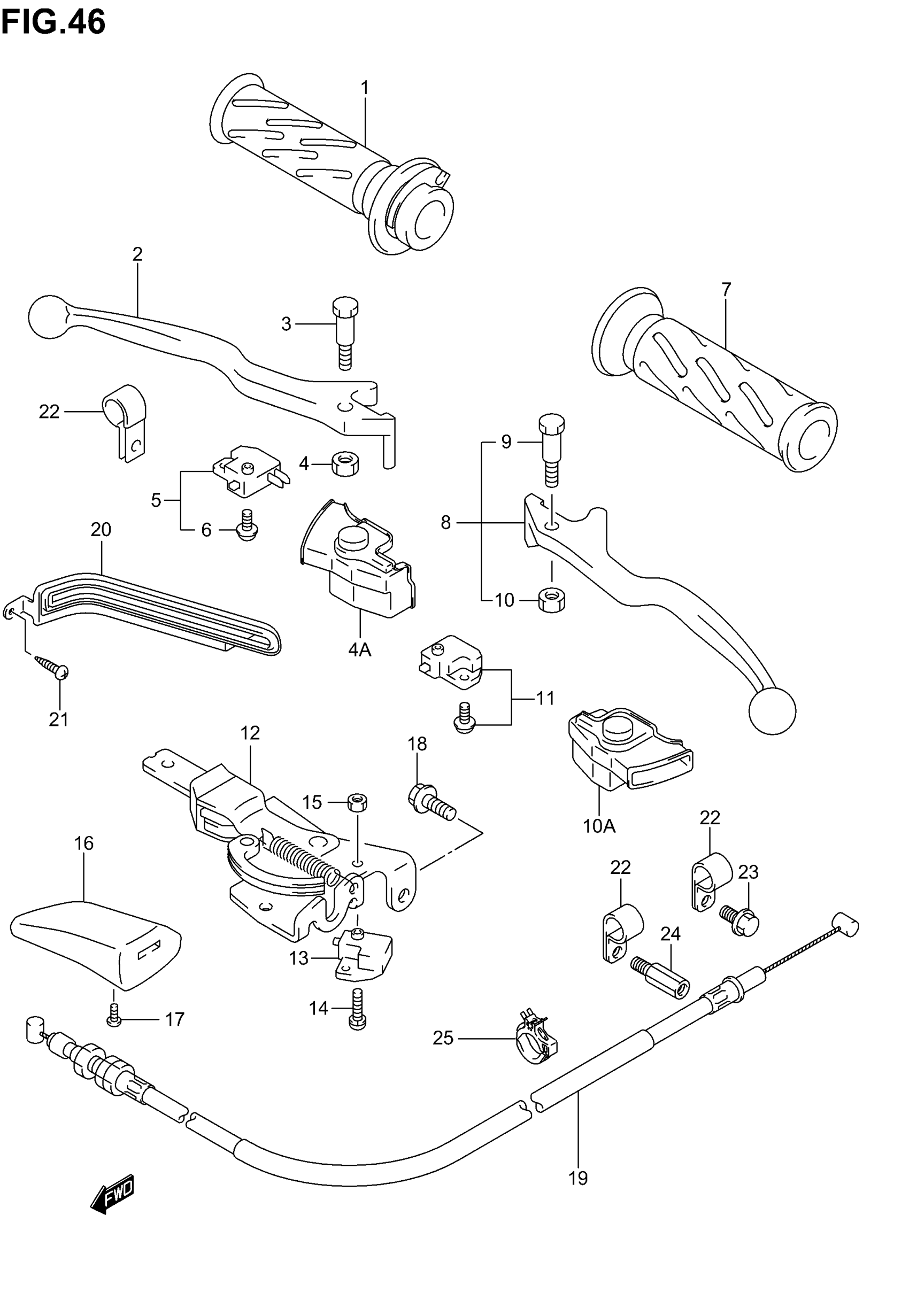

Suzuki AN400 (2006) HANDLE LEVER Diagram

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$27.81

LEVER, FRONT BRAKE

57421-14F00

$17.89

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.01

NUT,LEVER PIVOT

57433-09F00

$3.41

COVER,BRAKE LEV | MODEL K4/K5/K6 This part replaces 57341-14GA0.

57341-14GA1

$9.72

SWITCH ASSY,FR BRAKE | MODEL K3 This part replaces 57460-17C10.

57460-14J02

$36.79

SWITCH ASSY,FR BRAKE | MODEL K4/K5/K6; Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$36.79

SCREW

57465-17C00

$2.37

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.93

LEVER ASSY,RR BRAKE | Includes Item(s) 9 - 10

57500-14F00

$18.88

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.01

.NUT This part replaces 08319-21063.

08319-2106B

$2.38

COVER,BRAKE LEV | MODEL K4/K5/K6 This part replaces 57541-14GA0.

57541-14GA1

$18.90

SWITCH ASSY,RR BRAKE | MODEL K3 This part replaces 57560-14F10.

57560-14J02

$38.03

SWITCH ASSY,RR BRAKE | MODEL K4/K5/K6 This part replaces 57560-14F11.

57560-14J02

$38.03

LEVER ASSY, BRAKE LOCK | MODEL K3/K4 This part replaces 57810-14G00.

57810-14G01

Unavailable

LEVER ASSY, BRAKE LOCK | MODEL K5/K6

57810-14G01

Unavailable

SWITCH ASSY | MODEL K3 This part replaces 57560-14F00.

57560-14F01

$33.75

SWITCH ASSY | MODEL K4/K5

57560-14F01

$33.75

SWITCH ASSY,RR BRAKE | MODEL K6 This part replaces 57560-14F11.

57560-14J02

$38.03

SCREW, SWITCH

57852-10G00

Unavailable

NUT, KNOB

57853-10G00

Unavailable

KNOB, BRAKE LOCK

57820-14G00

$45.53

SCREW This part replaces 02112-04103.

02112-0410A

$1.36

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

CABLE, BRAKE LOCK

58810-14G00

$65.10

PLATE, LEVER SEAL

57950-14G00

Unavailable

SCREW This part replaces 03512-05123.

03511-0512A

$1.68

CLAMP

09403-14204

Unavailable

BOLT, CLAMP | AN400SK5 This part replaces 01550-06123.

01550-0612A

$2.01

BOLT | AN400SK5

09119-06105

$6.52

CLAMP

09403-20403

$4.00

CLAMP

09403-25401

Unavailable
