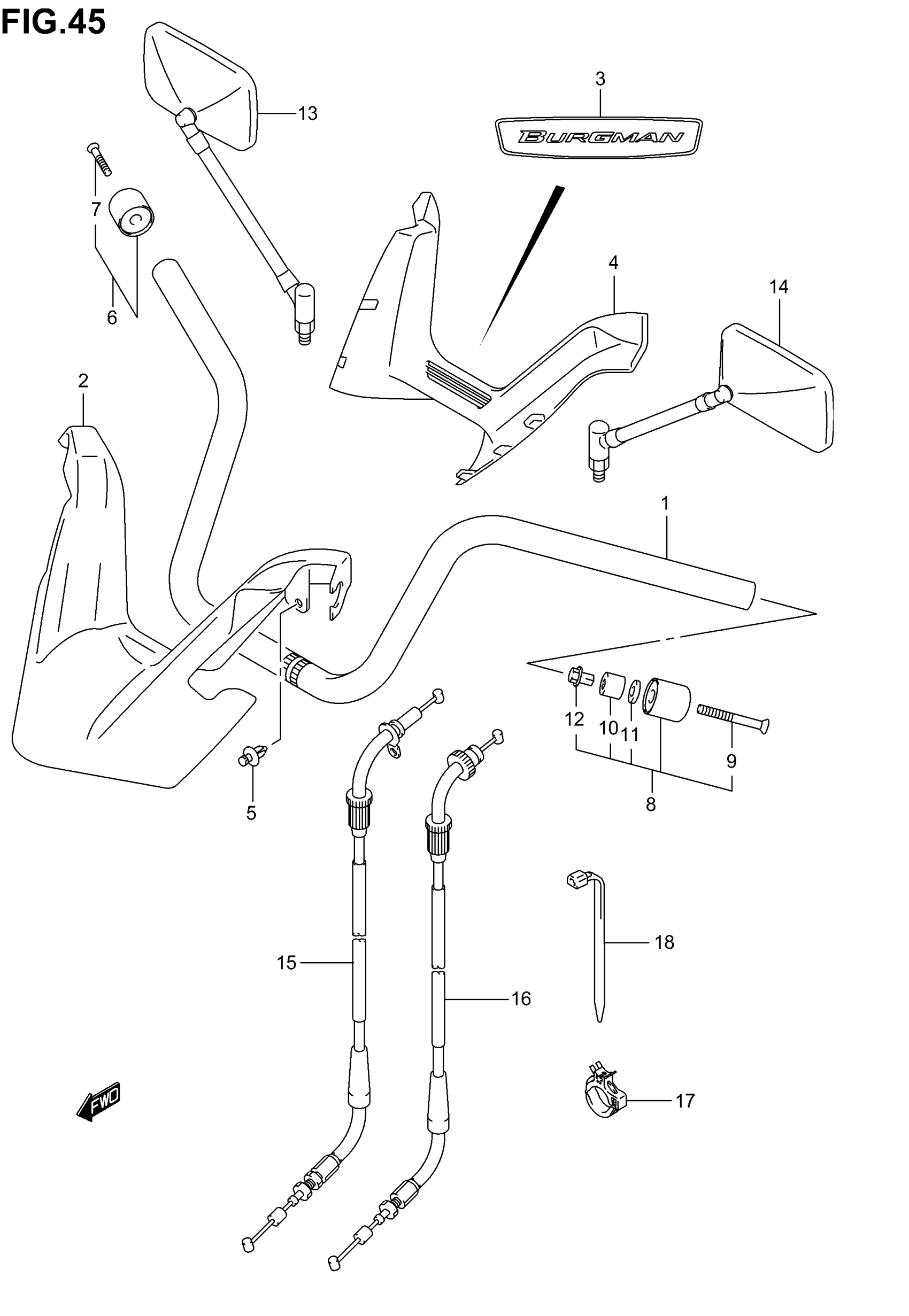

Suzuki AN400 (2006) HANDLEBAR (MODEL K3) Diagram

#

Description
Price

1

HANDLEBAR

56110-14G00

Unavailable

2

COVER, HANDLE FRONT (GRAY)

56311-14G01-Y0J

Unavailable

3

EMBLEM

68281-15F50

$44.60

4

COVER, HANDLE REAR (GRAY)

56321-14G01-Y0J

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

BALANCER SET,HA | Includes Item(s) 7 This part replaces 56200-07820.

56200-07821

$79.23

7

SCREW This part replaces 02122-06403.

02122-0640A

$3.08

8

BALANCER SET,HN | Includes Item(s) 9 - 12 This part replaces 56200-14830.

56200-14833

$55.78

9

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

$2.77

10

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

11

WASHER

09160-06131

$2.53

12

NUT This part replaces 56273-10G00.

56273-10G10

$7.92

13

MIRROR ASSY,RR This part replaces 56500-03F70.

56500-03FD1

$183.53

14

MIRROR ASSY,REA This part replaces 56600-03F70.

56600-03FD1

$203.08

15

CABLE ASSY,THRO This part replaces 58300-14G02.

58300-14G03

Unavailable

16

CABLE ASSY,THRO This part replaces 58300-14G12.

58300-14G13

Unavailable

17

CLAMP

09403-20403

$4.00

17

CLAMP

09403-25401

Unavailable

18

CLAMP

09407-25401

$4.21
