2005 Kawasaki 800 SX-R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

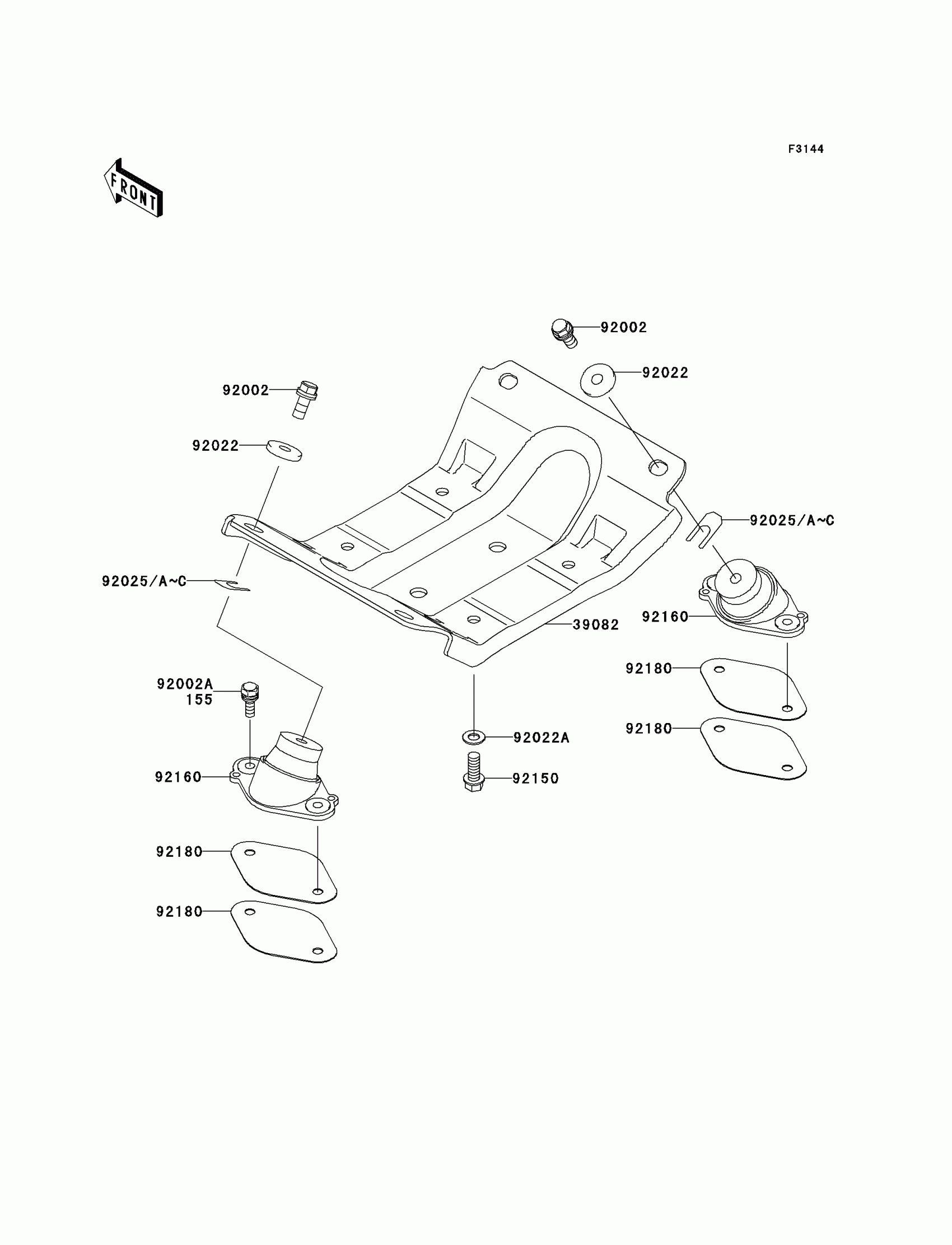

2005 Kawasaki 800 SX-R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

155

1

$5.21

In stock

39082

MOUNT-ENGINE

39082-3723

1
Out of stock

92002

BOLT,10X25

92002-3770

1
Out of stock

92022

WASHER,32X10.5X4

92022-3023

1
Out of stock

92022A

WASHER,10.2X20X1.5

92022-3742

1
Out of stock

92025

SHIM,T=0.3MM

92025-3705

—
Out of stock

92025A

SHIM,T=0.5MM

92025-3706

—
Out of stock

92025B

SHIM,T=1.0MM

92025-3707

—
Out of stock

92025C

SHIM,T=1.5MM

92025-3708

—
Out of stock

92150

BOLT,10X25

92150-3842

1

$7.81

In stock

92160

DAMPER,ENGINE MOUNT

92160-3761

1
Out of stock

92180

SHIM,T=1.0

92180-3715

—

$7.56

In stock
