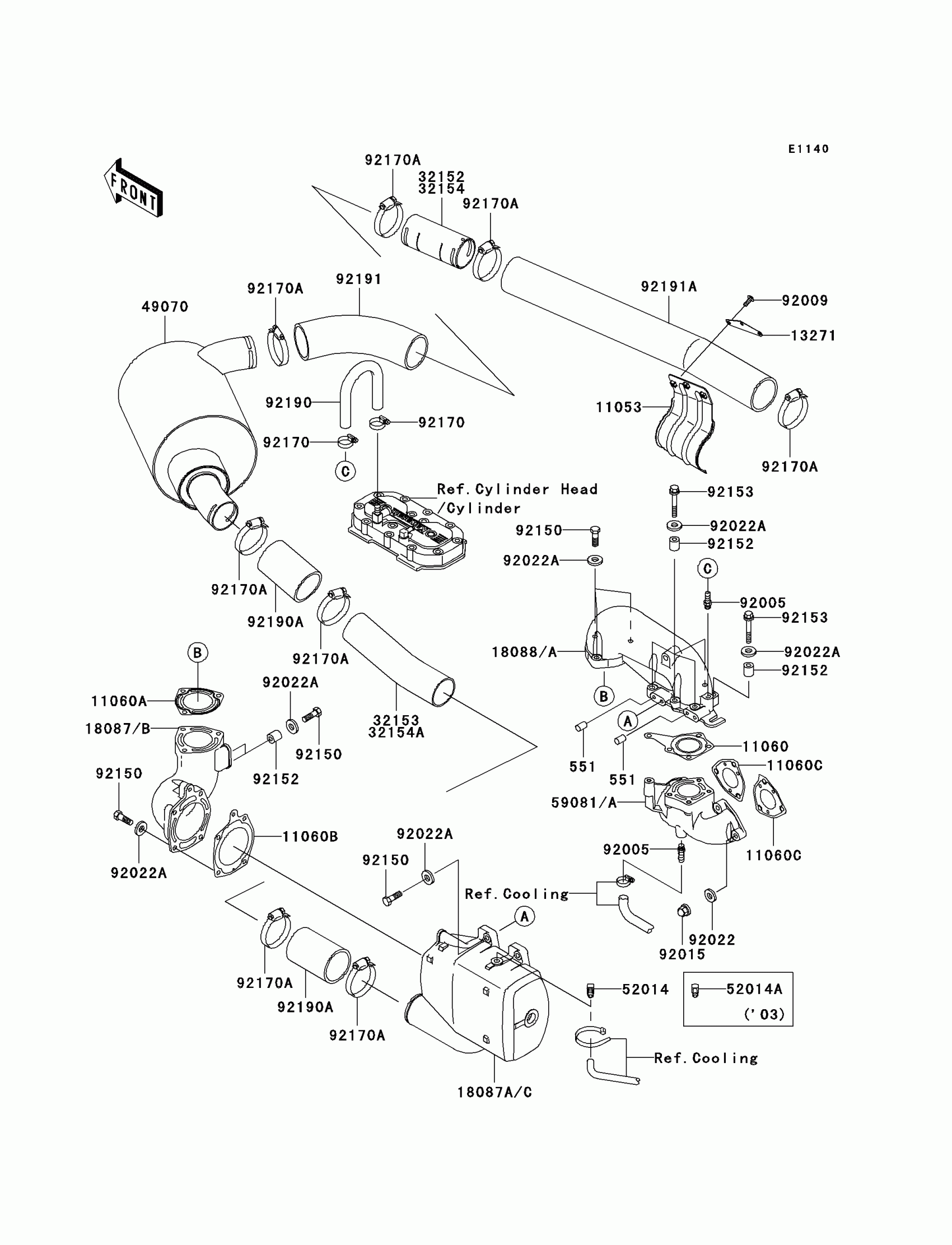

Kawasaki 800 SX-R Muffler(s) Diagram

#

Description
Price

551

PIN-DOWEL

551R0812

$6.04

11053

BRACKET

11053-3728

$58.29

11060

GASKET,EXHAUST

11060-3712

$32.15

11060A

GASKET,MUFFLER,FR

11060-3713

$30.57

11060B

GASKET,MUFFLER CHAMBER

11060-3714

$34.90

11060C

GASKET,EXHAUST MANIFOLD

11060-3759

$13.46

13271

PLATE

13271-3872

$8.51

18087B

MUFFLER,FR

18087-3705

$276.07

18087C

MUFFLER,RR

18087-3706

$227.17

18088A

PIPE-EXHAUST

18088-3722

$269.49

32154

PIPE

32154-3709

$58.64

32154A

PIPE

32154-3710

Unavailable

49070

MUFFLER-COMP

49070-3743

$712.41

52014

ELBOW

52014-3708

$37.06

59081A

MANIFOLD-EXHAUST

59081-3742

$848.58

92005

FITTING,HOSE

92005-3712

$10.71

92009

SCREW,6X20

92009-3870

$3.92

92015

NUT,CAP,8MM

92015-1371

$3.81

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,8.2X18X1.5

92022-3743

$3.22

92150

BOLT,8X35

92150-3833

$7.52

92152

COLLAR

92152-3736

$5.82

92153

BOLT

92153-1276

$2.04

92170

CLAMP

92170-3718

$10.33

92170A

CLAMP

92170-3754

$12.71

92190

TUBE,HEAD-EXHAUST PIPE

92190-3829

$18.14

92190A

TUBE,CHAMBER-MUFLLER

92190-3950

$27.39

92191

TUBE,WATER MUFFLER-PIPE

92191-3953

$30.15

92191A

TUBE,PIPE-TAILPIPE

92191-3954

$111.71
