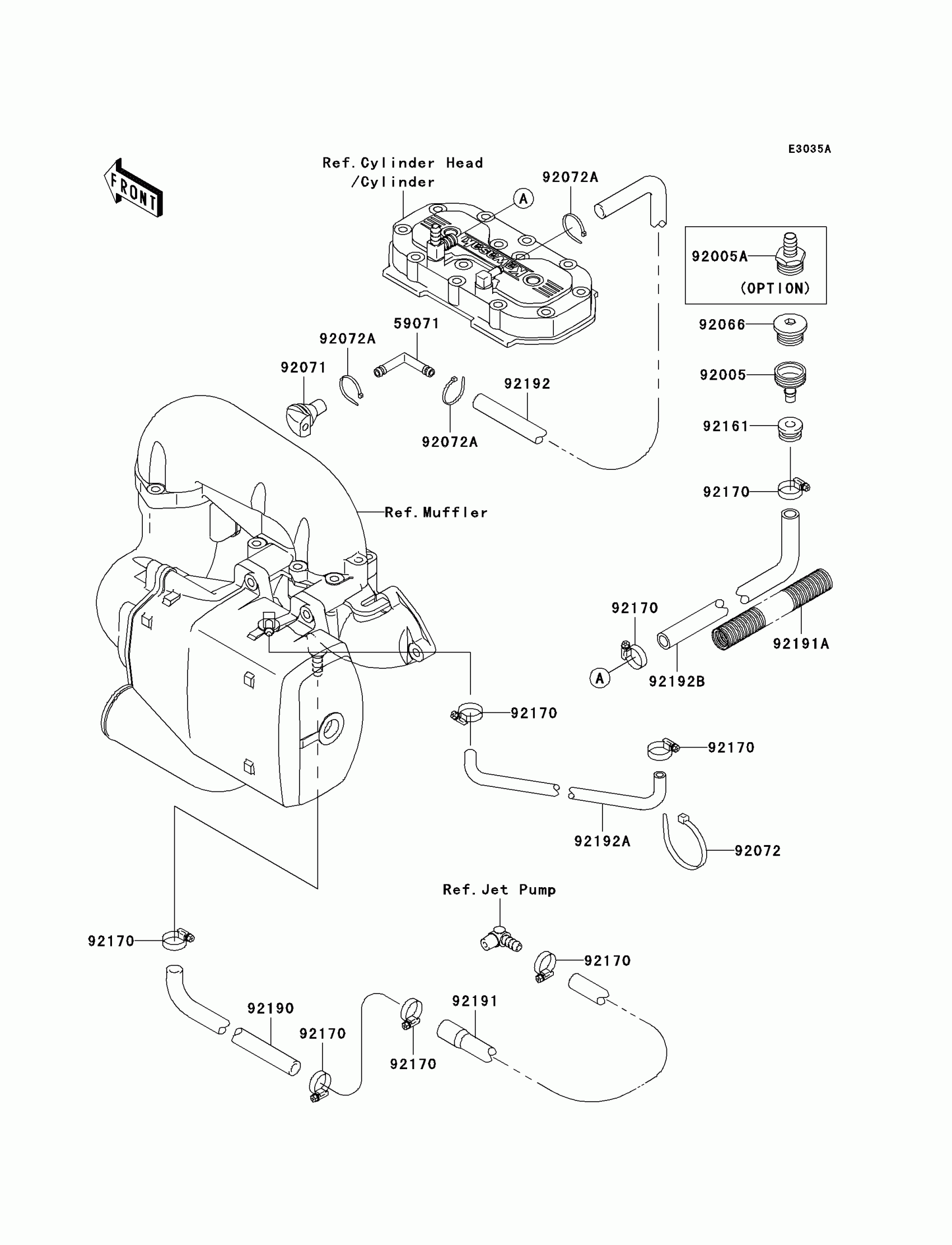

Kawasaki 800 SX-R Cooling(A2/A3) Diagram

Description

Price

59071

JOINT

59071-3736

$12.36

92005

FITTING,FLUSH

92005-3744

$13.39

92005A

FITTING,FLUSH

92005-3748

$9.34

92066

PLUG,FLUSH

92066-3784

Unavailable

92071

GROMMET

92071-3815

$4.34

92072

BAND,L=188

92072-1239

$1.51

92072A

BAND,L=99

92072-3871

Unavailable

92161

DAMPER

92161-0016

$2.56

92170

CLAMP

92170-3718

$10.76

92190

TUBE,9X16X450

92190-3914

$12.05

92191

TUBE,PUMP-HULL

92191-3722

Unavailable

92191A

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.51

92192

TUBE,7X12X1180

92192-3704

$21.63

92192A

TUBE,MUFFLER-HULL

92192-3720

$23.15

92192B

TUBE,HEAD-FLUSH

92192-3722

Unavailable
