2005 Kawasaki 800 SX-R Crankcase Diagram

← All diagrams

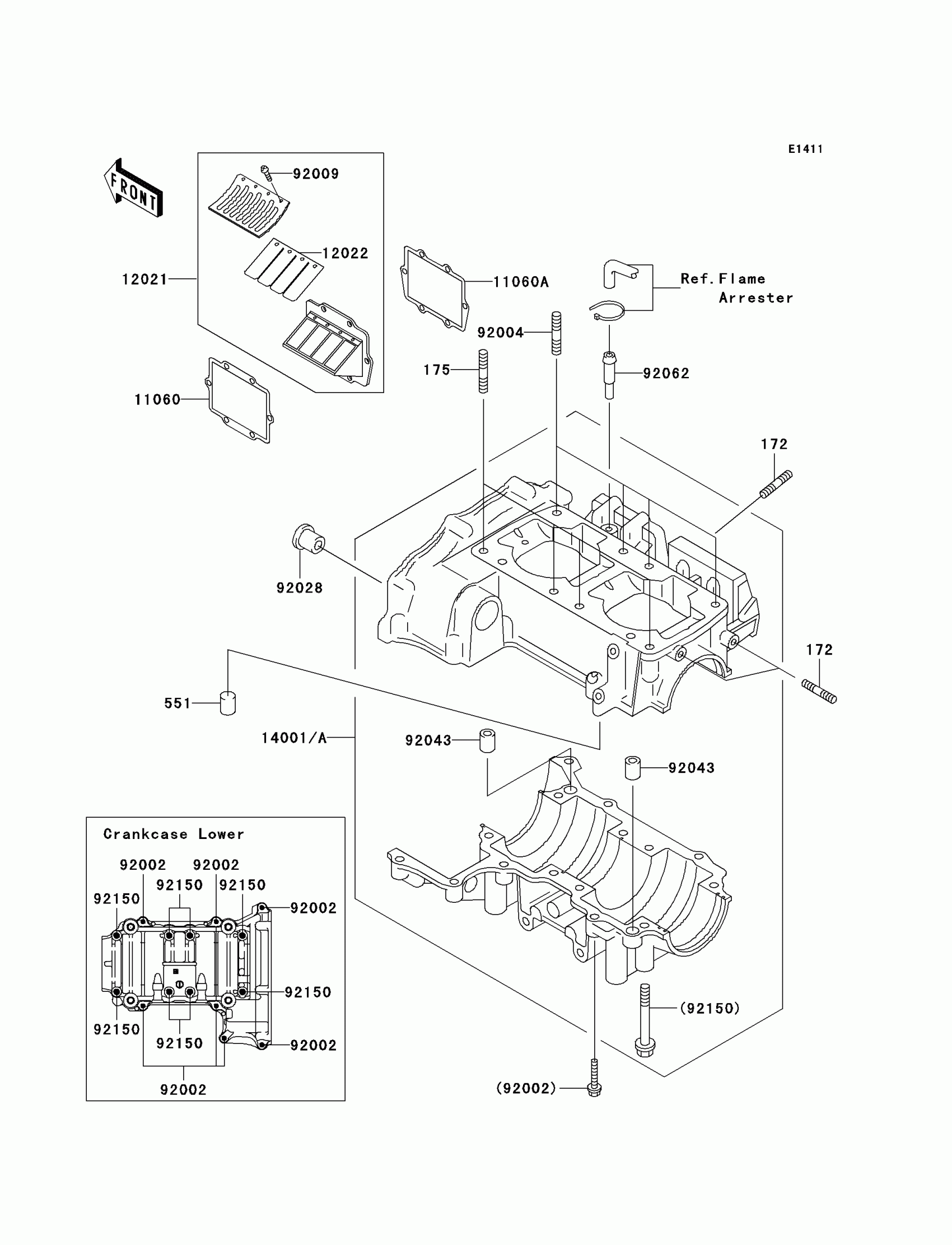

Find the part on the Crankcase diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki 800 SX-R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

172

BOLT-STUD,6X20

172R0620

1

$6.51

In stock

175

1

$8.76

In stock

551

PIN-DOWEL

551R0612

1

$3.72

In stock

11060

GASKET,REED VALVE

11060-3717

1

$15.01

In stock

11060A

GASKET,REED VALVE

11060-3757

1

$15.01

In stock

12021

VALVE-ASSY-REED

12021-3708

1

$160.59

In stock

12022

VALVE-REED

12022-3703

1

$21.29

In stock

14001A

SET-CRANKCASE

14001-5391

1
Out of stock

92002

BOLT,6X30

92002-3726

1
Out of stock

92004

STUD,10X35

92004-3752

1
Out of stock

92009

SCREW,3X6

92009-1371

1
Out of stock

92028

BUSHING

92028-3718

1

$7.48

In stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92062

NOZZLE

92062-3705

1

$7.01

In stock

92150

BOLT,8X65

92150-3708

1

$12.14

In stock
