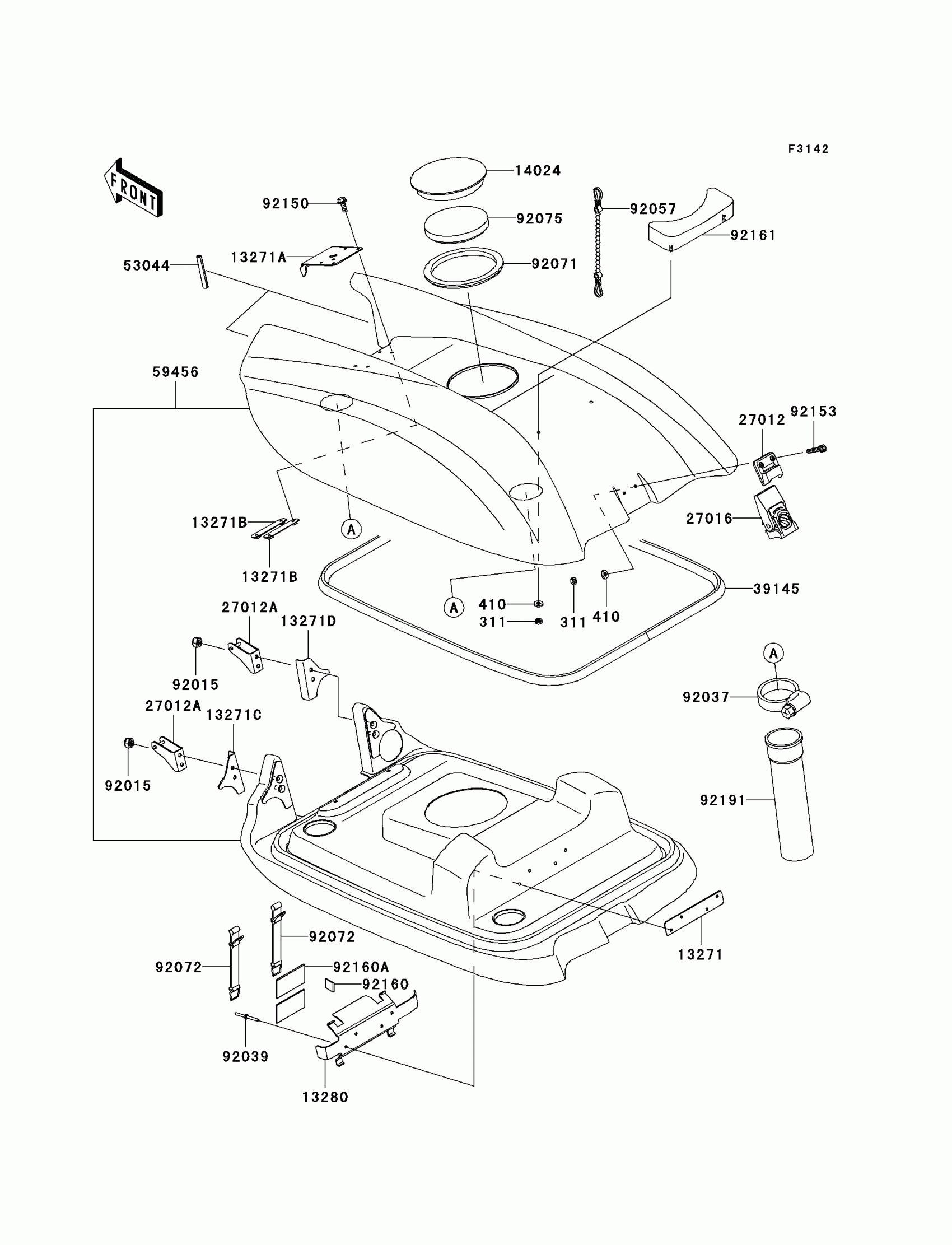

Kawasaki 800 SX-R Engine Hood Diagram

#

Description
Price

311

NUT-HEX,5MM

311R0500

Unavailable

410

W-PLAIN-S,5MM

410S0500

$1.20

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

13271A

PLATE

13271-3885

$18.85

13271B

PLATE

13271-3886

$5.91

13271C

PLATE,LH

13271-3894

$12.15

13271D

PLATE,RH

13271-3895

$12.15

13280

HOLDER,FIRE EXTINGUISHER

13280-3740

$53.38

14024

COVER

14024-3748

$5.92

27012

HOOK

27012-3711

$33.53

27012A

HOOK

27012-3842

$11.38

27016

LOCK-ASSY

27016-3703

$170.09

39145

TRIM-SEAL,L=2156

39145-3781

Unavailable

53044

TRIM,L=120

53044-3767

$4.72

59456

HOOD-COMP-ENGINE,J.WHITE

59456-3730-8C

$579.88

92015

NUT,LOCK,6MM

92015-3766

$4.46

92037

CLAMP

92037-3738

$5.47

92039

RIVET

92039-3783

$6.15

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3742

$7.56

92072

BAND,TOOL CASE

92072-3859

$14.10

92075

DAMPER

92075-3737

$24.34

92150

BOLT,5X16

92150-3778

$3.54

92153

BOLT,SOCKET,5X20

92153-3716

$2.03

92160

DAMPER,25X25

92160-3864

$2.66

92160A

DAMPER

92160-3913

$5.02

92161

DAMPER

92161-3741

$107.40

92191

TUBE

92191-3987

$67.54
