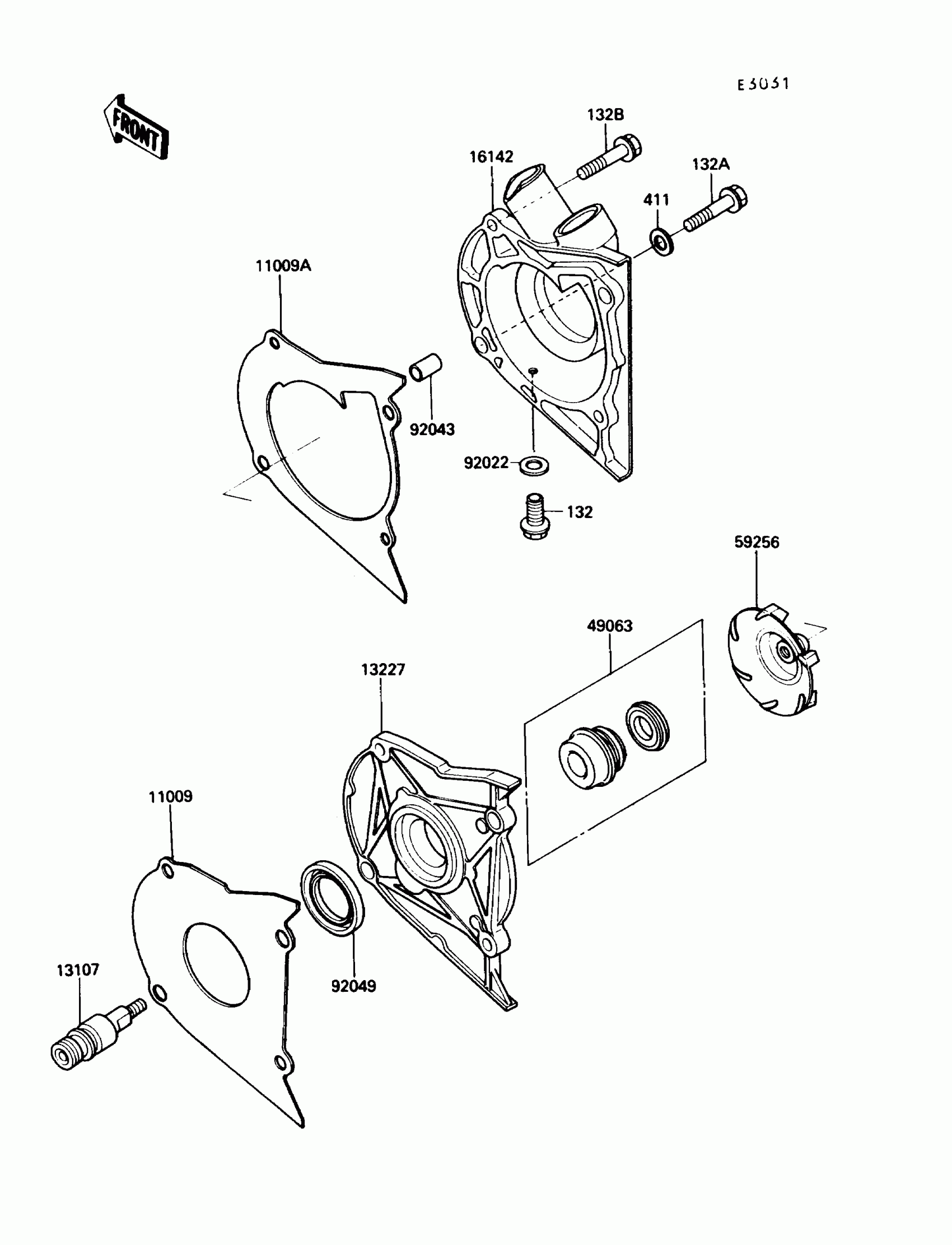

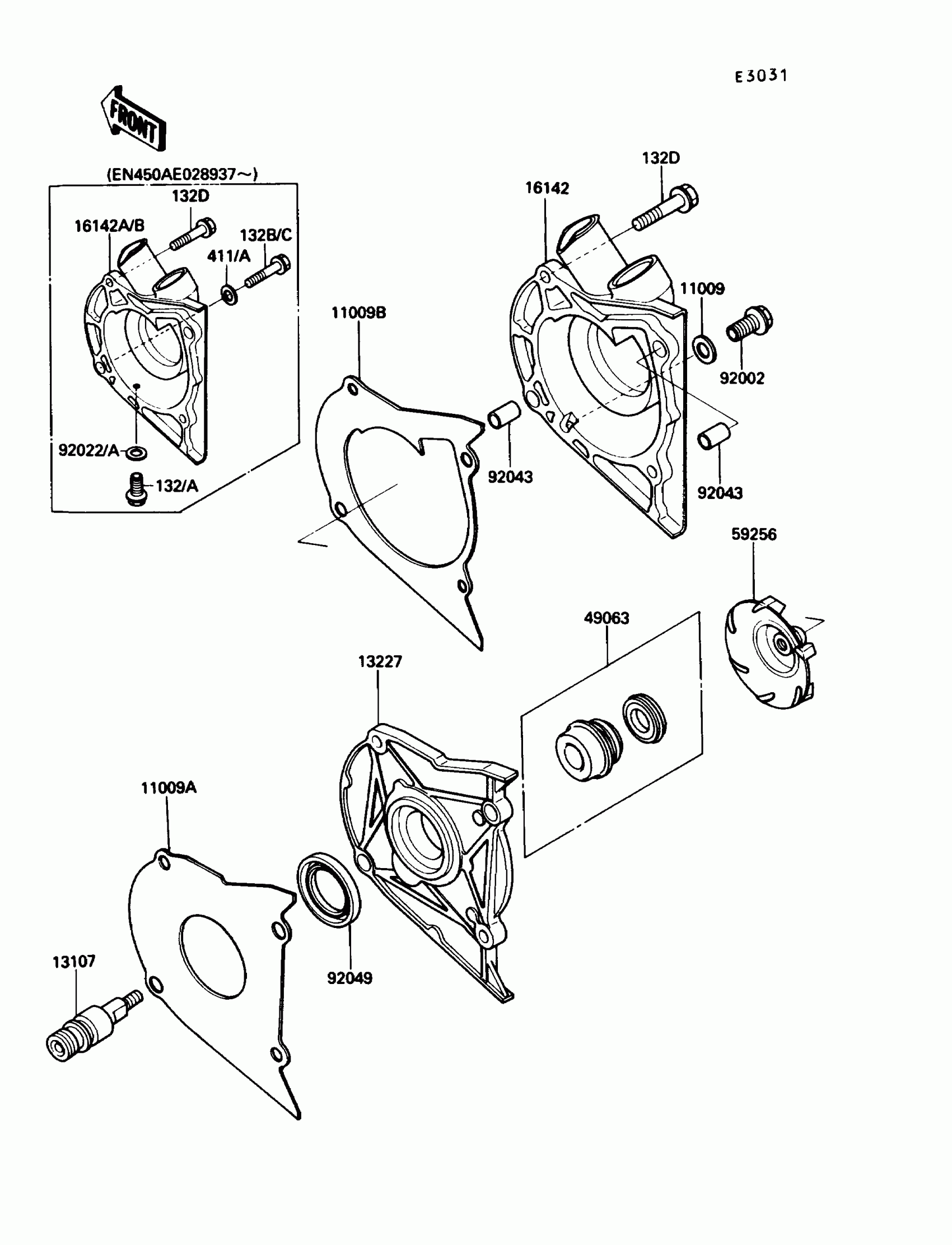

Kawasaki 454 LTD Water Pump Diagram

Description

Price

11009A

GASKET,PUMP HOUSING

11009-1491

Unavailable

11009B

GASKET,PUMP COVER

11009-1492

Unavailable

13107

SHAFT,IMPELLER

13107-1203

$49.94

13227

HOUSING,WATER PUMP

13227-1055

Unavailable

16142A

COVER-PUMP

16142-1079

$162.18

49063

SEAL-MECHANICAL

49063-1054

$12.56

59256

IMPELLER

59256-1060

$32.75

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,SC12365

92049-1215

$12.07

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132D

BOLT-FLANGED-SMALL,6X35

132E0635

$4.61

411

WASHER PLAIN 6MM

411B0600

Unavailable
