1990 Kawasaki 454 LTD Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1990 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

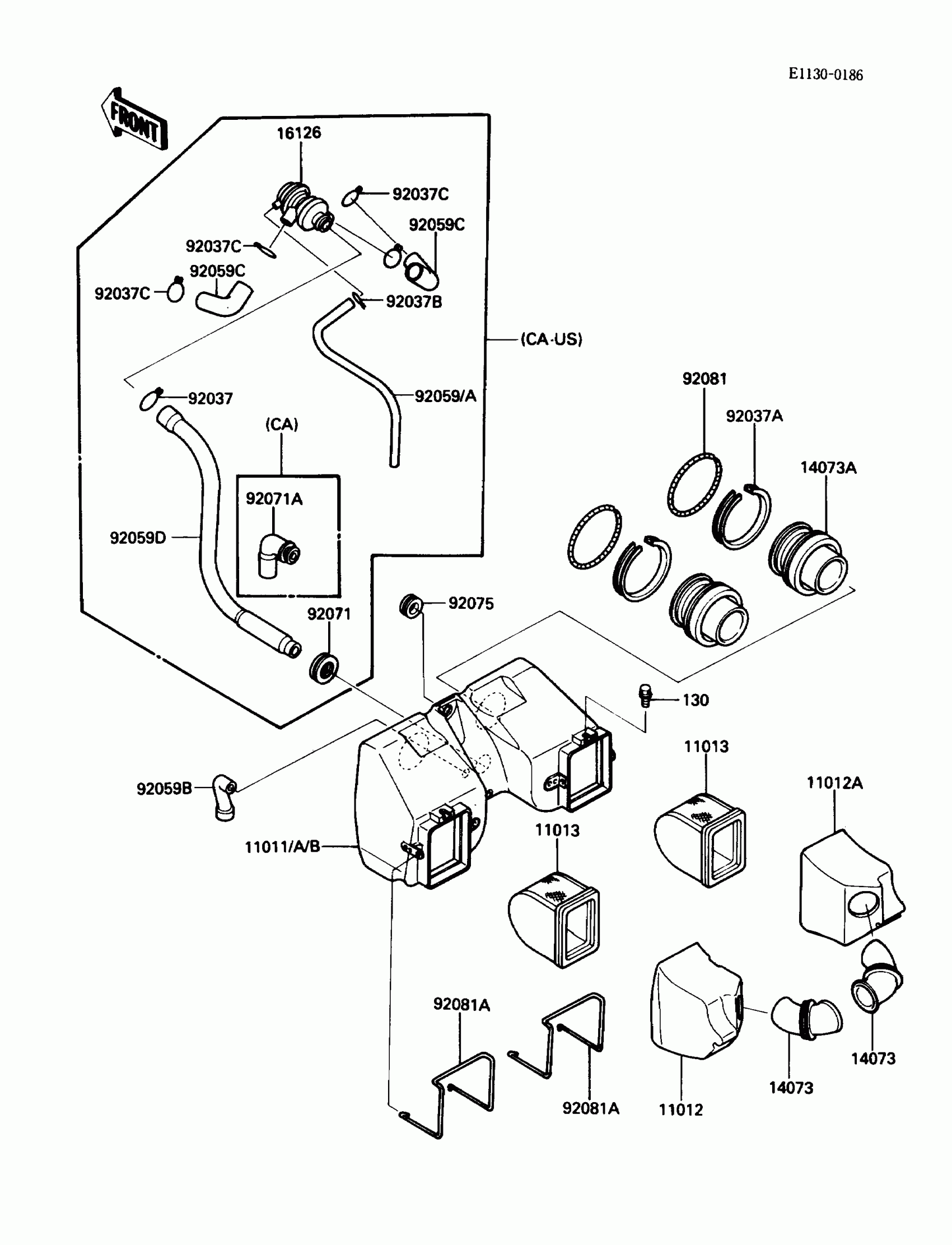

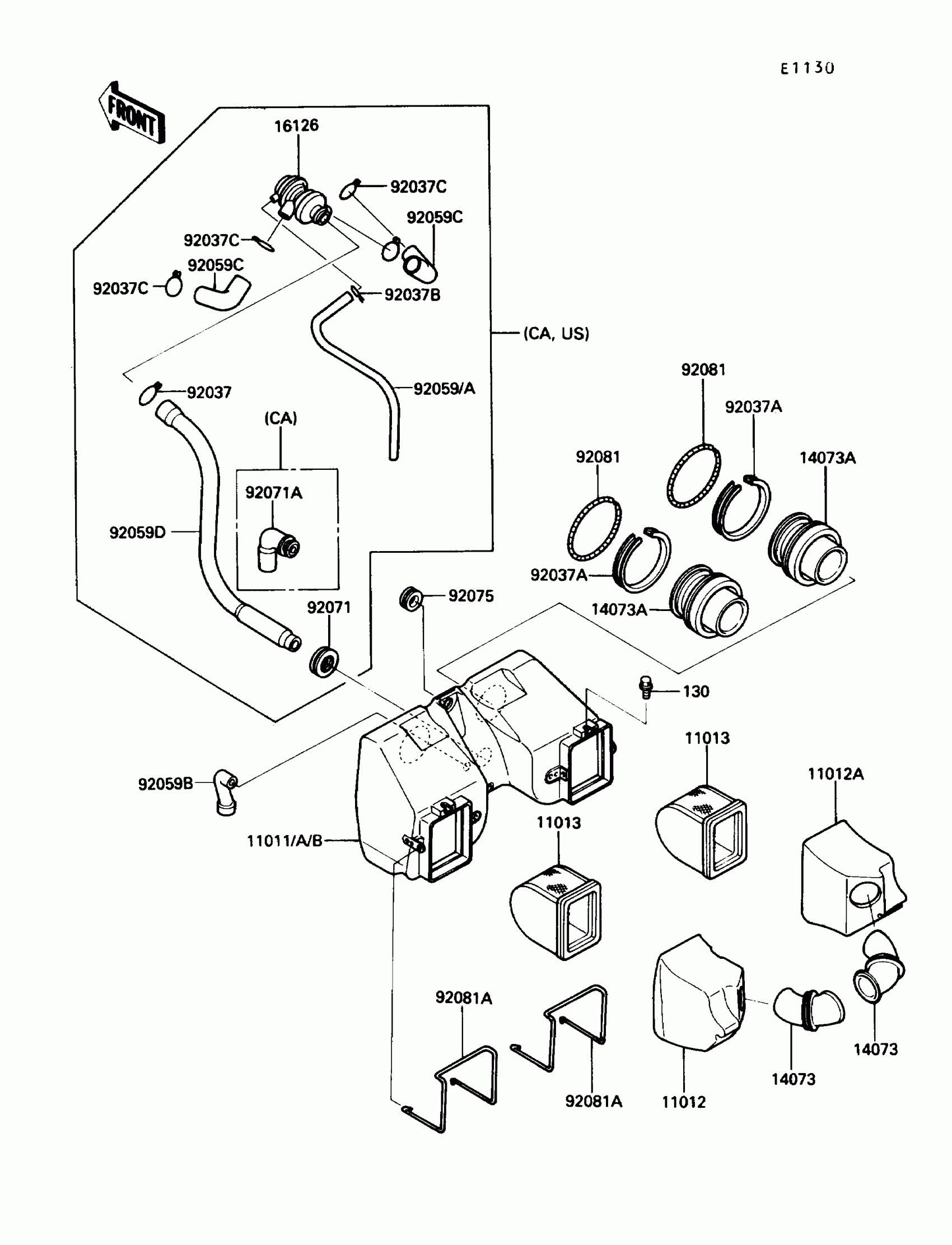

1990 Kawasaki 454 LTD Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-1184

1
Out of stock

11011A

CASE-AIR FILTER

11011-1188

1
Out of stock

11011B

CASE-AIR FILTER

11011-1198

1
Out of stock

11012

CAP,LH

11012-1429

1
Out of stock

11012A

CAP,RH

11012-1430

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1126

1

$19.88

In stock

14073

DUCT,INTAKE

14073-1204

1
Out of stock

14073A

DUCT,CARBURATOR

14073-1205

1
Out of stock

16126

VALVE,AIR SWITCH

16126-1005

1
Out of stock

92037

CLAMP,TUBE

92037-1076

1

$7.14

In stock

92037A

CLAMP,69MM

92037-1631

1

$12.08

In stock

92037B

CLAMP

92037-1712

1

$3.97

In stock

92037C

CLAMP,TUBE

92037-213

1

$3.43

In stock

92059

TUBE,4X9X220

92059-1040

1

$9.85

In stock

92059A

TUBE,4X9X290

92059-1043

1

$9.85

In stock

92059B

TUBE,BREATHER

92059-1528

1
Out of stock

92059C

1

$14.36

In stock

92059D

1

$25.56

In stock

92071

GROMMET,AIR FILTER

92071-1028

1

$5.78

In stock

92071A

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92075

DAMPER

92075-1185

1

$4.17

In stock

92081

SPRING,COIL,BLACK

92081-1457

1

$9.04

In stock

92081A

SPRING,CAP

92081-1784

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock
