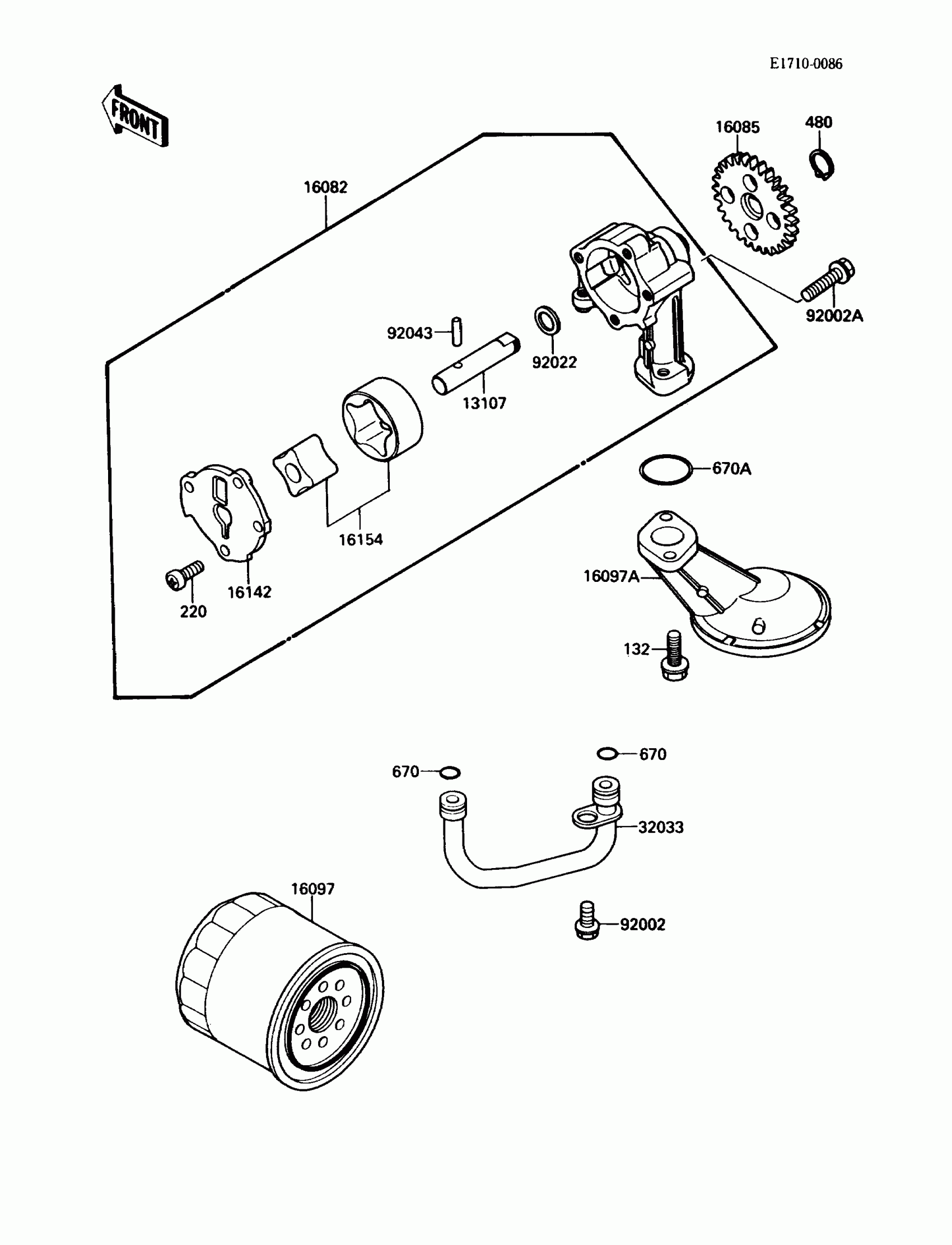

Kawasaki 454 LTD Oil Pump(EN450AE029480&NAMI.) Diagram

Description

Price

13107

SHAFT,OIL PUMP

13107-1202

Unavailable

16082

PUMP-ASSY-OIL

16082-1085

$207.46

16085

GEAR,OIL PUMP

16085-1143

$140.73

16097

FILTER-ASSY-OIL

16097-1054

$11.00

16097A

FILTER-ASSY-OIL

16097-1056

$16.54

16142

COVER-PUMP,OIL

16142-1077

Unavailable

16154

ROTOR-PUMP,OIL

16154-1066

$62.06

32033

PIPE

32033-1540

$62.23

92002

BOLT,6X12

92002-1572

$3.20

92002A

BOLT,6X25

92002-1609

$4.19

92022

WASHER,11.2X15X1

92022-311

$3.53

92043

PIN,DOWEL,4X15.8

92043-1054

$5.12

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

670

O RING,10MM

670B2010

$1.13

670A

O RING,22MM

670D2022

Unavailable
