1989 Kawasaki 454 LTD Ignition System Diagram

← All diagrams

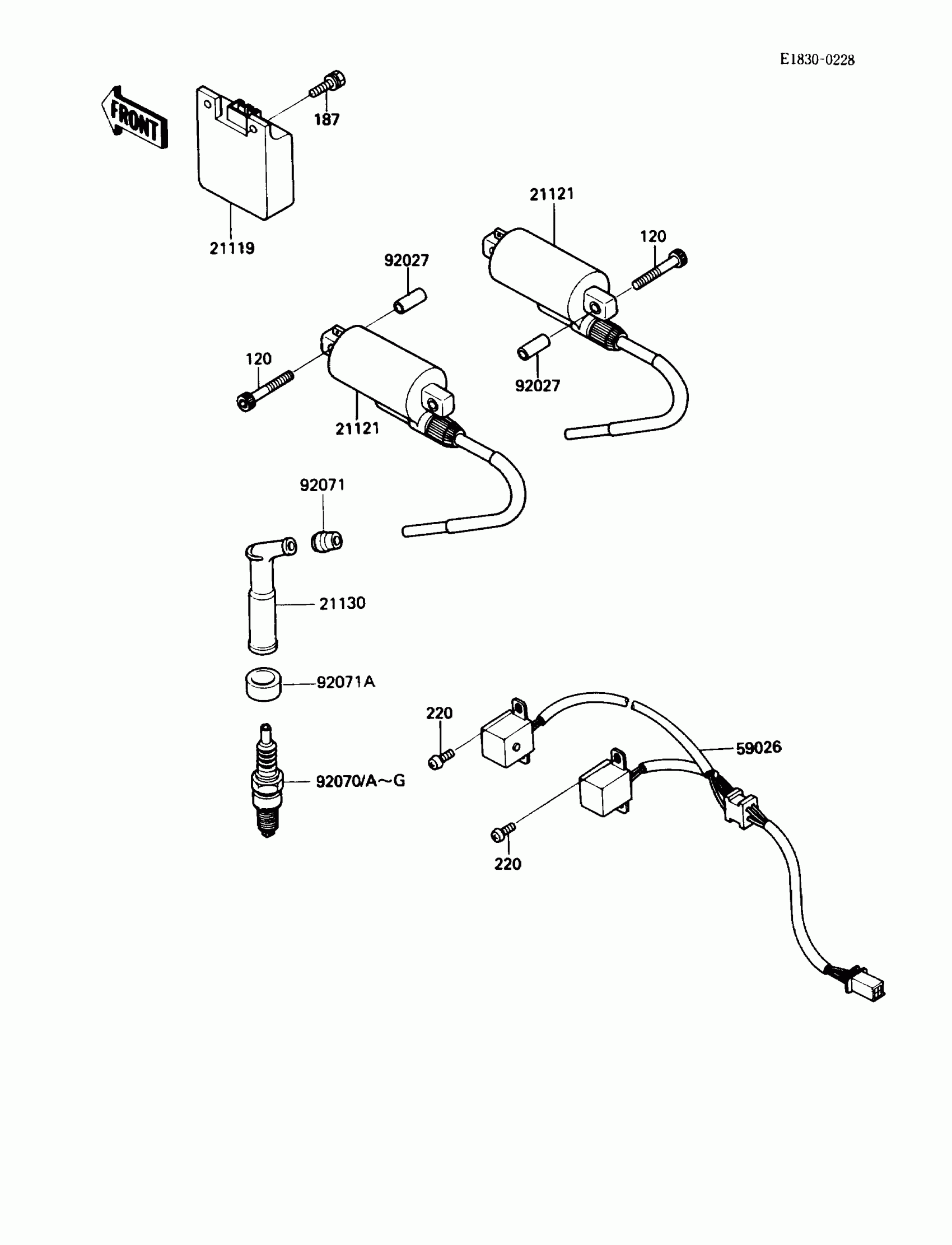

Find the part on the Ignition System diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1219

1
Out of stock

21121

COIL-IGNITION

21121-1130

1

$184.81

In stock

21130

CAP-SPARK PLUG

21130-1002

1

$52.70

In stock

59026

COIL-PULSING

59026-1066

1

$181.85

In stock

92027

COLLAR,6.8X10X23

92027-1870

1
Out of stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

PLUG-SPARK,D8EA(NGK)

92070-1011

1
Out of stock

92070B

1

$9.24

In stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92070D

1

$2.74

In stock

92070E

Not Available As Spare Part - Friction Washer

1
Out of stock

92070F

Not Available As Spare Part - Friction Washer

1
Out of stock

92070G

1

$2.92

In stock

92071

1

$4.88

In stock

92071A

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

120

BOLT-SOCKET,6X45

120P0645

1
Out of stock

187

BOLT-UPSET-WSP

187G0616

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
