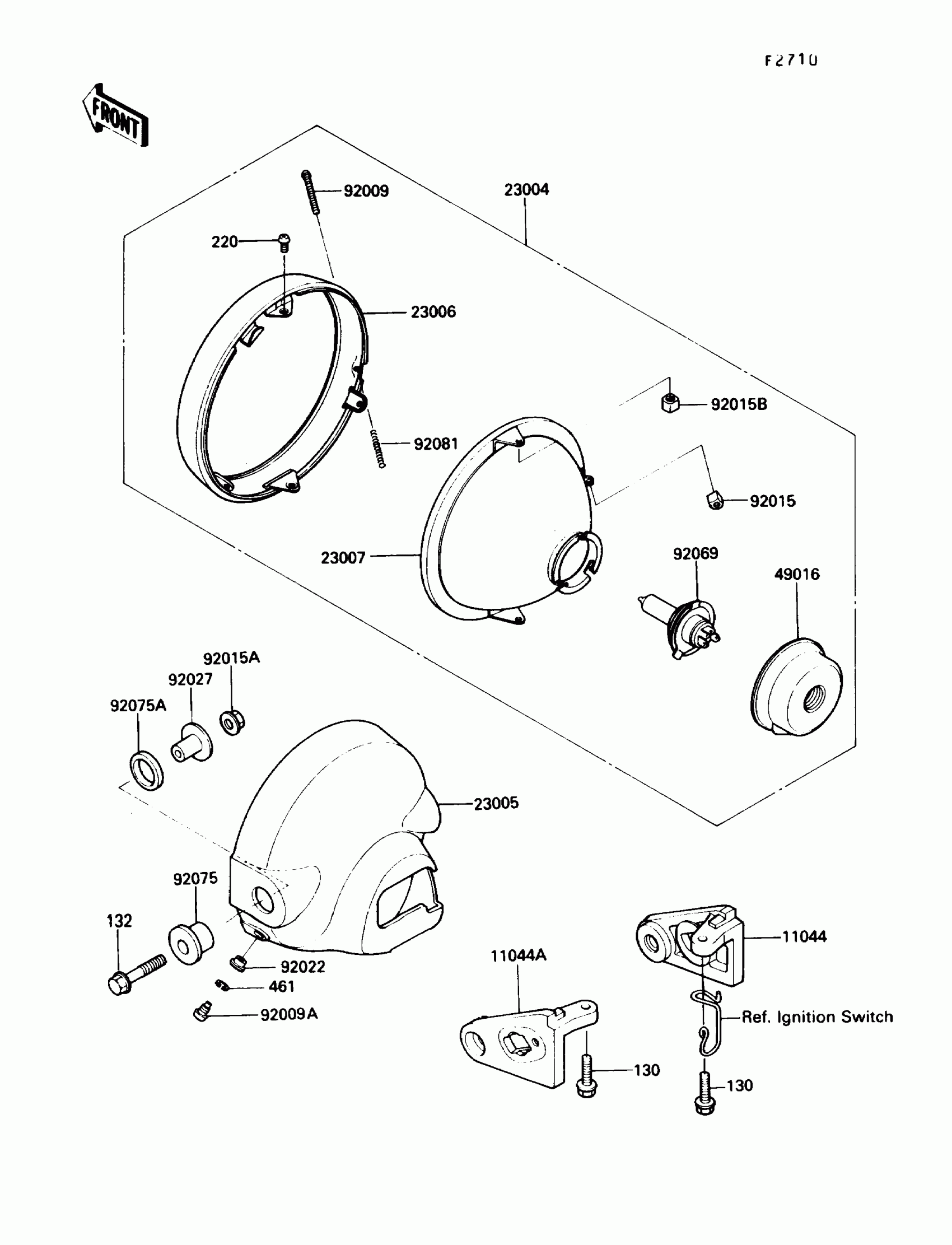

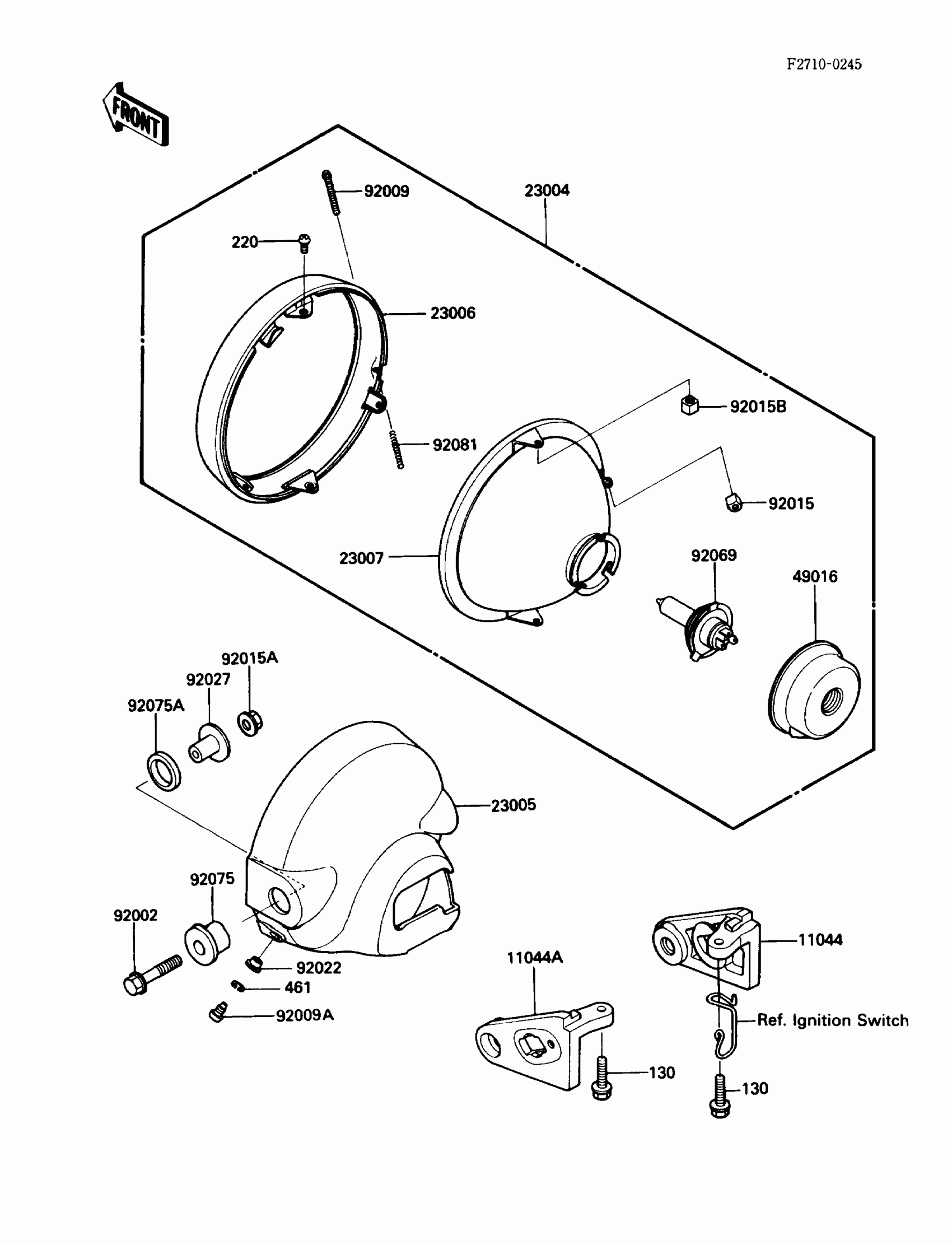

Find the part on the Headlight diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,HEAD LAMP,RH

11043-1941

1
Out of stock

11044A

BRACKET,HEAD LAMP,LH

11043-1942

1
Out of stock

23004

LAMP-HEAD

23004-1171

1

$423.55

In stock

23005

1

$130.18

In stock

23006

RIM-LAMP

23006-1055

1

$90.35

In stock

23007

LENS-COMP,HEAD LAMP

23007-1115

1

$157.05

In stock

49016

1

$11.85

In stock

92002

BOLT,FLANGED,8X40

92002-1503

1

$7.14

In stock

92009

SCREW,4X52

92009-1033

1
Out of stock

92009A

SCREW,5MM

92011-024

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015B

NUT,5MM

92015-1157

1
Out of stock

92022

WASHER

23021-010

1

$3.43

In stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92081

1

$4.10

In stock

130

1

$7.15

In stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
