1989 Kawasaki 454 LTD Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

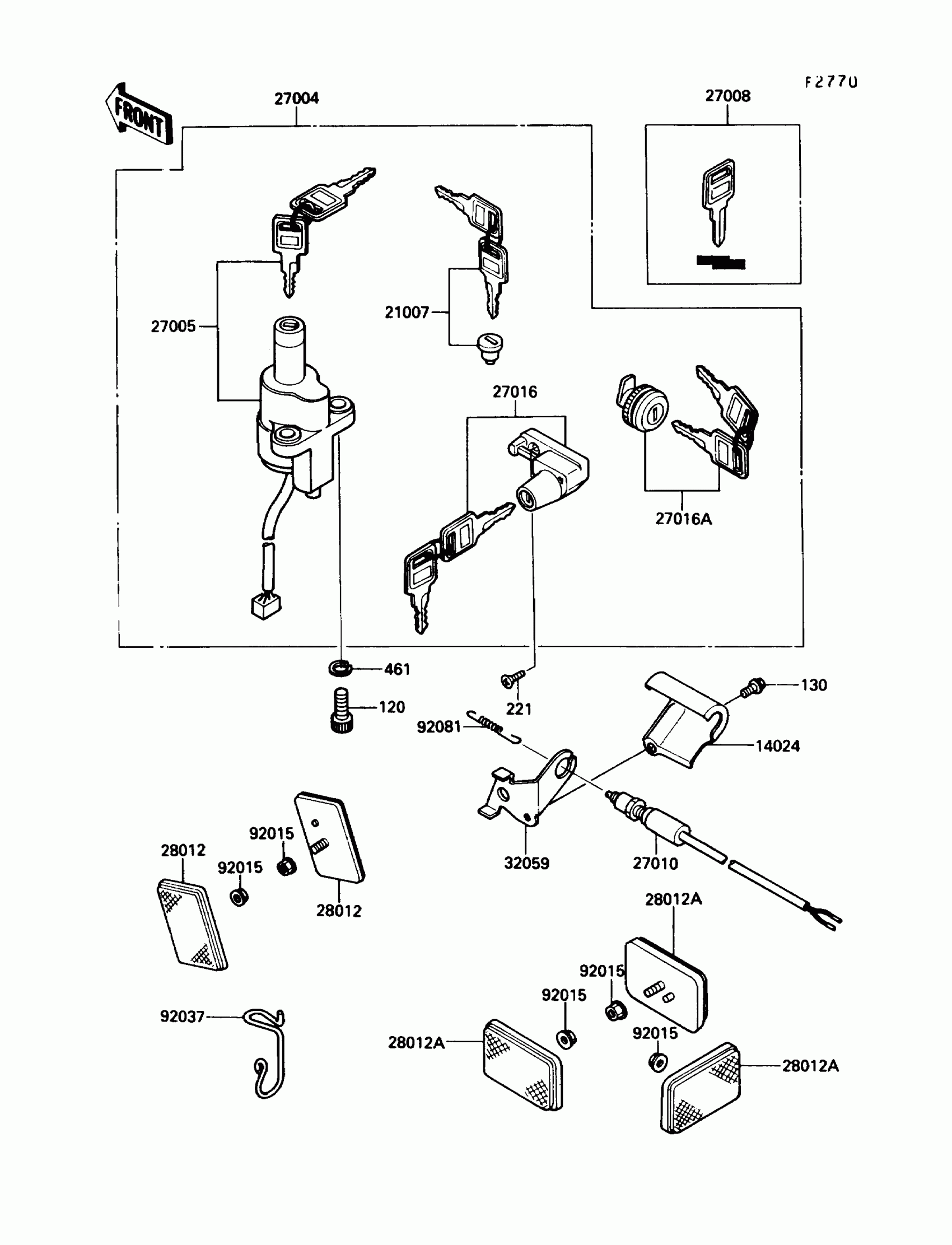

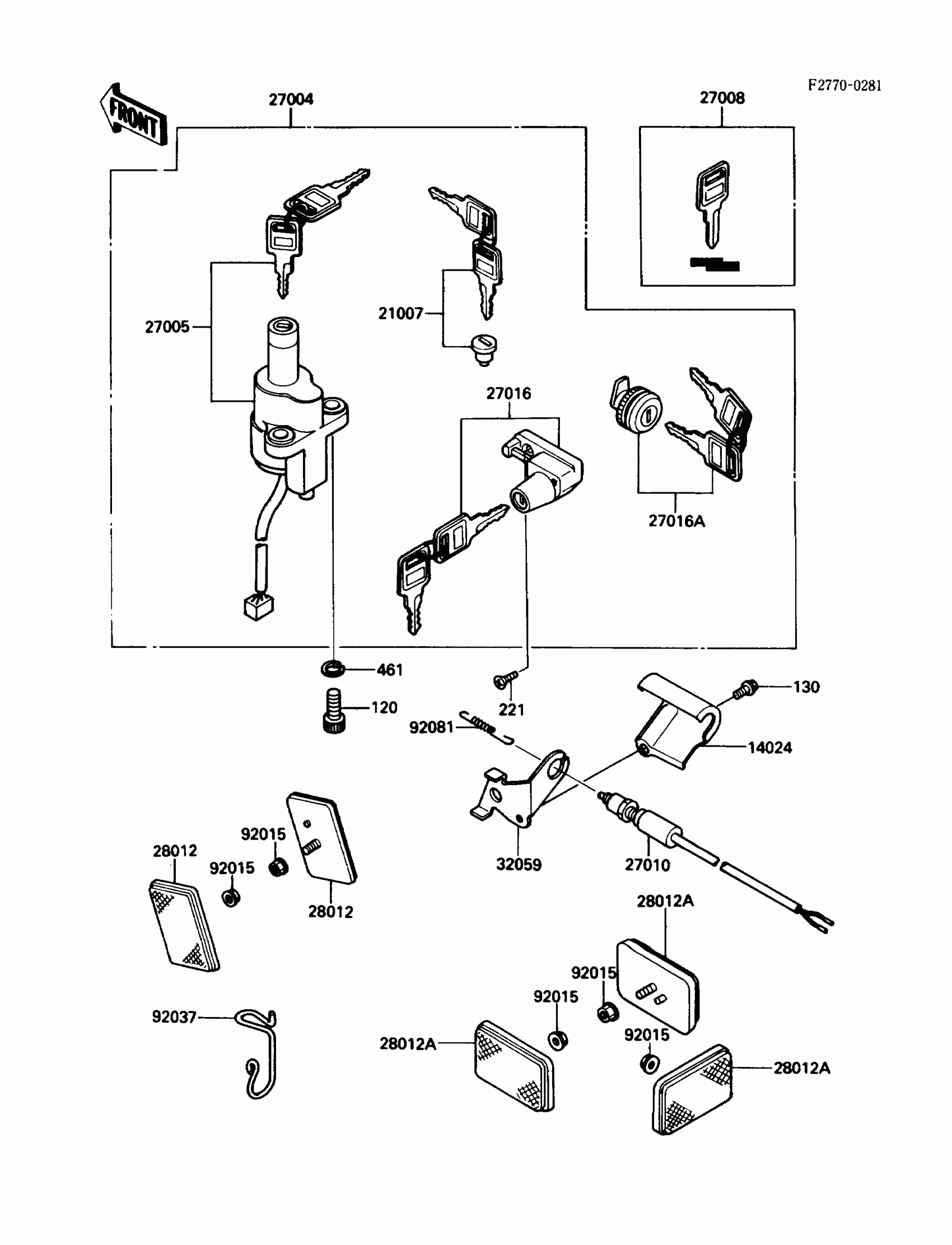

1989 Kawasaki 454 LTD Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,BRAKE SWITCH

14025-1706

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5005

1

$101.48

In stock

27004

SWITCH-ASSY

27004-5253

1

$391.15

In stock

27005

SWITCH-ASSY-IGNITION

27005-5044

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,BRAKE LAMP

27010-025

1

$27.60

In stock

27016

LOCK-ASSY,HELMET

27016-5060

1

$106.07

In stock

27016A

LOCK-ASSY,BOX

27016-5081

1

$106.07

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1051

1

$24.63

In stock

32059

1

$7.85

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92037

CLAMP,HARNESS

92037-1686

1

$5.46

In stock

92081

1

$4.34

In stock

120

BOLT-SOCKET,8X22

120T0822

1
Out of stock

130

BOLT-FLANGED

130C0608

1
Out of stock

221

SCREW-CSK-CROS

221C0516

1
Out of stock

461

WASHER-SPRING

461L0800

1
Out of stock
