1989 Kawasaki 454 LTD Chassis Electrical Equipment Diagram

← All diagrams

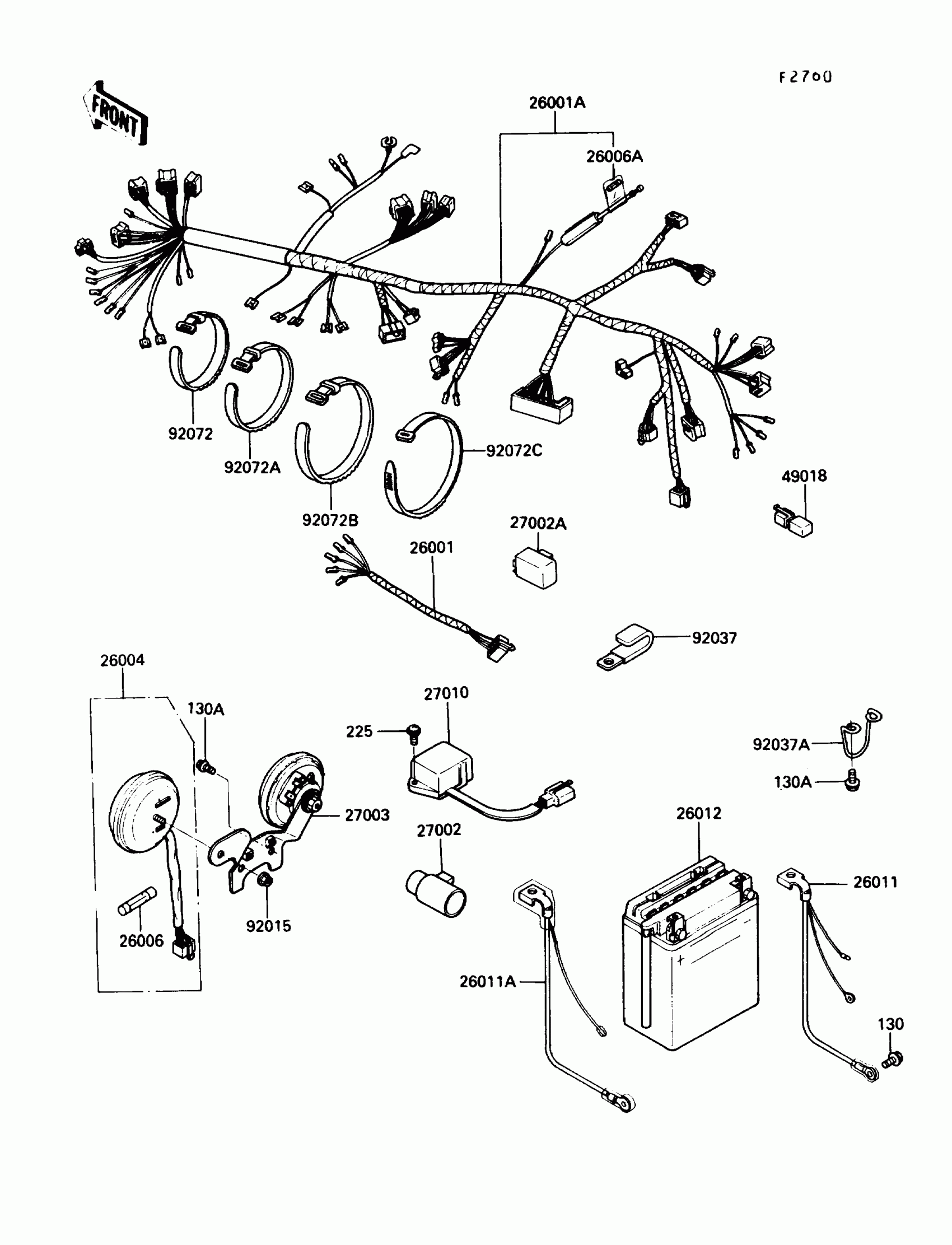

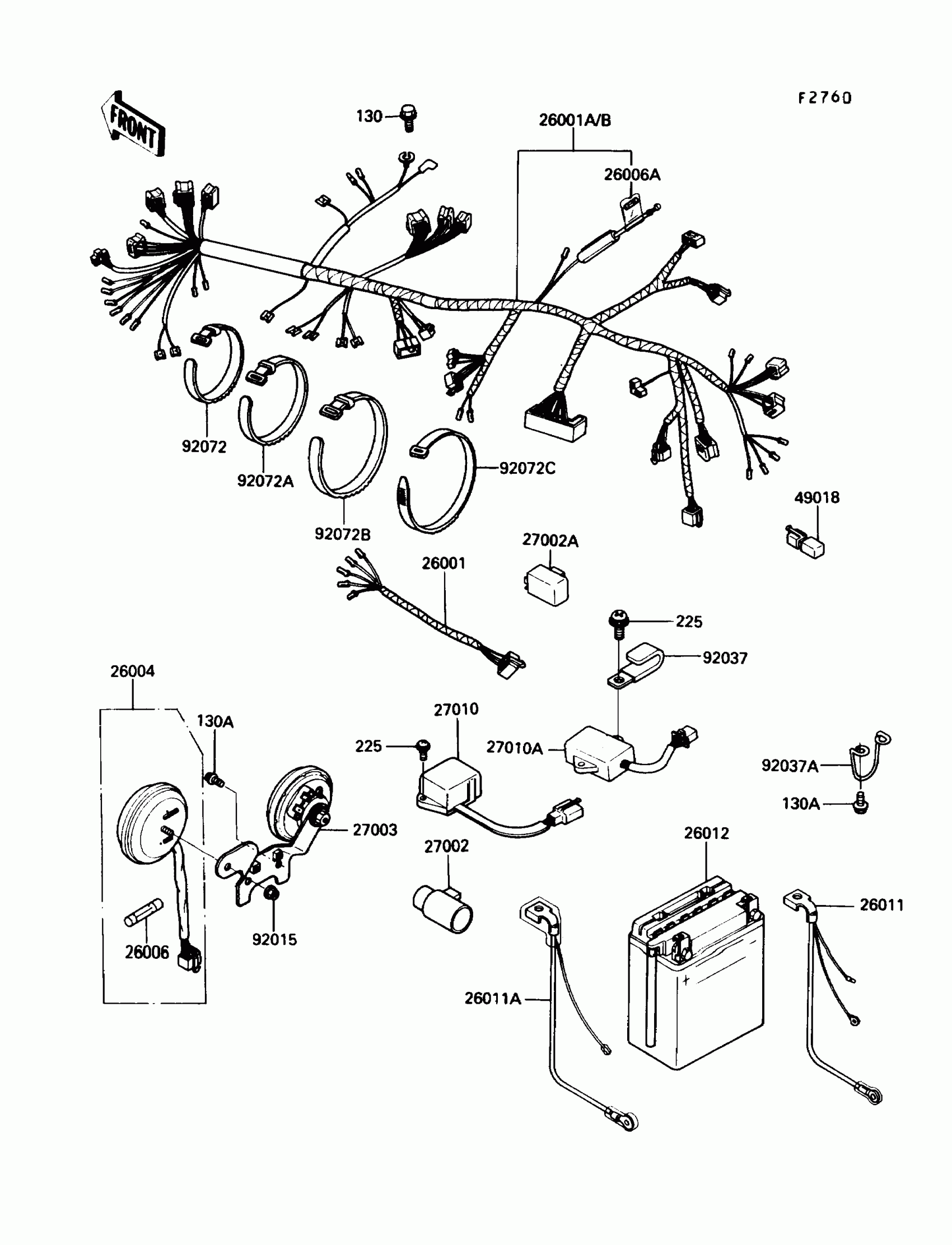

Find the part on the Chassis Electrical Equipment diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS,RR

26001-1689

1
Out of stock

26001B

HARNESS,MAIN

26001-1960

1
Out of stock

26004

FUSE-ASSY

26004-1059

1

$131.71

In stock

26006

FUSE,10A,L=25

26006-003

1

$3.74

In stock

26006A

FUSE,30A,L=30

26006-1059

1

$3.94

In stock

26011

WIRE-LEAD,BATTERY(-)

26011-1291

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1296

1
Out of stock

26012

1

$72.54

In stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

27002A

1

$53.03

In stock

27003

HORN

27003-1217

1

$80.46

In stock

27010

1

$228.55

In stock

49018

DIODE

49018-1053

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1237

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,HARNESS

92037-1663

1
Out of stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=186

92072-056

1

$3.97

In stock

92072B

BAND,L=278

92072-1087

1
Out of stock

92072C

BAND,L=365

92072-1197

1

$7.71

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X14

130C0614

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
