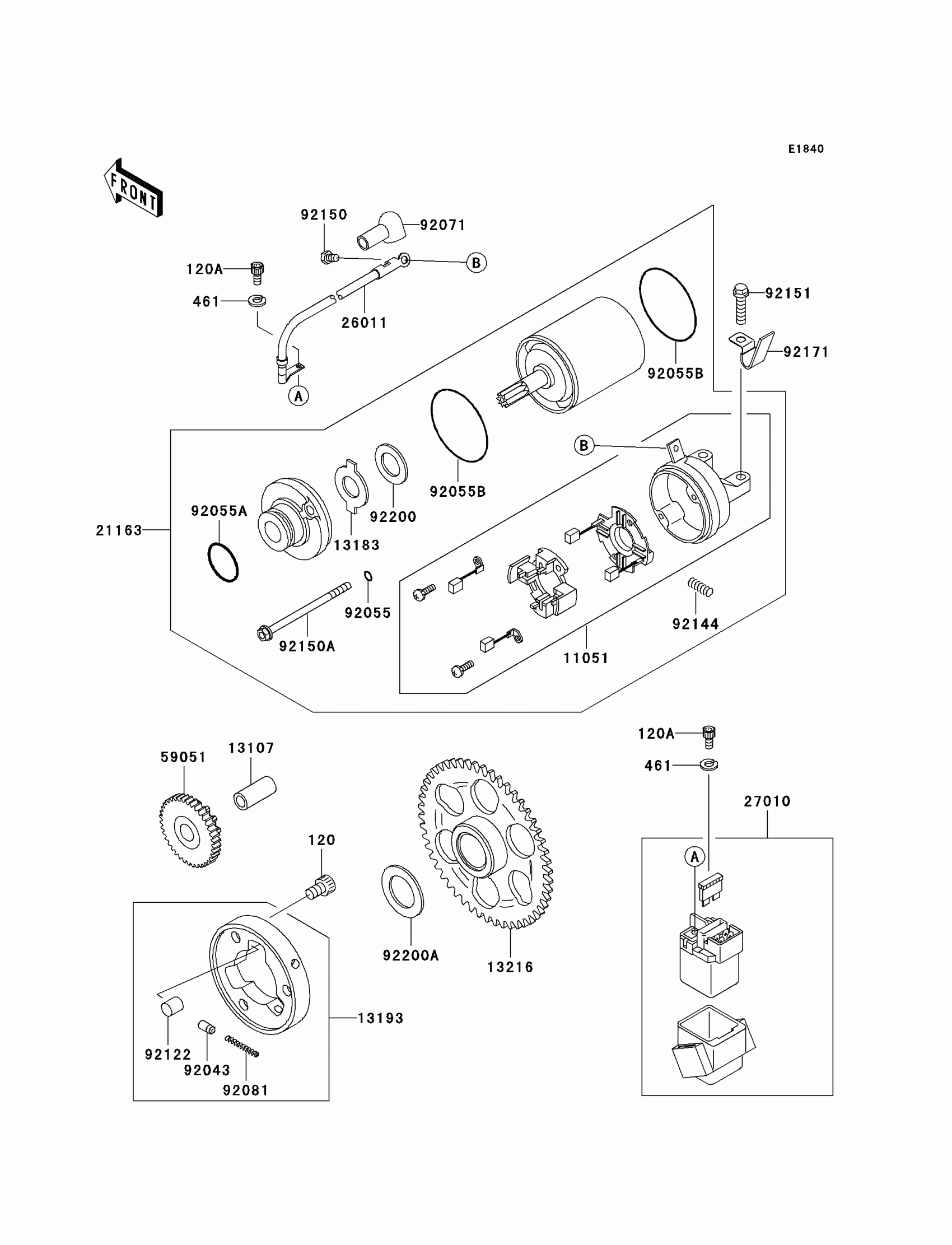

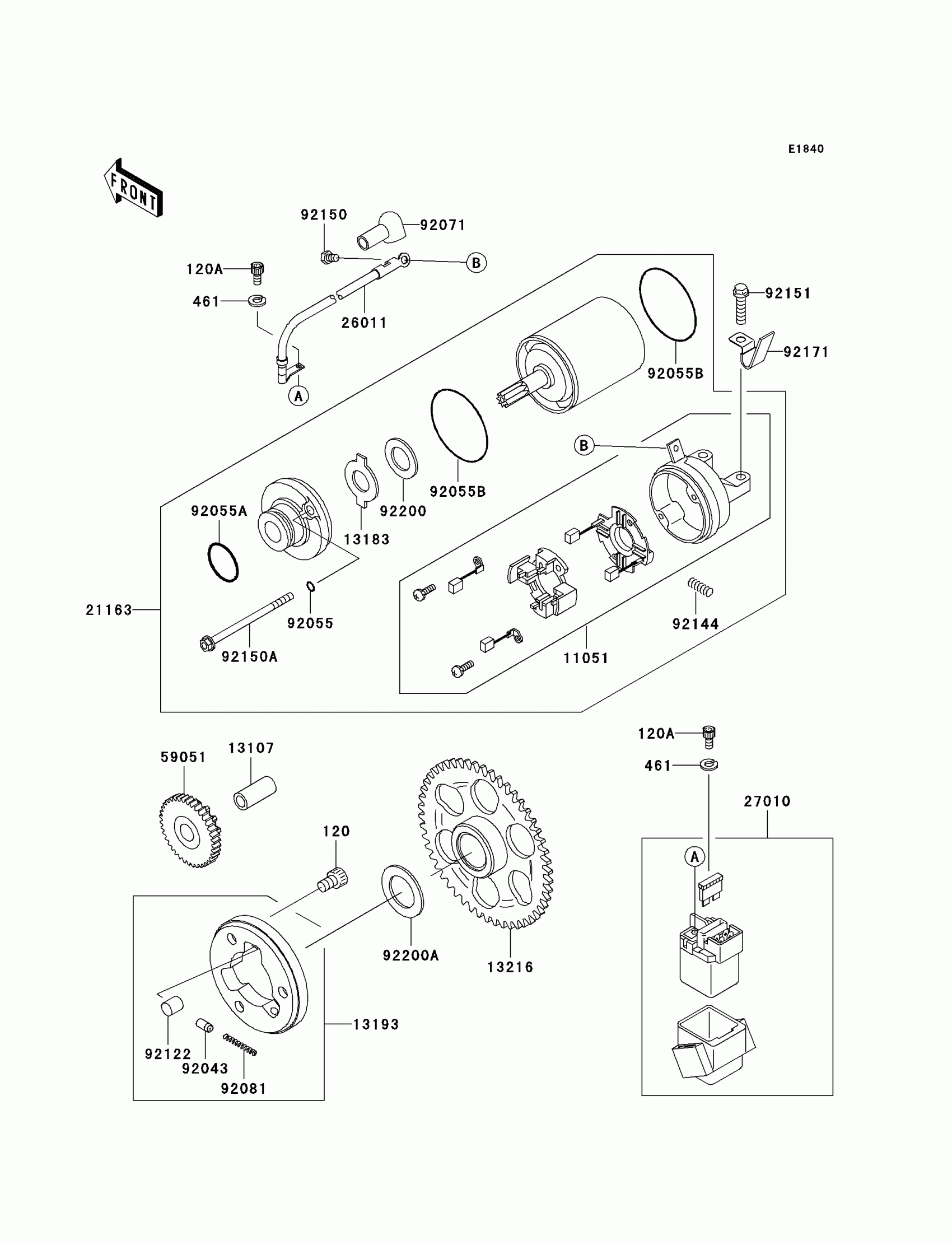

2005 Kawasaki ZZR600 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR600 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X12

120P0812

1
Out of stock

120A

BOLT-SOCKET,5X10

120S0510

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

11051

1

$162.44

In stock

13107

SHAFT,7.8X12X26.5

13107-1176

1

$10.85

In stock

13183

PLATE

13183-1460

1

$12.32

In stock

13193

CLUTCH-ASSY-ONEWAY

13193-1066

1
Out of stock

13216

1

$177.60

In stock

21163

STARTER-ELECTRIC

21163-1304

1

$666.68

In stock

26011

WIRE-LEAD,STARTER

26011-1694

1

$80.49

In stock

27010

SWITCH

27010-1380

1

$146.63

In stock

59051

1

$82.35

In stock

92043

PIN

92043-132

1

$4.93

In stock

92055

RING-O,4.5MM

92055-1261

1

$2.29

In stock

92055A

RING-O,24.4X3.1

92055-1262

1

$11.90

In stock

92055B

RING-O

92055-1455

1

$9.47

In stock

92071

GROMMET,TERMINAL

92071-1182

1

$12.85

In stock

92081

SPRING,COIL

92081-159

1

$2.83

In stock

92122

ROLLER

92122-006

1

$4.93

In stock

92144

SPRING,BRUSH

92144-1423

1

$3.59

In stock

92150

BOLT

92150-1305

1

$5.14

In stock

92150A

BOLT

92150-1326

1

$21.34

In stock

92151

1

$2.06

In stock

92171

CLAMP

92171-1238

1

$4.93

In stock

92200

WASHER

92200-1019

1
Out of stock

92200A

WASHER,27.5X38X1.0

92200-1393

1
Out of stock
