2005 Kawasaki ZZR600 Chassis Electrical Equipment Diagram

← All diagrams

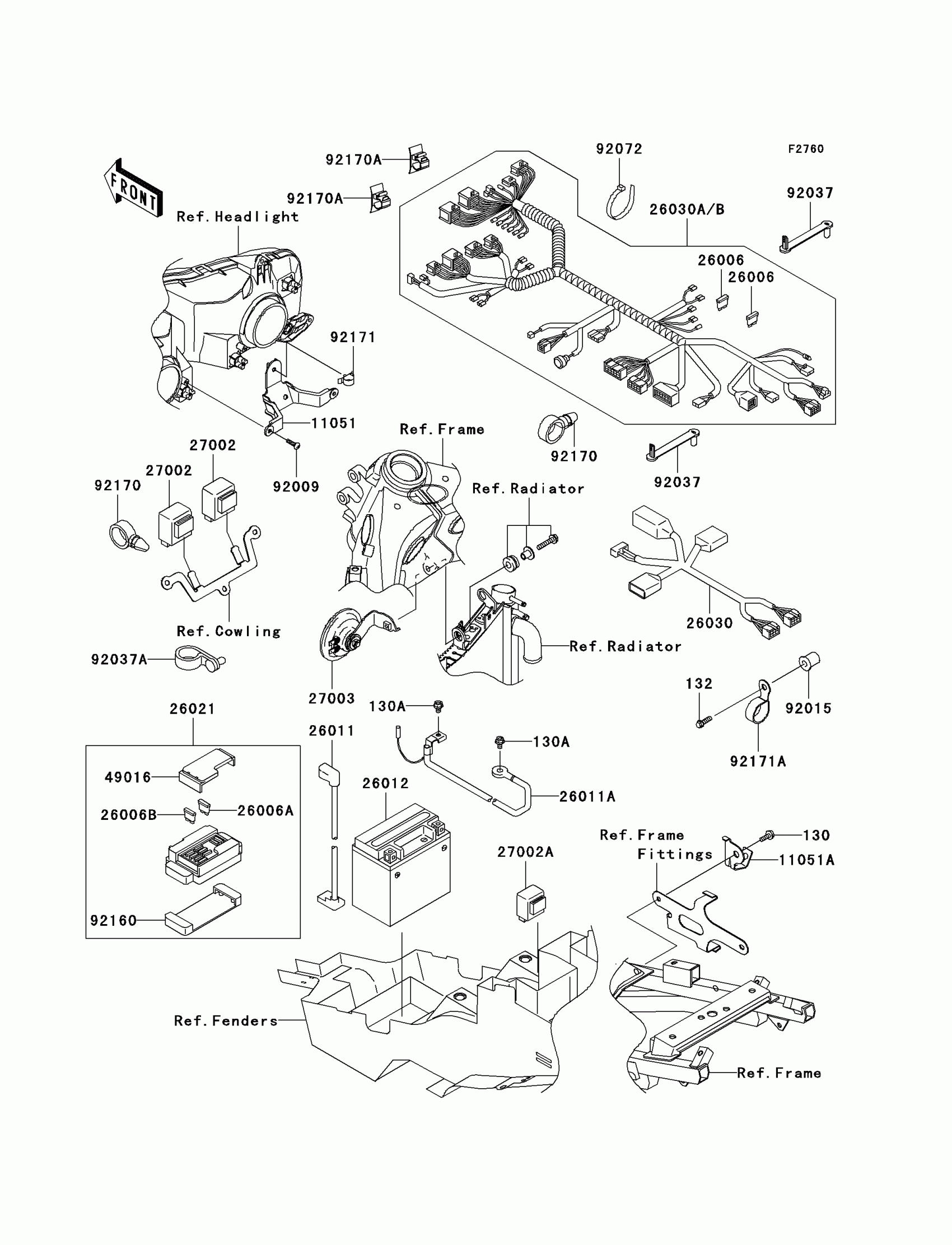

Find the part on the Chassis Electrical Equipment diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR600 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,6X10

130V0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

11051

BRACKET,HEAD LAMP

11051-1827

1

$16.10

In stock

11051A

BRACKET,FUSE

11051-1915

1

$9.53

In stock

26006

1

$4.39

In stock

26006A

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006B

FUSE,10A-R

26006-1068

1
Out of stock

26011

1

$40.43

In stock

26011A

1

$40.43

In stock

26012

1

$145.53

In stock

26021

JUNCTION BOX

26021-1096

1

$160.83

In stock

26030

HARNESS,FR

26030-1779

1
Out of stock

27002

RELAY-ASSY

27002-1086

1

$33.76

In stock

27002A

1

$73.74

In stock

27003

HORN

27003-1421

1

$91.33

In stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92015

NUT

92015-1700

1

$6.82

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92160

DAMPER,JUNCTION BOX

92160-1650

1

$12.78

In stock

92170

CLAMP

92170-1067

1

$5.93

In stock

92170A

CLAMP,HARNESS

92170-1494

1

$6.54

In stock

92171

CLAMP,HARNESS

92171-1269

1

$4.27

In stock

92171A

CLAMP

92171-1279

1

$8.93

In stock

26030A

HARNESS,MAIN

26030-1827

1

$328.64

In stock

26030B

HARNESS,MAIN

26030-1828

1

$332.56

In stock
