2005 Kawasaki ZZR600 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

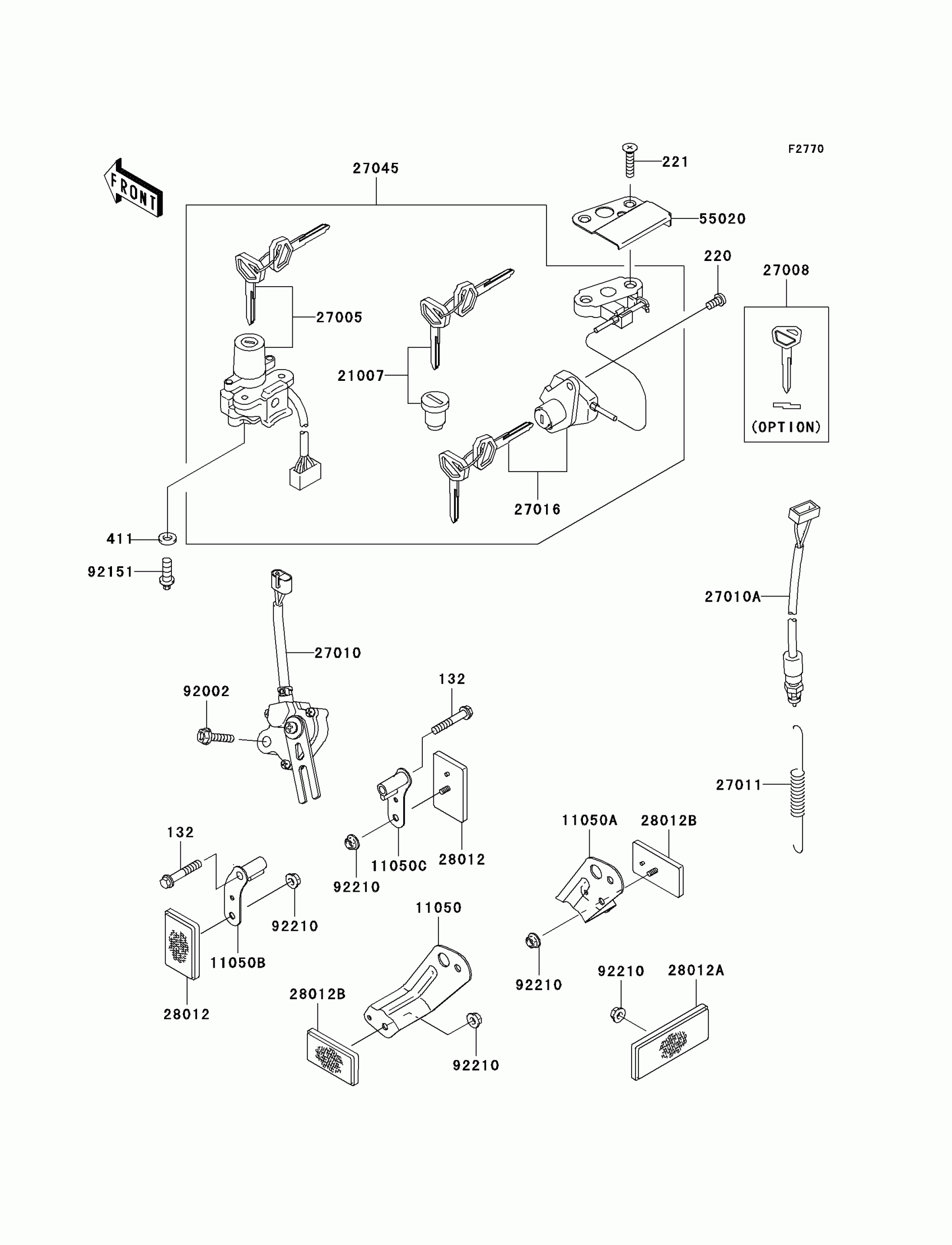

2005 Kawasaki ZZR600 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock

220

SCREW-PAN-CROS,6X12

220C0612

1
Out of stock

221

SCREW-CSK-CROS,6X28

221B0628

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock

11050

1

$12.85

In stock

11050A

1

$12.85

In stock

11050B

1

$6.90

In stock

11050C

1

$6.90

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1

$60.27

In stock

27005

1

$237.40

In stock

27008

KEY-LOCK,BLANK

27008-1170

1

$14.13

In stock

27010

SWITCH,SIDE STAND

27010-1463

1

$120.30

In stock

27010A

SWITCH,REAR BRAKE

27010-1479

1

$27.22

In stock

27011

1

$9.73

In stock

27016

LOCK-ASSY,SEAT

27016-5241

1
Out of stock

27045

SWITCH-ASSY

27045-5067

1

$483.62

In stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

55020

GUARD,SEAT LOCK

55020-1483

1

$15.88

In stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92151

BOLT,TORX,6X16

92151-1911

1

$2.15

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
