2004 Kawasaki ZZR600 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2004 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

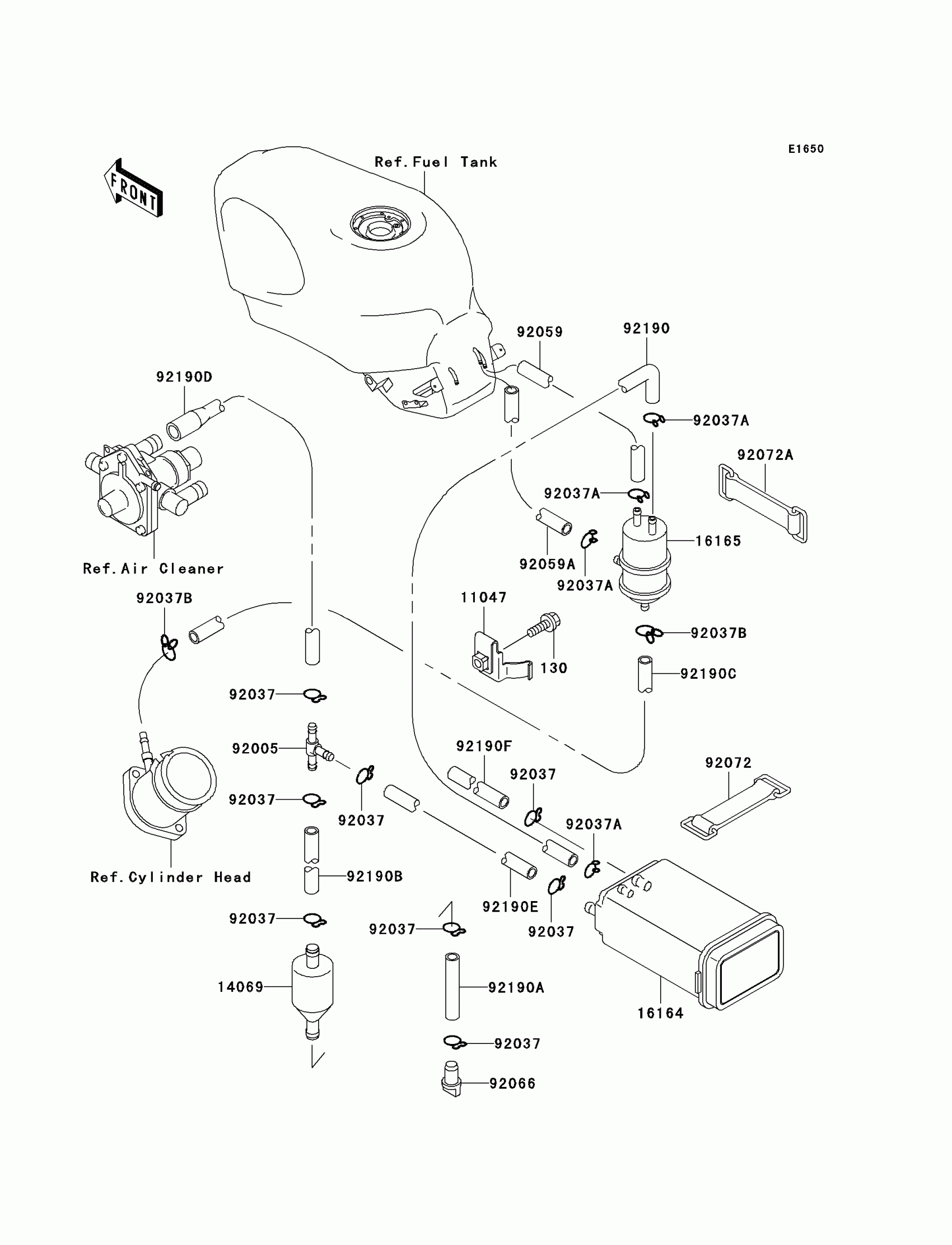

2004 Kawasaki ZZR600 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

11047

BRACKET,CANISTER

11047-1990

1

$8.78

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

16164

CANISTER

16164-1052

1

$134.03

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92005

FITTING,T-TYPE

92005-1119

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037B

CLAMP

92037-1712

1

$3.97

In stock

92059

TUBE,5X10X170,BLUE

92059-1496

1
Out of stock

92059A

TUBE,5X10X230,RED

92059-1497

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92072

BAND,L=142.1

92072-006

1

$10.11

In stock

92072A

BAND,L=50

92072-1419

1

$12.72

In stock

92190

TUBE,5X10X690,BLUE

92190-1099

1
Out of stock

92190A

TUBE,7X12X45

92190-1200

1

$12.36

In stock

92190B

TUBE,7X12X160

92190-1201

1

$12.36

In stock

92190C

TUBE,4X9X651,WHITE

92190-1440

1

$36.40

In stock

92190D

TUBE,L=569,YELLOW

92190-1441

1

$34.92

In stock

92190E

1

$41.92

In stock

92190F

1

$41.92

In stock
