2005 Kawasaki ZZR600 (Canada Only) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

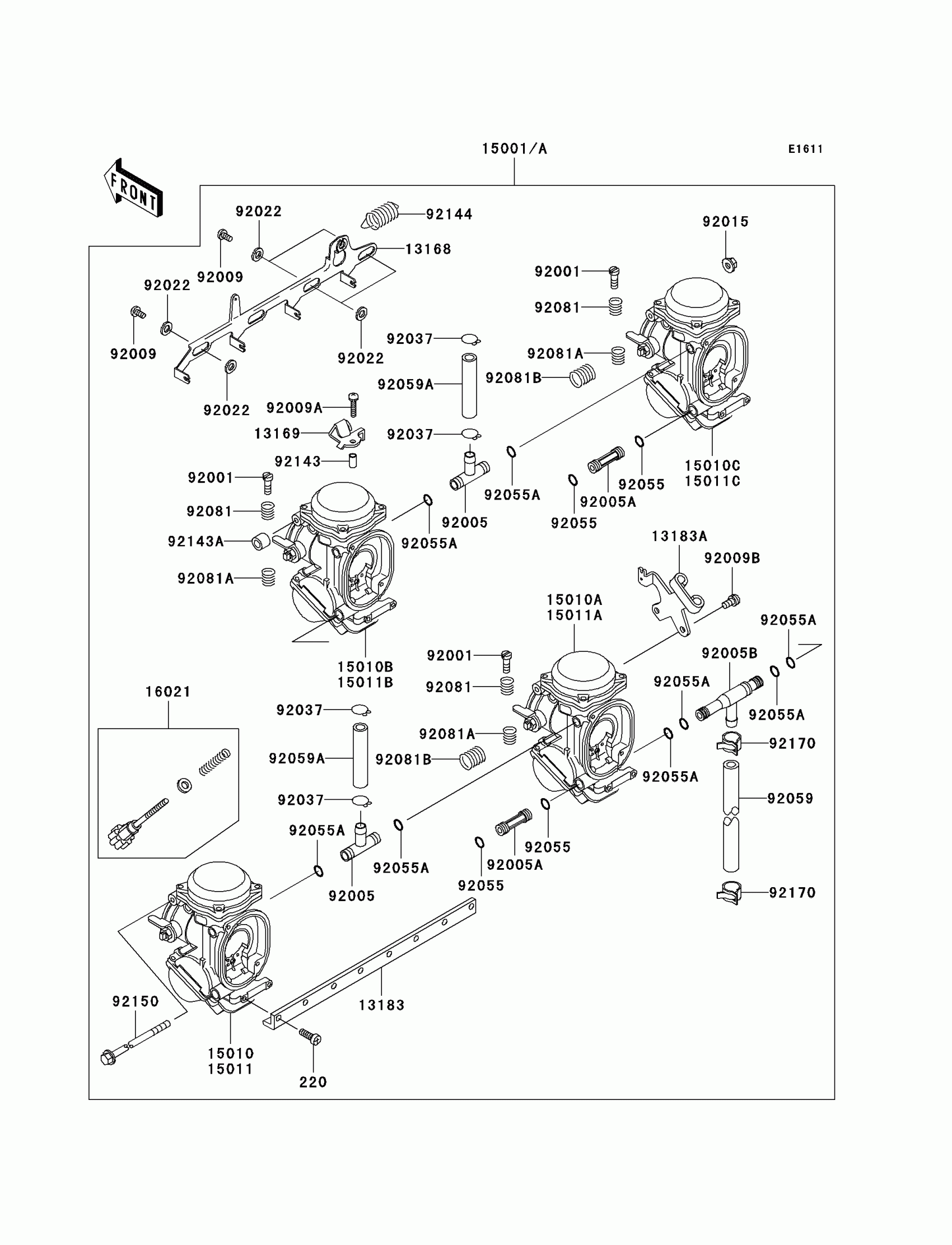

2005 Kawasaki ZZR600 (Canada Only) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,STARTER

13168-1462

1
Out of stock

13169

PLATE,STARTER CABLE

13169-1965

1
Out of stock

13183

PLATE,CARBURETOR STAY

13183-1608

1
Out of stock

13183A

PLATE,THROTTLE CABLE

13183-1610

1
Out of stock

15001

CARBURETOR-ASSY

15001-1797

1
Out of stock

15011

CARBURETOR,LH,OUTSIDE

15011-1139

1
Out of stock

15011A

CARBURETOR,LH,INSIDE

15011-1140

1
Out of stock

15011B

CARBURETOR,RH,INSIDE

15011-1141

1
Out of stock

15011C

CARBURETOR,RH,OUTSIDE

15011-1142

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1160

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005

FITTING,T-TYPE

92005-1125

1
Out of stock

92005A

FITTING

92005-1157

1
Out of stock

92005B

FITTING,T-TYPE

92005-1214

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,4X18

92009-1446

1
Out of stock

92009B

SCREW

92009-1597

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

1
Out of stock

92037

CLAMP,TUBE

92037-1531

1
Out of stock

92055

RING-O

92055-1004

1
Out of stock

92055A

RING-O

92055-1223

1
Out of stock

92059

TUBE,7.3X12.5X240

92059-1487

1
Out of stock

92059A

TUBE,7X11X45

92059-1738

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92143

COLLAR,4X5.2X9.6

92143-1265

1
Out of stock

92143A

COLLAR

92143-1438

1
Out of stock

92144

SPRING

92144-1540

1
Out of stock

92150

BOLT

92150-1416

1
Out of stock

92170

CLAMP,TUBE

92170-1051

1
Out of stock
