2005 Kawasaki ZZR600 (Canada Only) Air Duct Diagram

← All diagrams

Find the part on the Air Duct diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

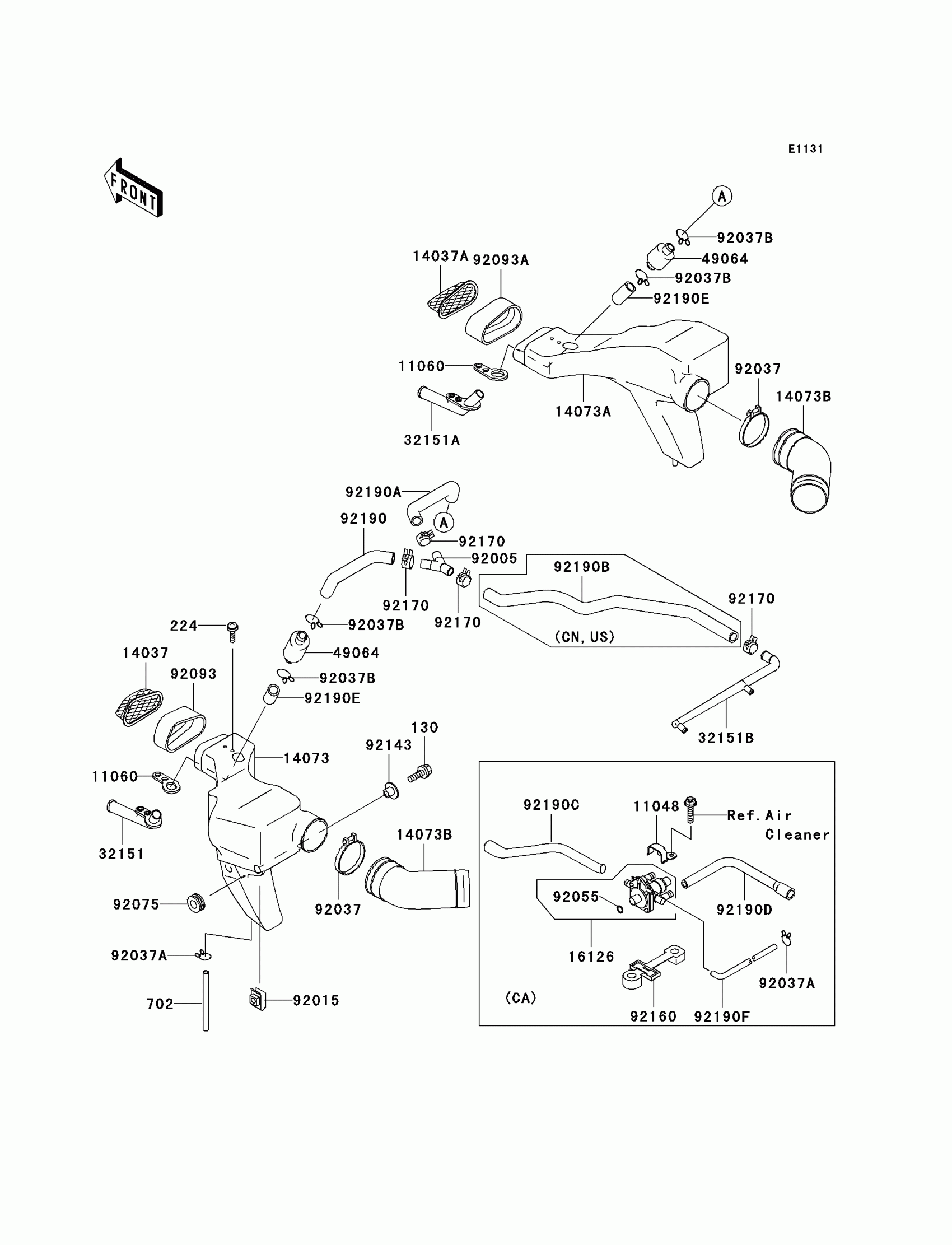

2005 Kawasaki ZZR600 (Canada Only) Air Duct Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET

11060-1343

1
Out of stock

14037

SCREEN,AIR DUCT,LH

14037-1166

1
Out of stock

14037A

SCREEN,AIR DUCT,RH

14037-1167

1
Out of stock

14073

DUCT,AIR INTAKE,LH

14073-1549

1
Out of stock

14073A

DUCT,AIR INTAKE,RH

14073-1550

1
Out of stock

14073B

DUCT,DUCT-AIR FILTER

14073-1574

1
Out of stock

32151

PIPE,LH

32151-1462

1
Out of stock

32151A

PIPE,RH

32151-1463

1
Out of stock

32151B

PIPE

32151-1540

1
Out of stock

49064

FILTER-AIR

49064-1055

1
Out of stock

92005

FITTING,Y-TIPE

92005-1250

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92037

CLAMP,AIR FILTER

92037-1409

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92037B

CLAMP,TUBE

92037-213

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92093

SEAL,LH

92093-1347

1
Out of stock

92093A

SEAL,RH

92093-1348

1
Out of stock

92143

COLLAR,L=9.6

92143-1016

1
Out of stock

92170

CLAMP

92170-1060

1
Out of stock

92190

TUBE,14X20X158,LH

92190-1413

1
Out of stock

92190A

TUBE,14X20X158,RH

92190-1414

1
Out of stock

92190B

TUBE,14X20X525

92190-1415

1
Out of stock

92190E

TUBE,14X20X28

92190-1429

1
Out of stock

130

BOLT-FLANGED,6X25

130H0625

1
Out of stock

224

SCREW-PAN-WP-CROS,5X12

224C0512

1
Out of stock

702

TUBE-RUBBER,7X10X120

702A07120

1
Out of stock
