2005 Kawasaki ZZR600 (Canada Only) Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

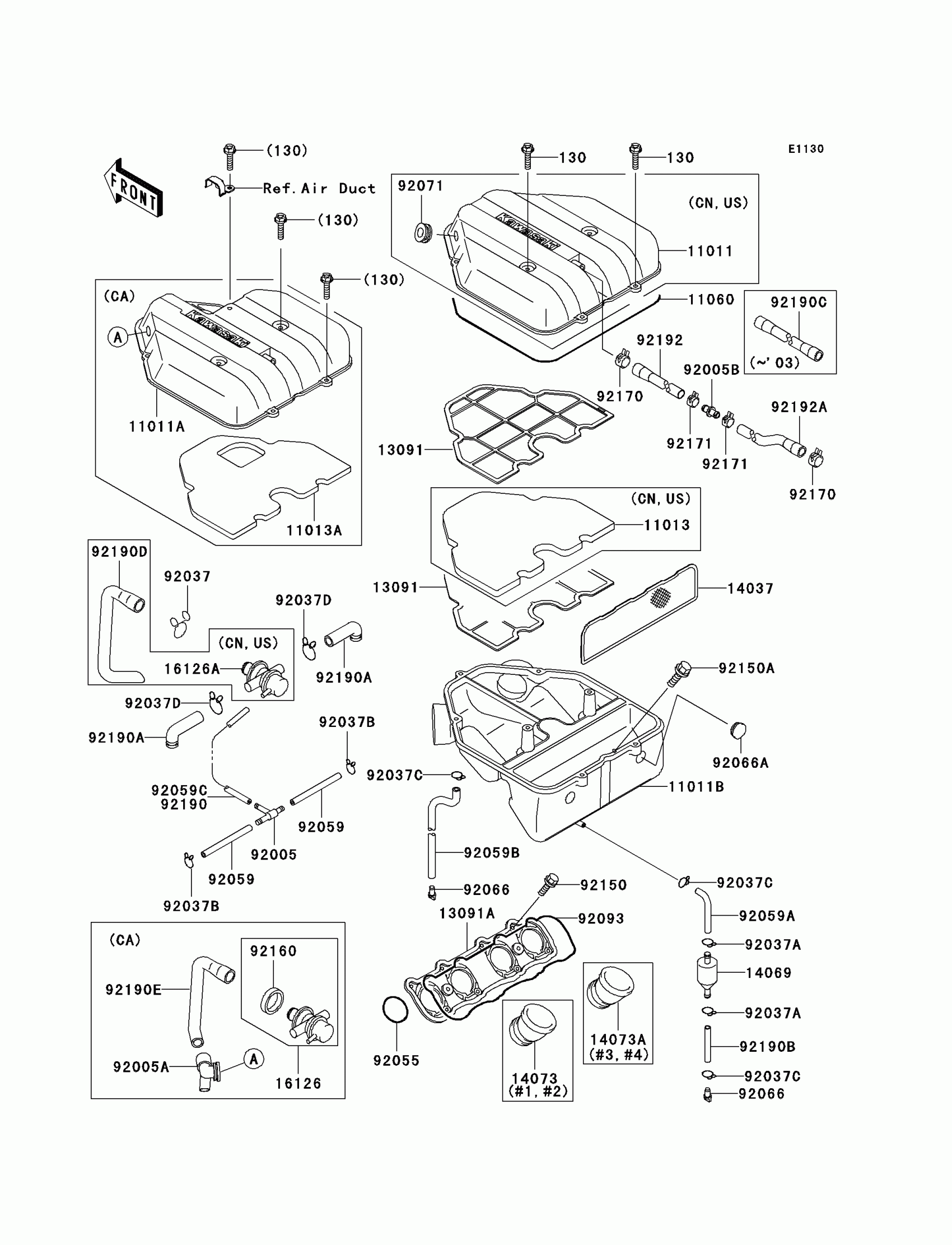

2005 Kawasaki ZZR600 (Canada Only) Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER,UPP

11011-1395

1
Out of stock

11011B

CASE-AIR FILTER,LWR

11011-1633

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1226

1
Out of stock

11060

GASKET,AIR FILTER CASE

11060-1317

1
Out of stock

13091

HOLDER,ELEMENT

13091-1815

1
Out of stock

13091A

HOLDER,DUCT

13091-1816

1
Out of stock

14037

SCREEN,AIR FILTER

14037-1165

1
Out of stock

14069

BREATHER

14069-1051

1
Out of stock

14073

DUCT,CARBURETOR,#1

14073-1562

1
Out of stock

14073A

DUCT,CARBURETOR,#3

14073-1563

1
Out of stock

16126A

VALVE,AIR SWITCH

16126-1277

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92005B

FITTING

92005-1379

1
Out of stock

92037

CLAMP,TUBE

92037-1076

1
Out of stock

92037A

CLAMP,12.5MM

92037-1271

1
Out of stock

92037B

CLAMP

92037-1712

1
Out of stock

92037C

CLAMP,TUBE

92037-1972

1
Out of stock

92037D

CLAMP,TUBE

92037-213

1
Out of stock

92055

RING-O,67.7X3.1

92055-1434

1
Out of stock

92059

TUBE,4X9X80

92059-1365

1
Out of stock

92059A

TUBE,7X12X230

92059-1750

1
Out of stock

92059B

TUBE,7X12X435,GREEN

92059-1761

1
Out of stock

92059C

TUBE,4X9X136

92059-1956

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92066A

PLUG

92066-1389

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1028

1
Out of stock

92093

SEAL,DUCT HOLDER

92093-1346

1
Out of stock

92150

BOLT,5X12

92150-1661

1
Out of stock

130

BOLT-FLANGED,6X25

130H0625

1
Out of stock

92150A

BOLT,6X20

92150-1662

1
Out of stock

92170

CLAMP

92170-1060

1
Out of stock

92171

CLAMP

92171-0332

1
Out of stock

92190A

TUBE,AIR SWITCH VALVE

92190-1168

1
Out of stock

92190B

TUBE,7X12X45

92190-1200

1
Out of stock

92190D

TUBE,VALVE-AIR FILTER

92190-1416

1
Out of stock

92192

TUBE

92192-0118

1
Out of stock

92192A

TUBE

92192-0119

1
Out of stock
