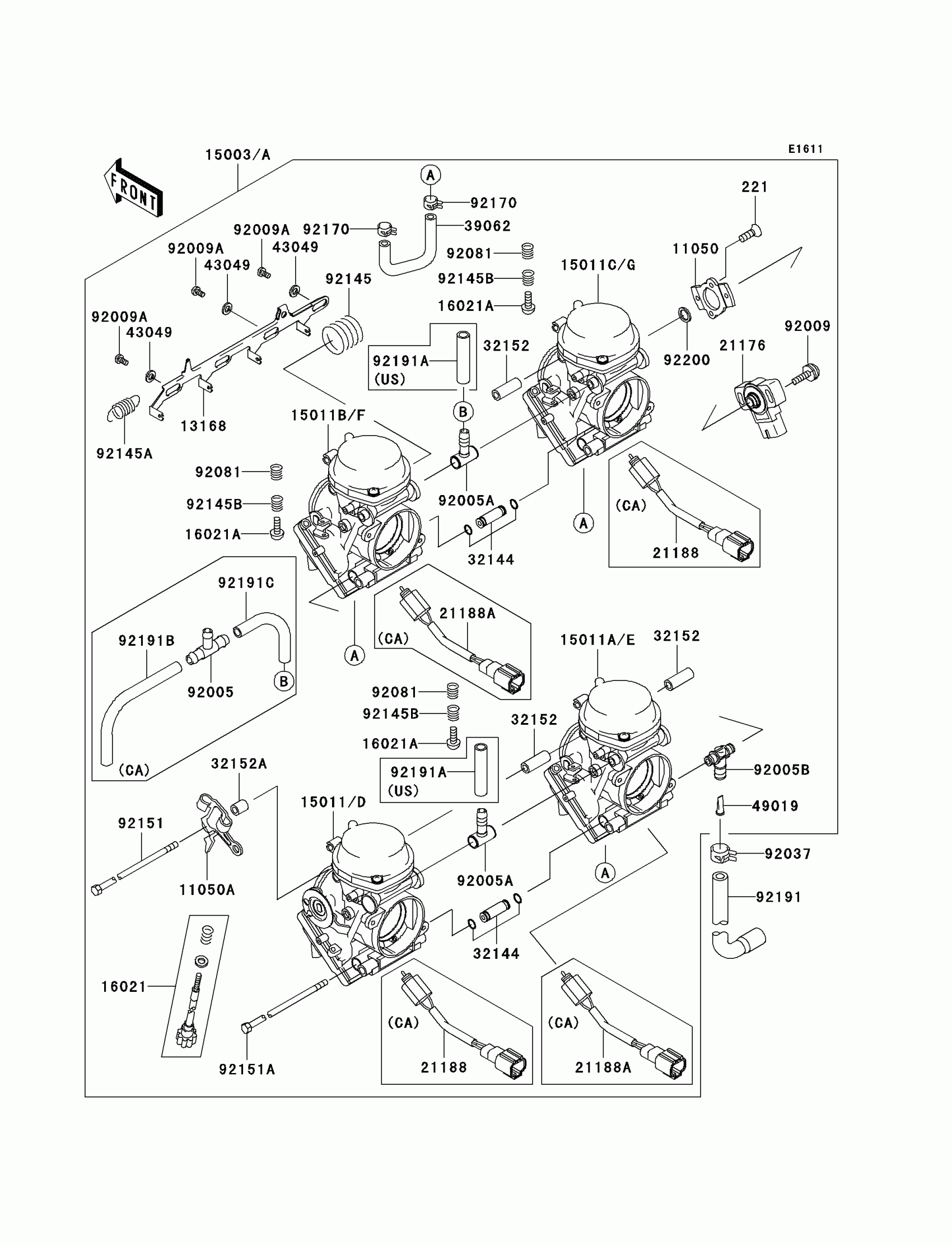

Find the part on the Carburetor diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR600 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11050

BRACKET,SENSOR

11050-1919

1

$17.81

In stock

11050A

1

$47.71

In stock

13168

LEVER,STARTER

13168-1653

1

$123.86

In stock

16021

SCREW-THROTTLE STOP

16021-1231

1

$57.85

In stock

16021A

1

$4.42

In stock

21176

SENSOR

21176-1083

1

$249.26

In stock

32144

PIPE-ASSY

32144-1007

1

$37.49

In stock

32152

PIPE

32152-1793

1

$30.45

In stock

32152A

PIPE

32152-1794

1

$37.49

In stock

39062

HOSE-COOLING

39062-1781

1

$24.85

In stock

43049

1

$2.44

In stock

49019

FILTER-FUEL

49019-1085

1

$5.31

In stock

92005A

FITTING

92005-1353

1
Out of stock

92005B

FITTING

92005-1354

1
Out of stock

92009

SCREW,SENSOR

92009-1855

1
Out of stock

92009A

SCREW,STARTER LEVER

92009-1872

1
Out of stock

221

1

$0.97

In stock

92037

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92081

SPRING,THROTTLE ADJUST SCREW

92081-2008

1
Out of stock

92145

1

$8.34

In stock

92145A

SPRING,TENSION

92145-1180

1

$17.49

In stock

92145B

1

$3.15

In stock

92151

BOLT,CARBURETOR,UPP

92151-1404

1
Out of stock

92151A

BOLT,CARBURETOR,LWR

92151-1405

1

$3.73

In stock

92170

CLAMP

92170-1939

1

$6.64

In stock

92191

TUBE,FUEL

92191-1253

1

$10.03

In stock

92200

WASHER,SENSOR

92200-1435

1
Out of stock

15003

CARBURETOR-ASSY

15003-1549

1

$1,886.80

In stock

15003A

CARBURETOR-ASSY

15003-1551

1

$2,159.30

In stock

15011

CARBURETOR,LH,OUTSIDE

15011-1777

1
Out of stock

15011A

1

$595.71

In stock

15011B

CARBURETOR,RH,INSIDE

15011-1779

1
Out of stock

15011C

1

$681.40

In stock

15011D

CARBURETOR,LH,OUTSIDE

15011-1781

1
Out of stock

15011E

CARBURETOR,LH,INSIDE

15011-1782

1
Out of stock

15011F

CARBURETOR,RH,INSIDE

15011-1783

1
Out of stock

15011G

CARBURETOR,RH,OUTSIDE

15011-1784

1
Out of stock

21188

1

$180.43

In stock

21188A

1

$159.60

In stock

92005

FITTING

92005-1304

1
Out of stock

92191A

TUBE

92191-1277

1

$6.80

In stock

92191B

TUBE

92191-1278

1
Out of stock

92191C

TUBE

92191-1279

1
Out of stock
