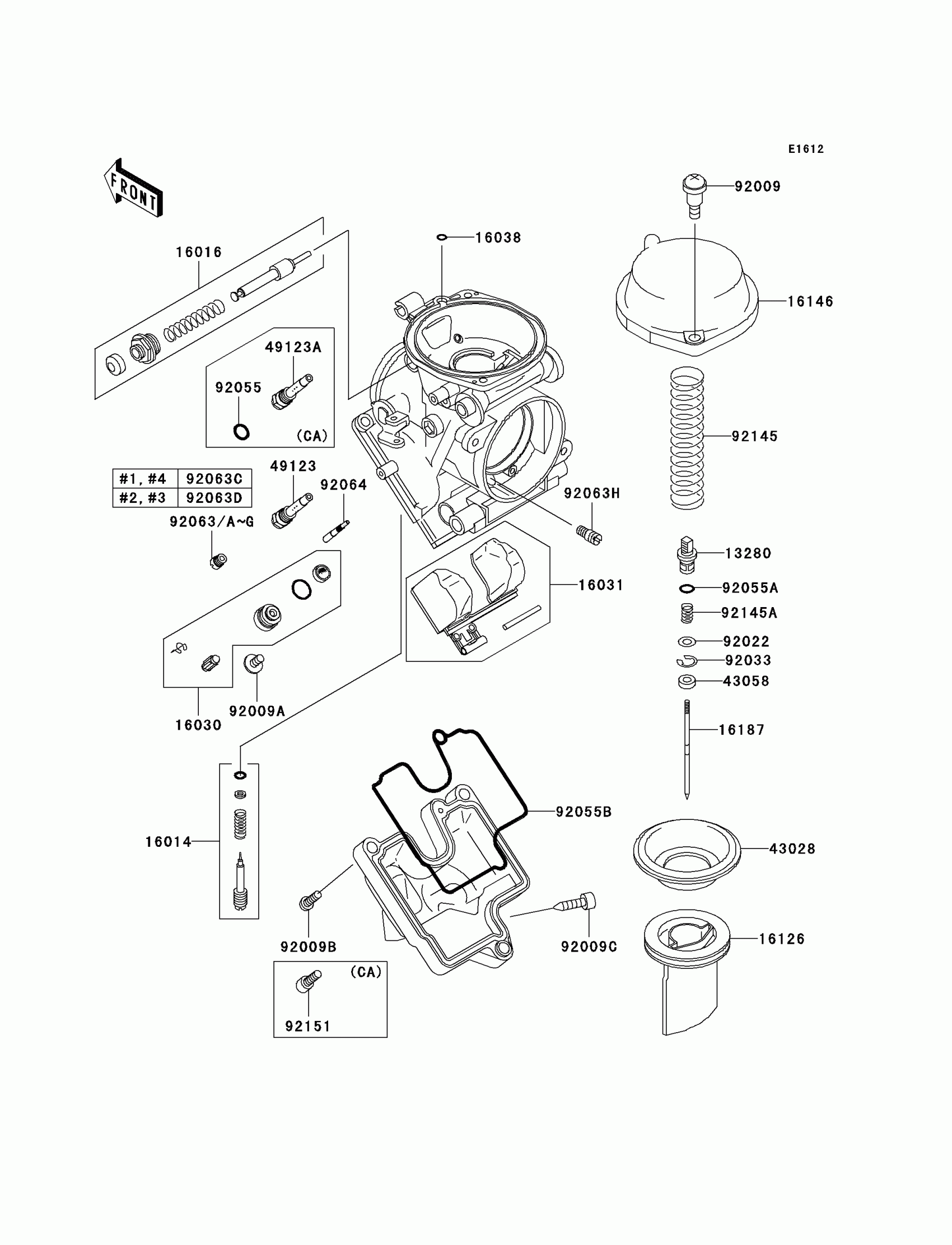

Kawasaki ZZR600 Carburetor Parts Diagram

#

Description
Price

13280

HOLDER

13280-1095

$35.51

16014

SCREW-PILOT AIR

16014-1100

$25.83

16016

PLUNGER,STARTER

16016-1107

$48.40

16030

VALVE-FLOAT,#1.5

16030-1088

$63.37

16031

FLOAT

16031-1096

Unavailable

16038

GASKET,"O"RING

16038-022

$5.61

16126

VALVE,VACUUM

16126-1394

$159.24

16146

COVER-ASSY,MIXING

16146-1197

$77.98

16187

NEEDLE-JET,5EI10

16187-1135

$39.00

43028

DIAPHRAGM,VACUUM VALVE

43028-1086

$66.47

43058

RING

43058-1094

$3.58

92009

SCREW,MIXING COVER

92009-1850

$2.28

92009A

SCREW,FLOAT VALVE

92009-1853

$3.31

92009C

SCREW,DRAIN

92009-1937

$15.73

92022

WASHER,JET NEEDLE

92022-1123

$8.75

92033

RING-SNAP

92033-1299

$2.24

92055A

"0" RING,DRAIN PLUG

92055-1093

$7.49

92055B

RING-O,FLOAT CHAMBER

92055-1588

$10.29

92063

JET-MAIN,#A147.5

92063-1438

Unavailable

92063A

JET-MAIN,#A150

92063-1440

Unavailable

92063B

JET-MAIN,#A152.5

92063-1441

Unavailable

92063C

JET-MAIN,#A155

92063-1442

$15.34

92063D

JET-MAIN,#A157.5

92063-1443

$15.34

92063E

JET-MAIN,#A160

92063-1455

Unavailable

92063F

JET-MAIN,#A162.5

92063-1456

Unavailable

92063G

JET-MAIN,#A165

92063-1457

Unavailable

92063H

JET-MAIN,#A125

92063-1471

$15.34

92064

JET-PILOT,#12.5

92064-1195

$15.87

92145

SPRING,VACUUM VALVE

92145-1182

$10.37

92145A

SPRING

92145-1183

$2.42

49123

HOLDER-MAIN JET

49123-1051

$38.01

49123A

HOLDER-MAIN JET

49123-1052

$33.58

92009B

SCREW,FLOAT CHAMBER

92009-1854

$1.51

92055

RING-O

92055-1084

$3.38

92151

BOLT,SOCKET,FLOAT CHAMBER

92151-1406

$2.76
