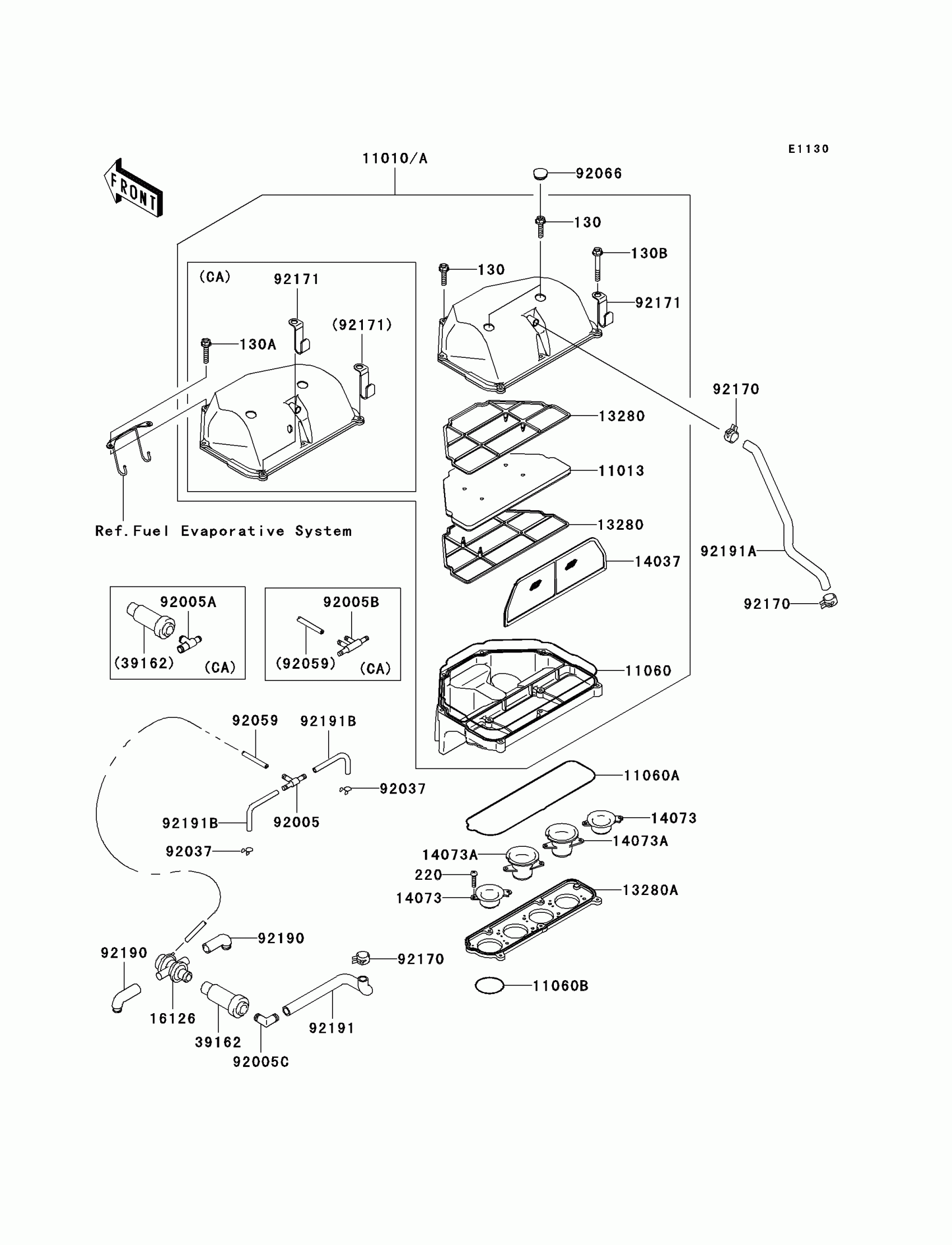

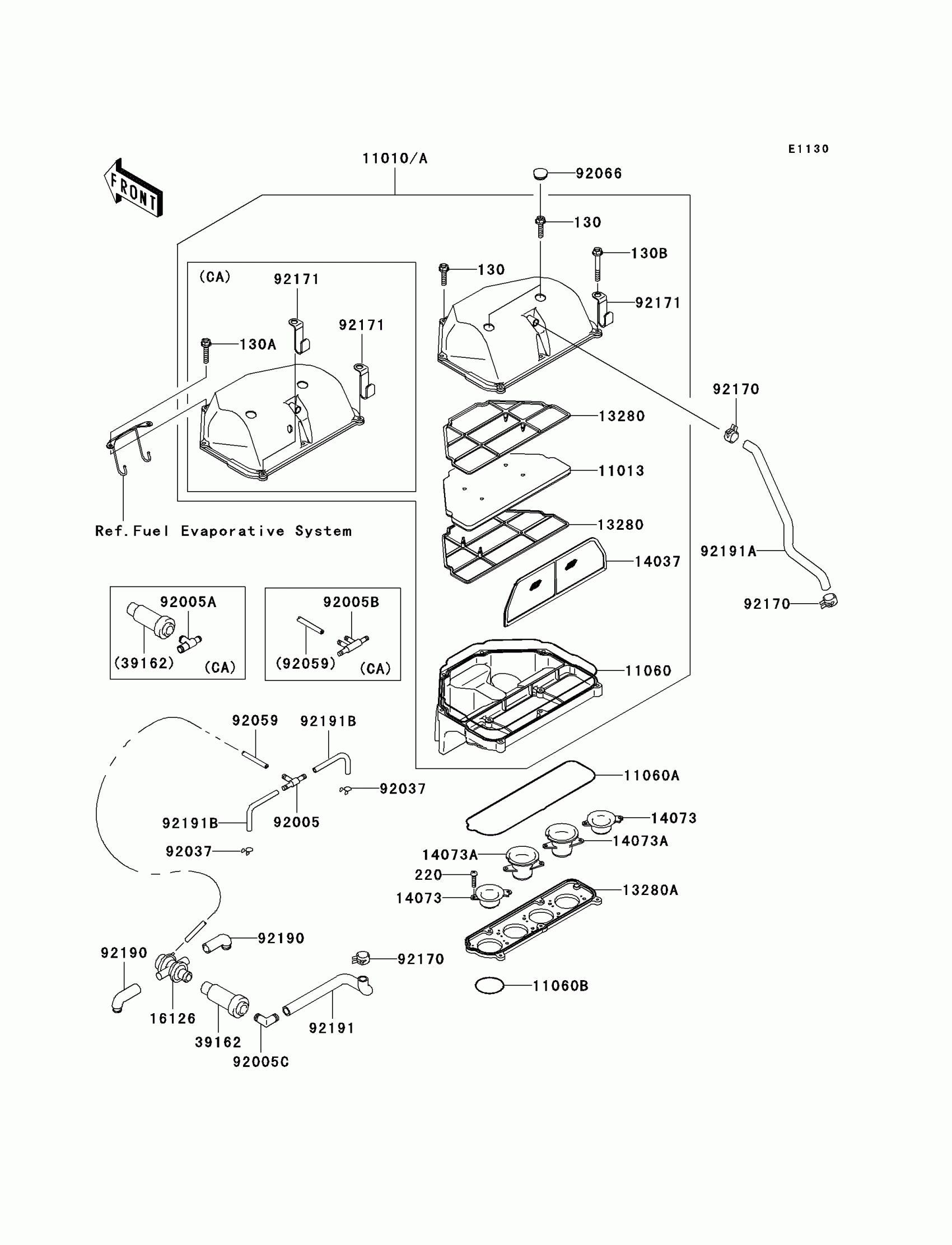

Kawasaki ZZR600 Air Cleaner Diagram

#

Description
Price

130B

BOLT-FLANGED,6X45

130H0645

Unavailable

220

SCREW-PAN-CROSS,5X20

220D0520

Unavailable

11013

ELEMENT-AIR FILTER

11013-1274

$31.03

11060

GASKET,AIR FILTER

11060-1845

$13.85

11060A

GASKET,AIR FILTER

11060-1846

$13.85

11060B

GASKET,CARBURETOR

11060-1847

$8.10

13280

HOLDER,AIR FILTER ELEMENT

13280-1072

$18.56

13280A

HOLDER,AIR FILTER

13280-1203

$79.39

14037

SCREEN,AIR FILTER

14037-1193

$30.51

14073

DUCT,#1

14073-1715

$40.02

14073A

DUCT,#2

14073-1716

$39.32

16126

VALVE,AIR SWITCH

16126-1361

$213.70

39162

SILENCER-INTAKE

39162-1091

$76.23

92037

CLAMP

92037-1712

$3.81

92059

TUBE,FUEL,4X9X140

92059-1230

$14.40

92066

PLUG

92066-1389

$3.25

92170

CLAMP

92170-1060

$7.93

92190

TUBE,AIR FILTER-VALVE

92190-1581

$11.76

92191

TUBE,AIR FILTER-SWITCH

92191-1230

$18.92

92191A

TUBE,BLOWBY

92191-1242

Unavailable

92191B

TUBE

92191-1262

$3.31

130

BOLT-FLANGED,6X25

130H0625

Unavailable

130

BOLT-FLANGED,6X25

130H0625

Unavailable

130A

BOLT-FLANGED,6X30

130H0630

Unavailable

11010

FILTER-ASSY-AIR

11010-1736

$229.09

11010A

FILTER-ASSY-AIR

11010-1737

$213.69

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,T-TYPE

92005-1252

$10.63

92005B

FITTING

92005-1307

$8.71

92005C

FITTING

92005-1309

$11.19

92171

CLAMP

92171-1230

$3.93

92171

CLAMP

92171-1230

$3.93
