2005 Kawasaki ZZR600 Air Duct Diagram

← All diagrams

Find the part on the Air Duct diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

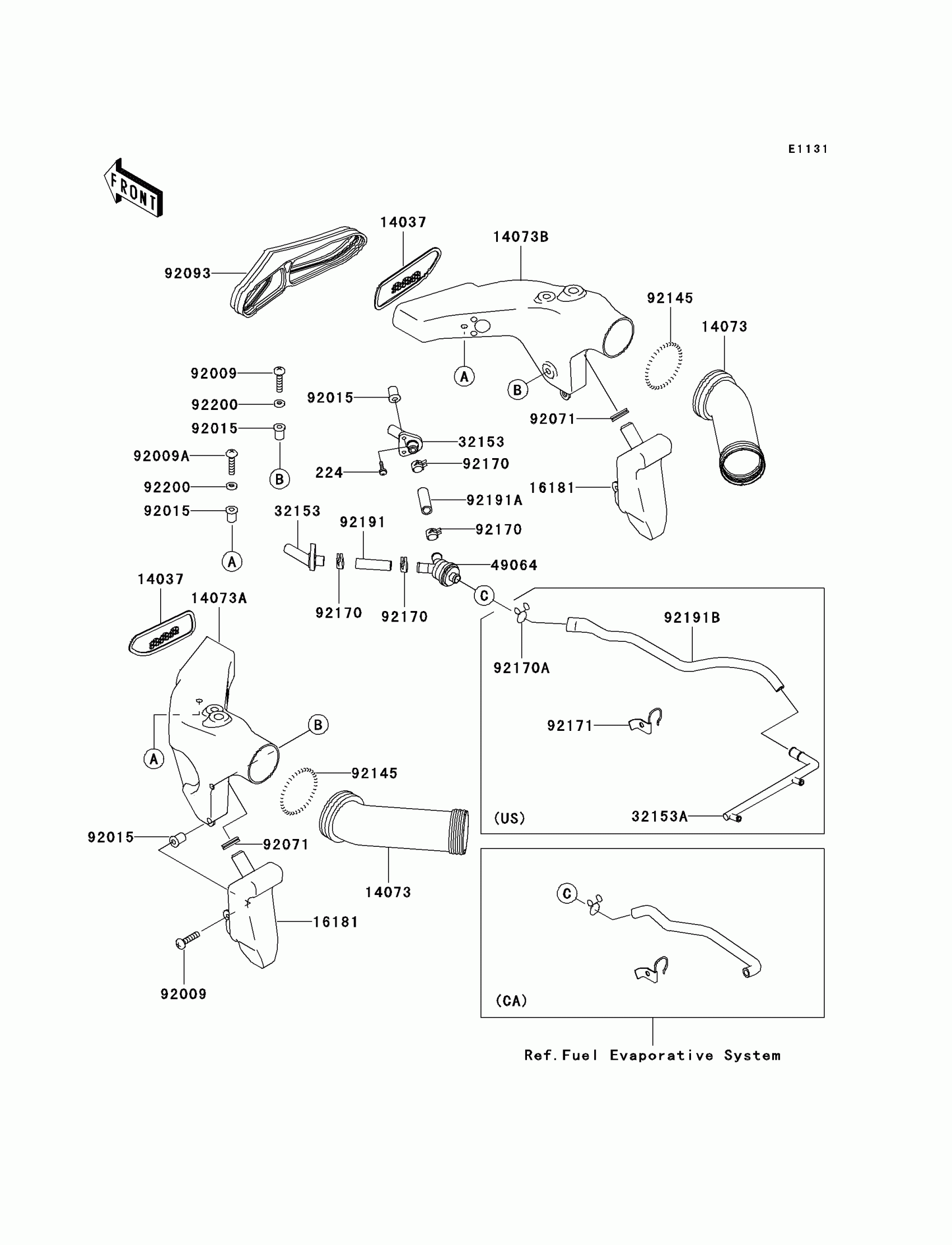

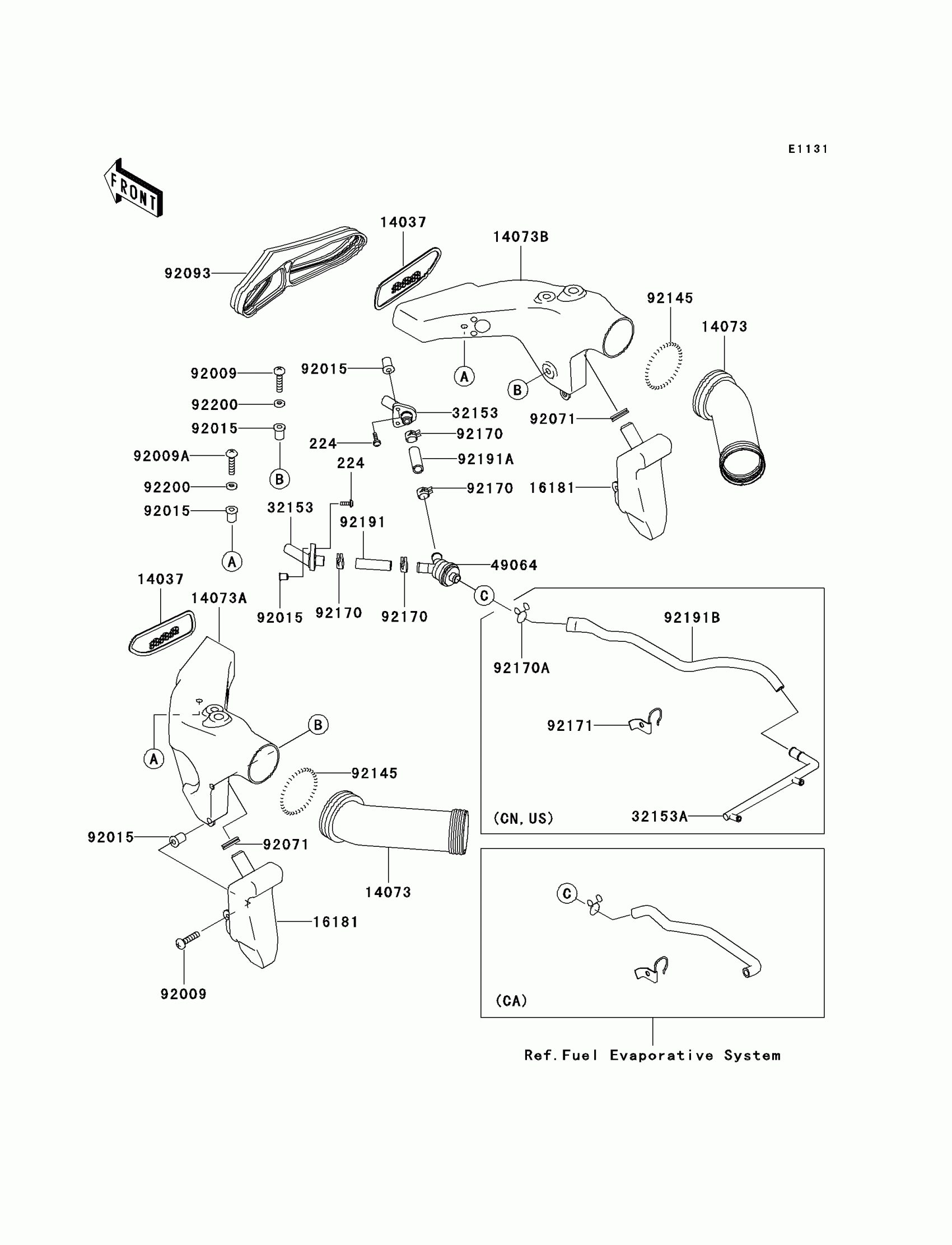

2005 Kawasaki ZZR600 Air Duct Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

1

$3.92

In stock

14037

SCREEN

14037-1270

1

$25.20

In stock

14073

DUCT,INNER

14073-1720

1

$48.66

In stock

14073A

DUCT,LH

14073-1767

1

$126.46

In stock

14073B

DUCT,RH

14073-1768

1

$126.46

In stock

16181

TANK-RESONATOR

16181-1095

1

$42.68

In stock

32153

PIPE

32153-1342

1
Out of stock

49064

FILTER-AIR

49064-1061

1
Out of stock

92009

SCREW,5X16

92009-1909

1
Out of stock

92009A

SCREW,5X20

92009-1934

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92071

GROMMET

92071-1259

1

$5.19

In stock

92093

SEAL

92093-1535

1

$45.98

In stock

92145

SPRING,BOOT

92145-1162

1

$9.48

In stock

92170

CLAMP

92170-1909

1

$3.70

In stock

92191

TUBE,AIR VENT,LH

92191-1500

1

$7.57

In stock

92191A

TUBE,AIR VENT,RH

92191-1501

1

$9.24

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

32153A

PIPE

32153-1344

1
Out of stock

92170A

CLAMP

92170-1997

1

$2.19

In stock

92171

CLAMP

92171-1236

1

$19.37

In stock

92191B

TUBE

92191-1502

1
Out of stock
