2005 Kawasaki ZZR1200 Swingarm Diagram

← All diagrams

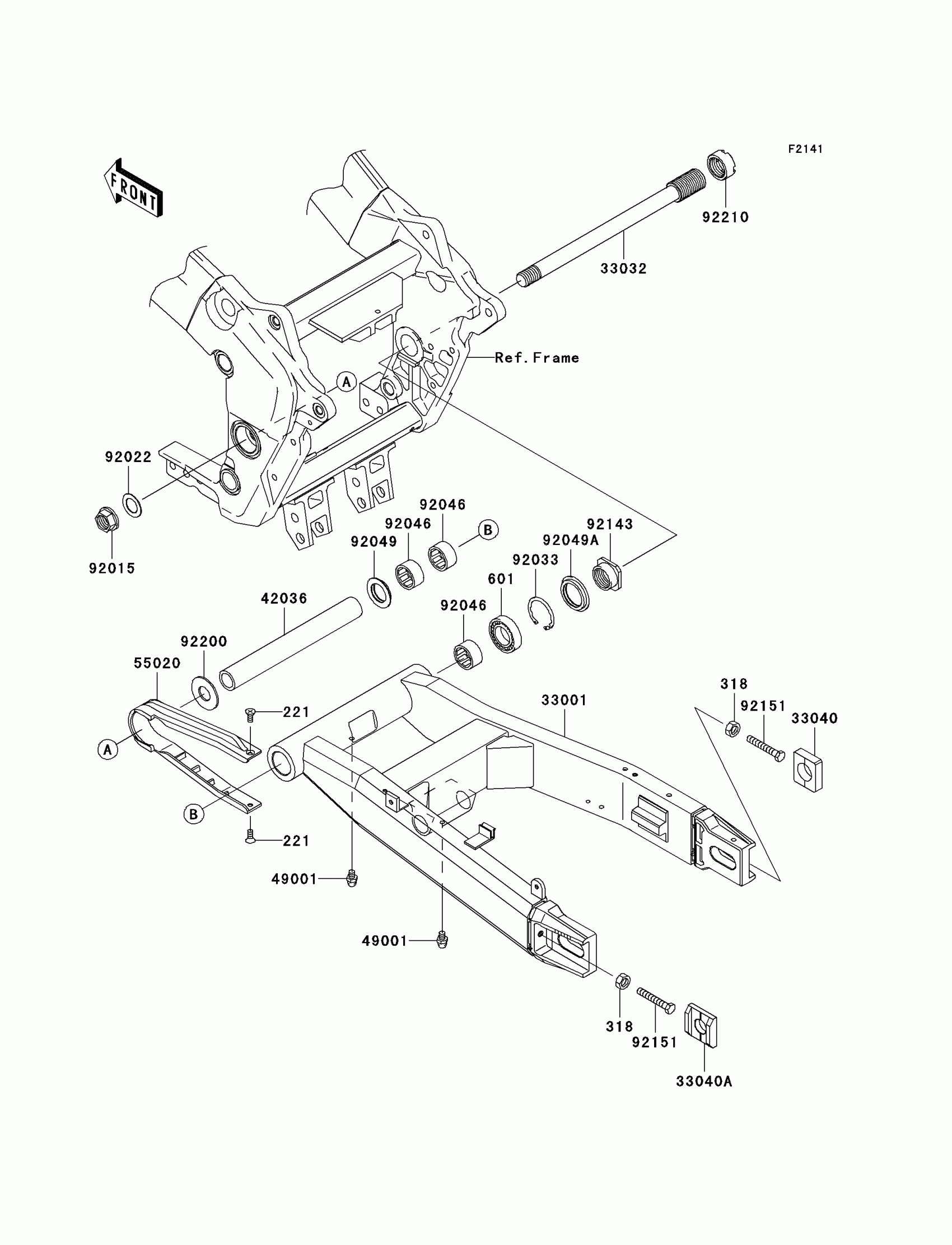

Find the part on the Swingarm diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

SCREW-CSK-CROS,5X8

221C0508

1
Out of stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

601

1

$9.42

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-1624-458

1

$979.54

In stock

33032

SHAFT-SWING ARM

33032-1201

1

$162.80

In stock

33040

ADJUSTER-CHAIN

33040-1109

1

$18.36

In stock

33040A

ADJUSTER-CHAIN

33040-1191

1

$34.76

In stock

42036

1

$80.71

In stock

49001

NIPPLE-GREASE

49001-0001

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1786

1

$72.96

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92022

1

$4.25

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

1
Out of stock

92143

1

$35.97

In stock

92151

BOLT,8X55

92151-1578

1
Out of stock

92200

WASHER,20.3X48X2.3

92200-1167

1
Out of stock

92210

NUT,28X1.0

92210-1347

1
Out of stock
